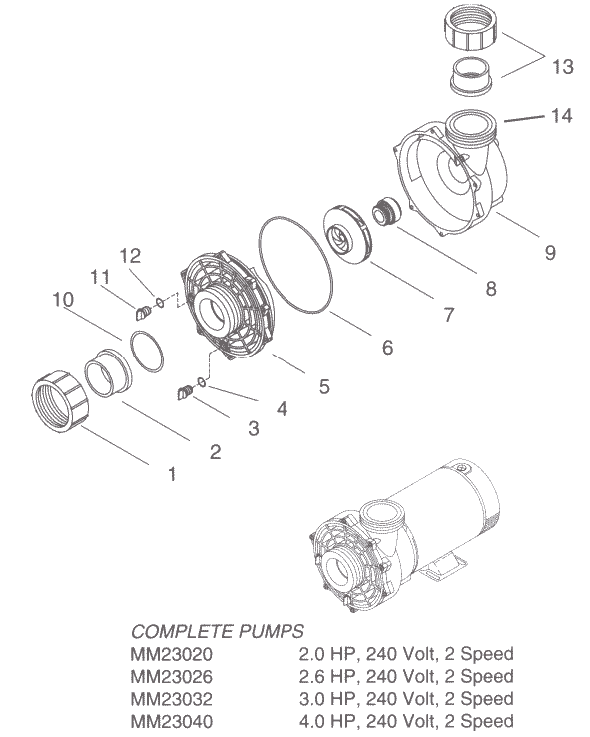

Here is the schematic view you requested:

Category: Spa Pumps and Pump Parts

Manufacturer name: Acura

Model Name: Magnaflo



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	MM23040	Pump,MagnaFlo,4.5HP,230V,2Sp,Acura	Yes	1 Day(s)	$1721.40
-	MM23032	Pump,MagnaFlo,3.25HP,230V,2Sp,Acura	Yes	1 Day(s)	$1485.28
-	MM23026	Pump,MagnaFlo, 3HP,230V,2Sp,Acura	Yes	1 Day(s)	$1516.22
-	MM23020	Pump, 2HP,230V,2Sp	Yes	1 Day(s)	$1297.02
-	1112	Wet End, Magnaflo *Key 3-6,8-10	Yes	1 Day(s)	$439.38
3	796	Pump Drain Plug, Maganaflow, Acura	Yes	1 Day(s)	$56.55
6	1061-M	O-Ring Magnaflow W/E	Yes	1 Day(s)	$21.59
7,11	820-M	Impeller, 2HP, Acura	Yes	1 Day(s)	$140.34
7,11	824-M	Impeller, 4.5HP, Acura	Yes	1 Day(s)	$183.53
7,11	823-M	Impeller, 4.0HP, Acura	Yes	1 Day(s)	$183.53
7,11	822-M	Impeller, 3.2HP, Acura	Yes	1 Day(s)	$161.93
7,11	821-M	Impeller, 2.6HP, Acura	Yes	1 Day(s)	$151.15
10	568-229	O-Ring, 2-3/8" ID, 2-5/8" OD,	Yes	1 Day(s)	$0.49
14	568-228	O-Ring, 2-1/4"ID, 2-1/2"OD,	Yes	1 Day(s)	$0.76
