SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

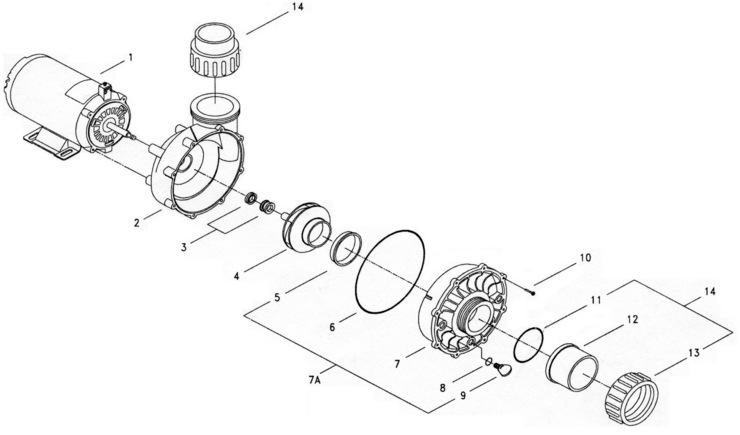

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: Flo-Master FMXP3

Aqua-Flo FloMaster-FMXP3 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 91042140000 4.0 HP, Wet End, 2-1/2"", XP3, Std Drain 48/56 Frame 6.3"" Dia. (a) No N/A N/A N/A

-

 91042130000 3.0 HP, Wet End, 2-1/2"", XP3, Std Drain 48/56 Frame 6.3"" Dia. (a) No N/A N/A N/A

-

 91042125000 2.5 HP, Wet End, 2-1/2"", XP3, Std Drain 48/56 Frame 6.3"" Dia. (a) No N/A N/A N/A

2

 92770735 Volute, XP3, 48/56 Frame, 6.3"" Dia. No N/A N/A N/A

3

 92500150 Seal Replacement, #200 No N/A N/A N/A

4

 91698400 Impeller, XP3 Series, 4.0 HP No N/A N/A N/A

4

 91698300 Impeller, XP3 Series, 3.0 HP No N/A N/A N/A

4

 91698250 Impeller, XP3 Series, 2.5 HP No N/A N/A N/A

5

 92830080 Wear Ring, Flanged, XP2e/XP3 Series No N/A N/A N/A

6

 92200310 O-ring, Volute, XP3 Series, #168 No N/A N/A N/A

7

 91231702 Cover, Suction, XP3 Series, 2-1/2"", Std Drain No N/A N/A N/A

7A

 56911110 Replacement Kit Cover Complete, 2-1/2"", XP3 Series, Std Drain No N/A N/A N/A

9

 92290070 Plug, Drain 1/4""-18 NPSM, Wing No N/A N/A N/A

10

 99730050 Screw, #8-32 x 5/8"" Long No N/A N/A N/A

11

 92200220 O-ring, #234 No N/A N/A N/A

12

 91431260 Fitting, Tail Piece, 2-1/2"" No N/A N/A N/A

13

 91431160 Fitting, Union Nut, 2-1/2"" No N/A N/A N/A

14

 52202250 Fitting, Compression, Complete, 2-1/2"" x 2-1/2"" No N/A N/A N/A
