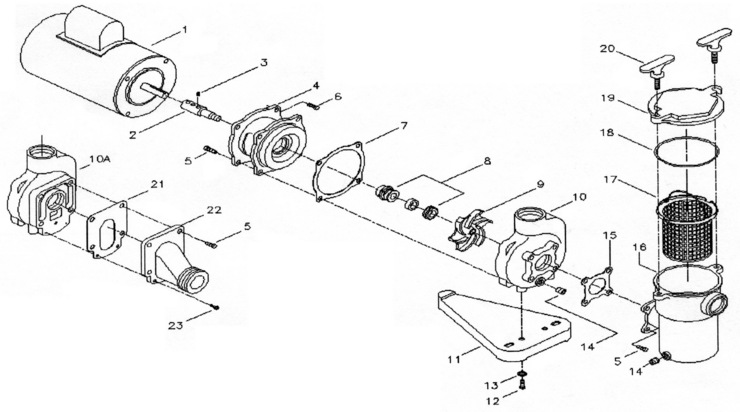

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Aqua-Flo

Model Name: A Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	91040030	Assembly, Trap Complete, 6"" x 2"" (a)	No	N/A	N/A	N/A
-	91040010	Assembly, Trap Complete, 5"" x 1-1/2"" (a)	No	N/A	N/A	N/A
-	91040020	Assembly, Trap Complete, 5"" x 2"" (a)	No	N/A	N/A	N/A
2	92520002	Shaft, Extension, Solid End	No	N/A	N/A	N/A
3	99730000	Screw, Socket Set, 1/4""-20 x 5/16""	No	N/A	N/A	N/A
4	91140150	Bracket, 3.0 HP	No	N/A	N/A	N/A
4	91140100	Bracket, .33-2.0 HP, With Foot	No	N/A	N/A	N/A
4	91140050	Bracket, .33-2.0 HP	No	N/A	N/A	N/A
5	99050030	Bolt, Hex Machine, 5/16""-18 x 5/8""	No	N/A	N/A	N/A
6	99050050	Bolt, Hex Machine, 3/8""-16 x 5/8""	No	N/A	N/A	N/A
7	91500050	Gasket, Volute, .33-2.0 HP	No	N/A	N/A	N/A
7	91500100	Gasket, Volute, 3.0 HP	No	N/A	N/A	N/A
8	92500050	Seal, Replacement, #1000	No	N/A	N/A	N/A
9	91691300	Impeller, 3.0 HP	No	N/A	N/A	N/A
9	91691251	Impeller, 2.0 HP	No	N/A	N/A	N/A
9	91691201	Impeller, 1.5 HP	No	N/A	N/A	N/A
9	91691151	Impeller, 1.0 HP	No	N/A	N/A	N/A
9	91691050	Impeller, .50 HP	No	N/A	N/A	N/A
9	91691000	Impeller, .33 HP	No	N/A	N/A	N/A
9	91691101	Impeller, .75 HP	No	N/A	N/A	N/A
10	92770050	Volute, .33-2.0 HP, 1-1/2"" Discharge, With Foot	No	N/A	N/A	N/A
10	92770060	Volute, .33-2.0 HP, 1-1/2"" Discharge, Less Foot	No	N/A	N/A	N/A
10	92770150	Volute, 3.0 HP	No	N/A	N/A	N/A
11	91100100	Base, Plastic	No	N/A	N/A	N/A
12	99050110	Bolt, Hex Machine, 5/16""-18 x 1""	No	N/A	N/A	N/A
13	99890050	Washer, Lock 5/16""	No	N/A	N/A	N/A
14	92290000	Plug, Pipe	No	N/A	N/A	N/A
15	91500150	Gasket, Trap, 5""	No	N/A	N/A	N/A
15	91500200	Gasket, Trap, 6"" & 8""	No	N/A	N/A	N/A
16	92620000	Trap, 5"", 1-1/2"" Suction	No	N/A	N/A	N/A
16	92620050	Trap, 5"", 2"" Suction	No	N/A	N/A	N/A
16	92620100	Trap, 6"", 2"" Suction	No	N/A	N/A	N/A
17	91110010	Basket, Strainer, 6"" (plastic)	No	N/A	N/A	N/A
17	91110000	Basket, Strainer, 5"" (plastic)	No	N/A	N/A	N/A
18	92200010	O'ring, Trap Cover, 6"", #438	No	N/A	N/A	N/A
18	92200000	O'ring, Trap Cover, 5"", #429	No	N/A	N/A	N/A
19	91230050	Cover, Trap, 6""	No	N/A	N/A	N/A
19	91230000	Cover, Trap, 5""	No	N/A	N/A	N/A
20	91920001	Lockhandle	No	N/A	N/A	N/A
21	91500250	Gasket, 100% Drain	No	N/A	N/A	N/A
22	56910030	Flange, 100% Drain	No	N/A	N/A	N/A
23	99730050	Screw, #8-32 x 5/8""	No	N/A	N/A	N/A
