SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

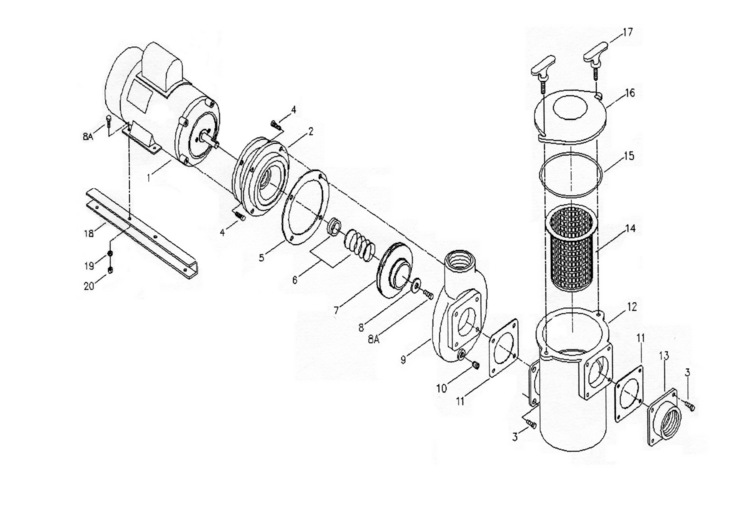

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: AC Series

Aqua-Flo AC-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 91040050 Assembly, Trap Complete, 8"" x 3"" (a) No N/A N/A N/A

-

 91040030 Assembly, Trap Complete, 6"" x 2"" (a) No N/A N/A N/A

1

 93497000 Motor, 3 HP Comm, Single Phase No N/A N/A N/A

1

 93498010 Motor, 5 HP Comm, Three Phase No N/A N/A N/A

1

 93497010 Motor, 3 HP Comm, Three Phase No N/A N/A N/A

1

 93498000 Motor, 5 HP Comm, Single Phase No N/A N/A N/A

2

 91140000 Bracket, 3.0 & 5.0 HP No N/A N/A N/A

3

 99050050 Bolt, Hex Machine, 3/8""-16 x 5/8"" No N/A N/A N/A

4

 99050000 Bolt, Hex Machine, 3/8""-16 x 3/4"" No N/A N/A N/A

5

 91500000 Gasket, Volute No N/A N/A N/A

6

 92500000 Seal, Replacement No N/A N/A N/A

7

 91590102 Impeller 5.0 HP, High Head No N/A N/A N/A

7

 91690051 Impeller, 3.0 HP, Medium Head No N/A N/A N/A

7

 91690002 Impeller, 3.0 HP, High Head No N/A N/A N/A

8A

 99050030 Bolt, Hex Machine 5/16""-18 x 5/8"" No N/A N/A N/A

8

 99890160 Washer Flat, SS, 3/8"" id, 7/8"" od, .083"" thick No N/A N/A N/A

9

 92770000 Volute No N/A N/A N/A

10

 92290000 Plug, Pipe No N/A N/A N/A

11

 91500200 Gasket, Trap 6"" & 8"" No N/A N/A N/A

12

 92620150 Trap, 8"" No N/A N/A N/A

12

 92620100 Trap, 6"", 2"" Suction No N/A N/A N/A

13

 91450010 Flange, suction, 3"" No N/A N/A N/A

14

 91110010 Basket Strainer, 6"" No N/A N/A N/A

14

 91110050 Basket Strainer, 8"", Stainless Steel No N/A N/A N/A

15

 92200010 O'ring, Trap Cover, 6"", #438 No N/A N/A N/A

15

 92200020 O'ring, Trap Cover, 8"", #441 No N/A N/A N/A

16

 91230100 Cover, Trap, 8"" No N/A N/A N/A

16

 91230050 Cover, Trap, 6"" No N/A N/A N/A

17

 91920001 Lockhandle No N/A N/A N/A

18

 91100000 Pump Base No N/A N/A N/A

19

 99890050 Washer, Lock 5/16"", SS No N/A N/A N/A

20

 99560000 Nut, Hex, 5/16""-18, SS No N/A N/A N/A
