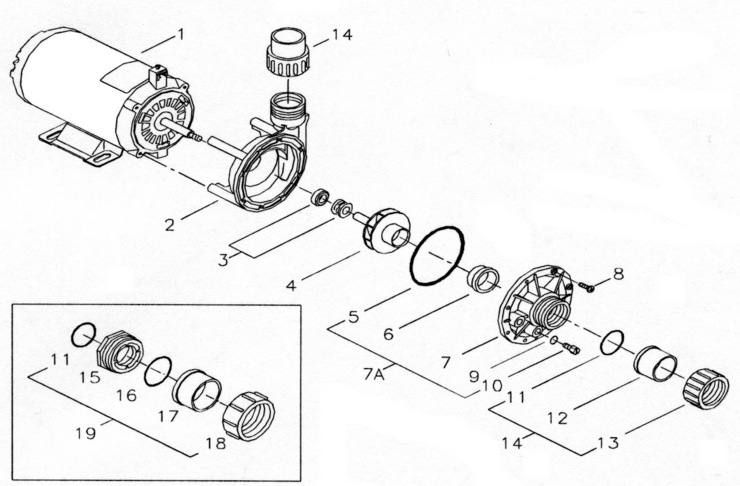

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Aqua-Flo

Model Name: Circ-Master CMHP



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	91040700010	Assembly, Wet End, Complete, Hi-Flo (a)	No	N/A	N/A	N/A
-	91040690010	Assembly, Wet End, Complete, Std-Flo (a)	No	N/A	N/A	N/A
2	92770501	Volute, FMHP Series	No	N/A	N/A	N/A
3	92500151	Seal Replacement, Matte Finish #200	No	N/A	N/A	N/A
4	91693601	Impeller, Hi-Flo	No	1 Day(s)	N/A	N/A
4	91693551	Impeller, Standard-Flo	No	1 Day(s)	$26.95
5	92200090	O-ring, Volute, #158	No	N/A	N/A	N/A
6	92830062	Wear Ring	No	N/A	N/A	N/A
7	91231301	Cover, Suction, FMHP Series, Std Drain	No	N/A	N/A	N/A
7A	56910010	Replacement Kit Cover, Complete	No	N/A	N/A	N/A
8	99730050	Screw, #8-32 x 5/8""	No	N/A	N/A	N/A
9	92200120	O-ring, Pipe Plug, #011	No	N/A	N/A	N/A
10	92290015	Pipe Plug, 1/4"" NPSM	No	N/A	N/A	N/A
11	92200140	O-ring, #226	No	N/A	N/A	N/A
12	91431050	Fitting, Tail Piece, 1-1/2""	No	N/A	N/A	N/A
13	91431000	Fitting, Union Nut, 1-1/2""	No	N/A	N/A	N/A
14	52201000	Fitting, Compression, Complete, 1-1/2""	No	N/A	N/A	N/A
16	92200210	O-ring, #230	No	N/A	N/A	N/A
18	91431150	Union Nut, 2""	No	N/A	N/A	N/A
