SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

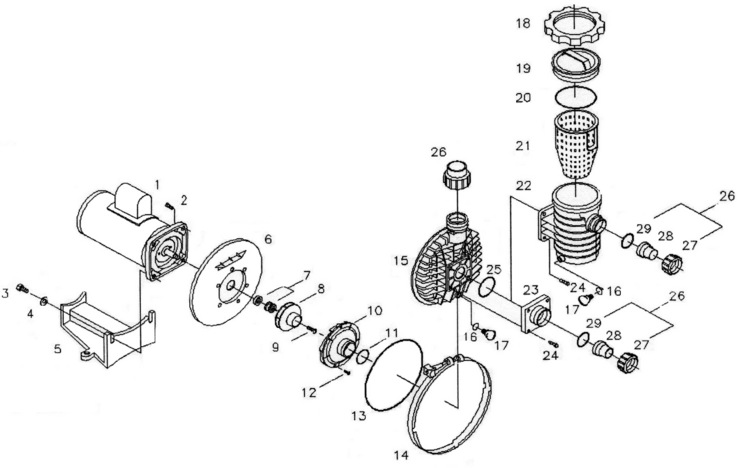

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: Dominator High Head

Aqua-Flo Dominator-High-Head replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 91040250 Assembly, Trap Complete 6"" x 2"" (b) No N/A N/A N/A

2

 99050250 Bolt, Hex Machine 3/8"" x 16 x 1"" No N/A N/A N/A

3

 99050300 Bolt, Hex Machine 3/8"" x 16 x 1-1/2"" No N/A N/A N/A

4

 99890000 Washer, Flat 3/8"" No N/A N/A N/A

5

 91100150 Base No N/A N/A N/A

7

 92500150 Seal, Replacement, #200 (a) No N/A N/A N/A

8

 91692600 Impeller, 2.0 HP, High Head No N/A N/A N/A

8

 91692500 Impeller, 1.0 HP, High Head No N/A N/A N/A

8

 91692450 Impeller, .75 HP, High Head No N/A N/A N/A

8

 91692400 Impeller, .50 HP, High Head No N/A N/A N/A

8

 91692550 Impeller, 1.5 HP, High Head No N/A N/A N/A

9

 99730150 Screw, 1/4""-20 x 11/16"" LH No N/A N/A N/A

10

 91270002 Diffuser No N/A N/A N/A

11

 92200140 O'ring, Metric No N/A N/A N/A

13

 92200180 O'ring, #449 No N/A N/A N/A

14

 99100020 Clamp, V, ""D"" Series No N/A N/A N/A

15

 91200003 Casing No N/A N/A N/A

17

 92290070 Plug, Pipe, Wing No N/A N/A N/A

18

 91920050 Lock Ring, Trap No N/A N/A N/A

21

 91110040 Basket, Strainer, 6"", ""D"" Series No N/A N/A N/A

22

 92620552 Trap, 6"" x 2"" No N/A N/A N/A

24

 99050000 Bolt, Hex Machine, 3/8""-16 x 3/4"" No N/A N/A N/A

26

 52202000 Fitting, Compression Comp., 2"" x 2"" No N/A N/A N/A

26

 52203000 Fitting, Compression Comp., 2"" x 1-1/2"" No N/A N/A N/A

27

 91431150 Fitting, Union Nut, 2"" No N/A N/A N/A

28

 91431250 Fitting, Tail Piece, 2"" x 1-1/2"" No N/A N/A N/A

29

 92200210 O'ring, #230 No N/A N/A N/A
