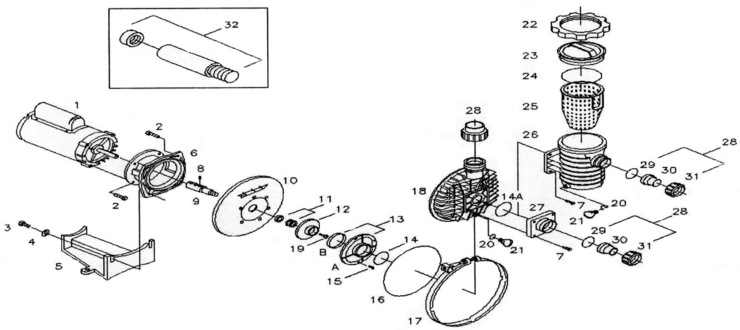

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Aqua-Flo

Model Name: Dominator Medium Head



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	91040250	Assembly, Trap Complete, 6"" x 2"" (c)	No	N/A	N/A	N/A
2	99050250	Bolt, Hex, Machine, 3/8""-16 x 1""	No	N/A	N/A	N/A
3	99050300	Bolt, Hex, Machine, 3/8""-16 x 1-1/2""	No	N/A	N/A	N/A
4	99890000	Washer, Flat, 3/8""	No	N/A	N/A	N/A
5	91100150	Base	No	N/A	N/A	N/A
7	99050000	Bolt, Hex, Machine, 3/8""-16 x 3/4""	No	N/A	N/A	N/A
8	99730000	Screw, Socket, Set, 1/4""-20 x 5/16""	No	N/A	N/A	N/A
11	92500150	Seal, Replacement, ""200"" Seal (b)	No	N/A	N/A	N/A
13B	92830051	Wear Ring, Medium Head	No	N/A	N/A	N/A
13A	91270020	Diffuser, Medium Head	No	N/A	N/A	N/A
16	92200180	O'ring, #449	No	N/A	N/A	N/A
17	99100020	Clamp, V, ""D"" Series w/Knob	No	N/A	N/A	N/A
18	91200003	Casing, ""D"" Series	No	N/A	N/A	N/A
21	92290070	Plug, Pipe, Wing	No	N/A	N/A	N/A
22	91920050	Lock, Ring, Trap	No	N/A	N/A	N/A
25	91110040	Basket, Strainer, 6"", ""D"" Series	No	N/A	N/A	N/A
26	92620552	Trap, 6"" x 2""	No	N/A	N/A	N/A
28	52203000	Fitting, Compression Comp., 2"" x 1-1/2""	No	N/A	N/A	N/A
28	52202000	Fitting, Compression Comp., 2"" x 2""	No	N/A	N/A	N/A
29	92200210	O'ring, #230	No	N/A	N/A	N/A
30	91431250	Fitting, Tail Piece, 2"" x 1-1/2""	No	N/A	N/A	N/A
31	91431150	Fitting, Union Nut, 2""	No	N/A	N/A	N/A
32	91040400	Extension Shaft, Kit, Shorty (for 1000 & 200 Series Seals)	No	N/A	N/A	N/A
