SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

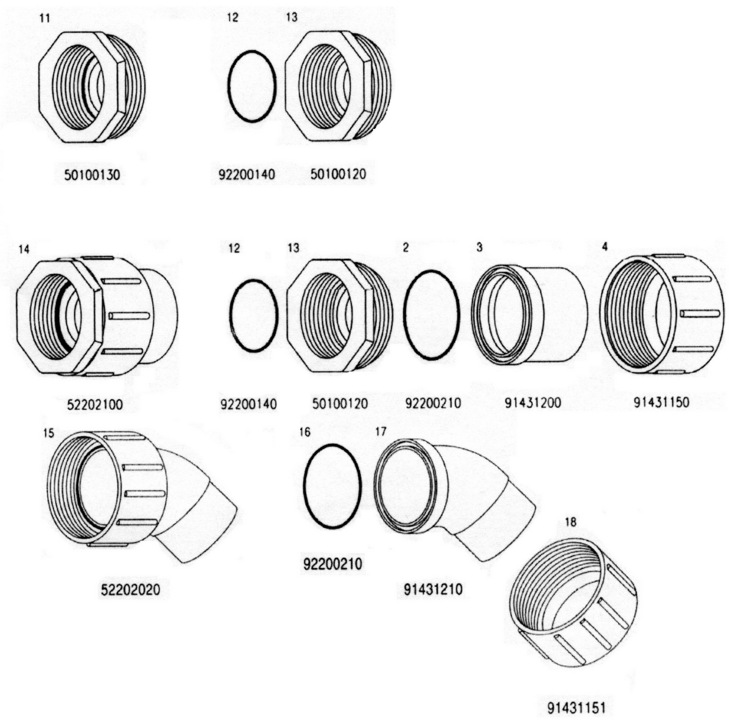

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: Fittings 2 / Adapters

Aqua-Flo Fittings-2-Adapters replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 92200210 O'ring, #230 No N/A N/A N/A

4

 91431150 Union Nut, 2"" No N/A N/A N/A

11

 50100130 Threaded Adapter Assembly, 1-1/2"" x 2"" No N/A N/A N/A

12

 92200140 O'ring, Metric No N/A N/A N/A

15

 52202020 Compression Fitting, 45 Degree No N/A N/A N/A

16

 92200210 O'ring, #230 No N/A N/A N/A

17

 91431210 Tail Piece, 45 Degree No N/A N/A N/A

18

 91431151 Union Nut, 2"" x 2"" No N/A N/A N/A
