SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

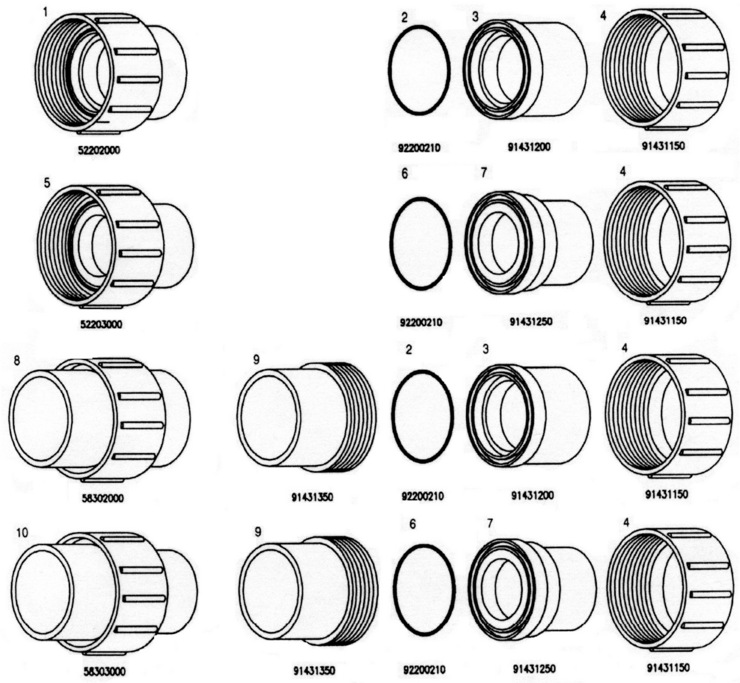

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: Fittings 2

Aqua-Flo Fittings-2 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 52202000 Compression Fitting, Complete, 2"" x 2"" No N/A N/A N/A

2

 92200210 O'ring, #230 No N/A N/A N/A

4

 91431150 Union Nut, 2"" No N/A N/A N/A

5

 52203000 Compression Fitting, Complete, 2"" x 1-1/2"" No N/A N/A N/A

7

 91431250 Tail Piece, 2"" x 1-1/2"" No N/A N/A N/A

8

 58302000 Union, Complete, 2"" x 2"" SS Yes 1 Day(s) N/A N/A

9

 91431350 Male Half of Union, 2"" Yes 1 Day(s) N/A N/A

10

 58303000 Union, Complete, 2"" x 1-1/2"" SS No N/A N/A N/A
