SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

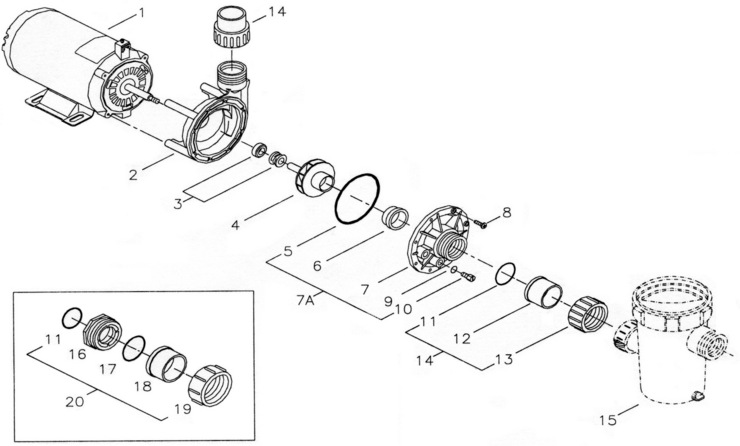

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: Flo-Master FMHP

Aqua-Flo FloMaster-FMHP replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 91040730000 Assembly, Wet End Complete, 2.0 HP (a) No N/A N/A N/A

-

 91040720000 Assembly, Wet End Complete, 1.5 HP (a) No N/A N/A N/A

-

 91040700000 Assembly, Wet End Complete, 1.0 HP (a) No N/A N/A N/A

-

 91040690000 Assembly, Wet End Complete, .75 HP (a) No N/A N/A N/A

-

 91040680000 Assembly, Wet End Complete, .50 HP (a) No N/A N/A N/A

2

 92770501 Volute, FMHP Series No N/A N/A N/A

3

 92500150 Seal Replacement, #200 No N/A N/A N/A

4

 91693700 Impeller, 2.0 HP No N/A N/A N/A

4

 91693551 Impeller, .75 HP No 1 Day(s) $26.95

4

 91693501 Impeller, .50 HP No N/A N/A N/A

4

 91693651 Impeller, 1.5 HP No N/A N/A N/A

4

 91693601 Impeller, 1.0 HP No 1 Day(s) N/A N/A

5

 92200090 O-ring, Volute, #158 No N/A N/A N/A

6

 92830062 Wear Ring No N/A N/A N/A

7A

 56910010 Replacement Kit Cover, Complete No N/A N/A N/A

7

 91231301 Cover, Suction, FMHP Series, Std Drain No N/A N/A N/A

8

 99730050 Screw, #8-32 x 5/8"" No N/A N/A N/A

9

 92200120 O-ring, Pipe Plug, #011 No N/A N/A N/A

10

 92290015 Pipe Plug, 1/4"" NPSM No N/A N/A N/A

11

 92200140 O-ring, #226 No N/A N/A N/A

12

 91431050 Fitting, Tail Piece, 1-1/2"" No N/A N/A N/A

13

 91431000 Fitting, Union Nut, 1-1/2"" No N/A N/A N/A

14

 52201000 Fitting, Compression, Complete, 1-1/2"" No N/A N/A N/A

17

 92200210 O-ring, #230 No N/A N/A N/A

19

 91431150 Union Nut, 2"" No N/A N/A N/A
