SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

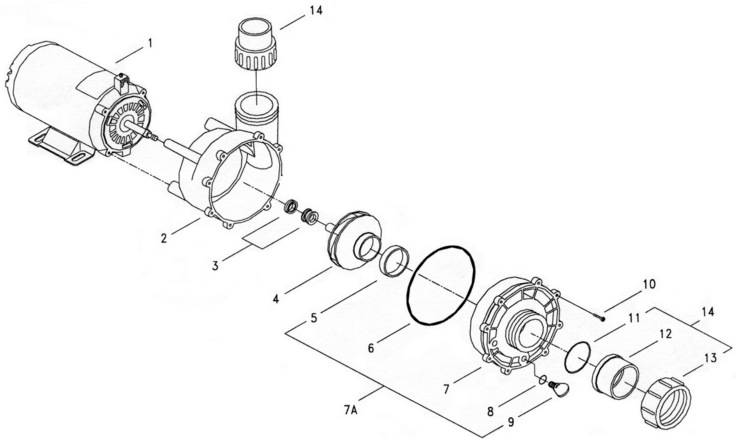

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Aqua-Flo
Model Name: Flo-Master XP2

Aqua-Flo FloMaster-XP2 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 91041634000 3.0 HP, Wet End, 2"", XP2, Std Drain, 56F, 6.3"" Dia. (a) No N/A N/A N/A

-

 91041633100 2.5 HP, Wet End, 2"", XP2, Std Drain, 56F, 6.3"" Dia. (a) No N/A N/A N/A

-

 91041632000 2.0 HP, Wet End, 2"", XP2, Std Drain, 56F, 6.3"" Dia. (a) No N/A N/A N/A

-

 91041631000 1.5 HP, Wet End, 2"", XP2, Std Drain, 56F, 6.3"" Dia. (a) No N/A N/A N/A

-

 91041612000 3.0 HP, Wet End, 2"", XP2, Std Drain, 48F (a) No N/A N/A N/A

-

 91041611100 2.5 HP, Wet End, 2"", XP2, Std Drain, 48F (a) No N/A N/A N/A

-

 91041610000 2.0 HP, Wet End, 2"", XP2, Std Drain, 48F (a) No N/A N/A N/A

-

 91041609000 1.5 HP, Wet End, 2"", XP2, Std Drain, 48F (a) No N/A N/A N/A

2

 92770705 Volute, 48 Frame No N/A N/A N/A

2

 92770725 Volute, 56 Frame, 6.3"" Dia. No N/A N/A N/A

2

 92770715 Volute, 56 Frame, 6.1"" Dia. No N/A N/A N/A

3

 92500150 Seal Replacement, #200 No N/A N/A N/A

6

 92200300 O-ring, Volute, XP2 Series, #164 No N/A N/A N/A

9

 92290070 Plug, Drain 1/4""-18 NPSM, Wing No N/A N/A N/A

10

 99730050 Screw, #8-32 x 5/8"" Long No N/A N/A N/A

11

 92200210 O-ring, #230 No N/A N/A N/A

13

 91431150 Fitting, Union Nut, 2"" No N/A N/A N/A

14

 52202000 Fitting, Compression, Complete, 2"" x 2"" No N/A N/A N/A
