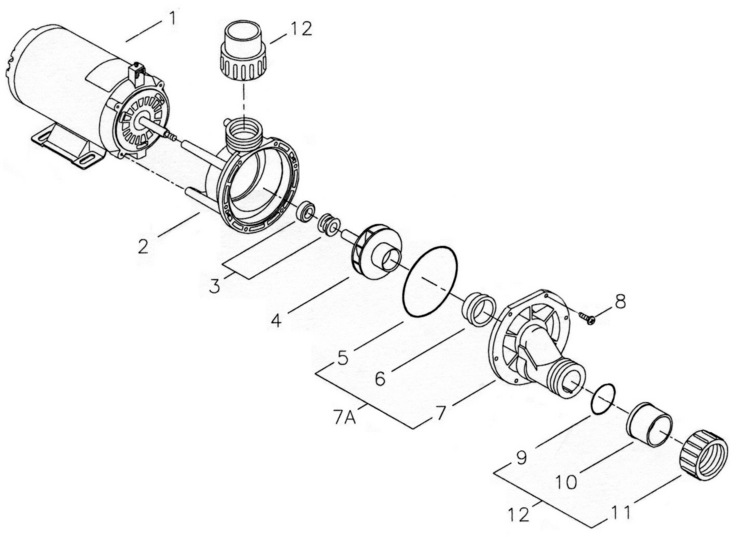

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Aqua-Flo

Model Name: Tub-Master TMCP



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	91041020100	Assembly, Wet End Complete 2.0 HP (a)	No	N/A	N/A	N/A
-	91041015000	Assembly, Wet End Complete 1.5 HP (a)	No	N/A	N/A	N/A
-	91041010000	Assembly, Wet End Complete 1.0 HP (a)	No	N/A	N/A	N/A
-	91041005000	Assembly, Wet End Complete .75 HP (a)	No	N/A	N/A	N/A
-	91041000000	Assembly, Wet End Complete .50 HP (a)	No	N/A	N/A	N/A
3	92500150	Seal Replacement, #200	No	N/A	N/A	N/A
4	91693700	Impeller, 2.0 HP	No	N/A	N/A	N/A
4	91693501	Impeller, .50 HP	No	N/A	N/A	N/A
4	91693551	Impeller, .75 HP	No	1 Day(s)	$26.95
4	91693601	Impeller, 1.0 HP	No	1 Day(s)	N/A	N/A
4	91693651	Impeller, 1.5 HP	No	N/A	N/A	N/A
5	92200270	O-ring, Volute, #251	No	N/A	N/A	N/A
6	92830062	Wear Ring	No	N/A	N/A	N/A
7	56910050	Cover Assembly, Suction	No	N/A	N/A	N/A
8	99730050	Screw, #8-32 x 5/8""	No	N/A	N/A	N/A
9	92200140	O-Ring, #226	No	N/A	N/A	N/A
10	91431050	Fitting, Tail Piece, 1-1/2""	No	N/A	N/A	N/A
11	91431000	Fitting, Union Nut, 1-1/2""	No	N/A	N/A	N/A
12	52201000	Fitting, Compression, Complete, 1-1/2""	No	N/A	N/A	N/A
