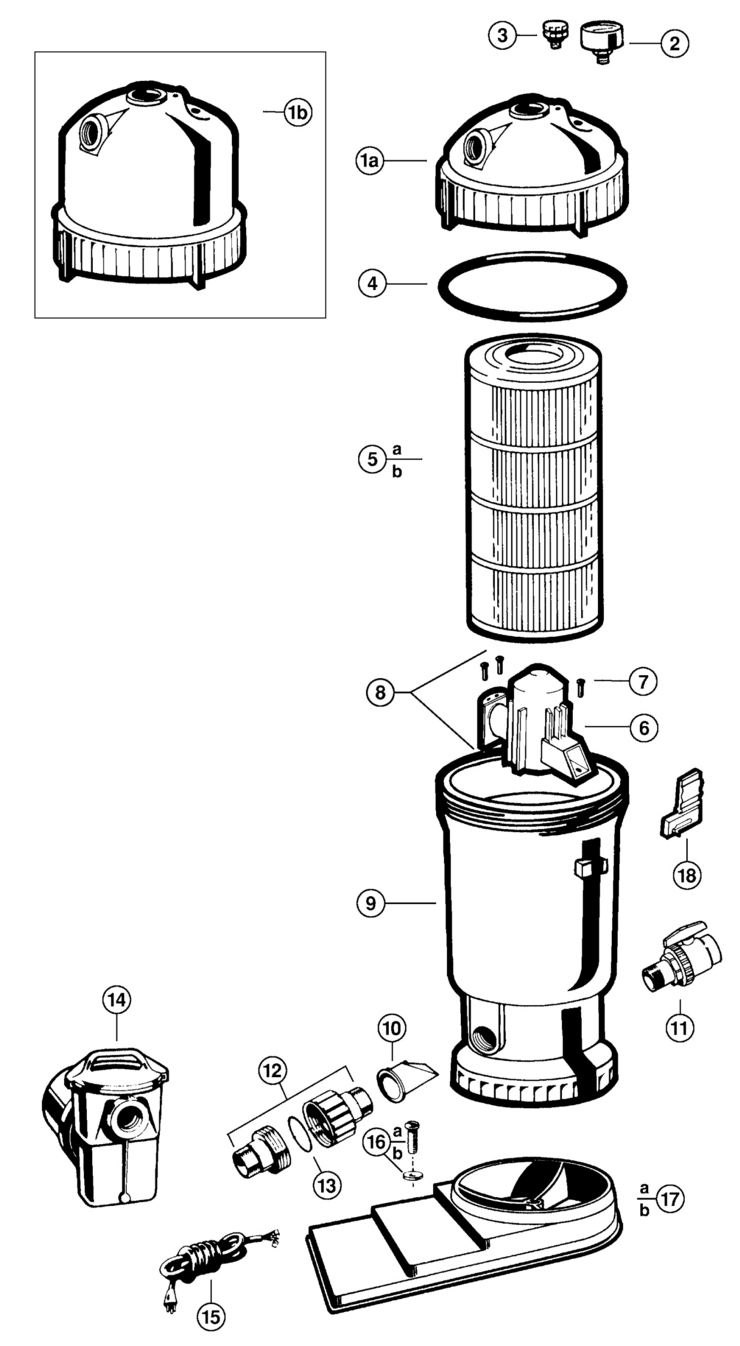

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Hayward

Model Name: ASL Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	ECX1005A	Snap Ring for Check Valve	No	N/A	N/A	N/A
1b	SCX70BC	C1250 Lid w/Locking Ring	Yes	1 Day(s)	$141.85
1a	SCX45BC	C850 Lid w/Locking Ring	No	N/A	$119.14
4	RGX45G	Filter Head O-Ring	Yes	1 Day(s)	$28.60
4	RGX45G	Filter Head O-Ring	Yes	1 Day(s)	$28.60
5b	CX1250RE	Cartridge Element	Yes	1 Day(s)	$203.69
5a	CX850RE	Cartridge Element	Yes	1 Day(s)	$71.23
6	RGX45D	Diffuser	Yes	1 Day(s)	$42.77
6	RGX45D	Diffuser	Yes	1 Day(s)	$42.77
7	RGX45Z1	Diffuser Screws	Yes	1 Day(s)	$6.78
7	RGX45Z1	Diffuser Screws	Yes	1 Day(s)	$6.78
8	RGX45DA	Diffuser and Diffuser Screws (3) (includes 6 & 7)	Yes	1 Day(s)	$31.87
8	RGX45DA	Diffuser and Diffuser Screws (3) (includes 6 & 7)	Yes	1 Day(s)	$31.87
9	RGX45AA	Filter Body	Yes	1 Day(s)	$335.34
9	RGX45AA	Filter Body	Yes	1 Day(s)	$335.34
11	SP723	Ball Valve	Yes	1 Day(s)	$26.10
11	SP723	Ball Valve	Yes	1 Day(s)	$26.10
11	SP723	Ball Valve	Yes	1 Day(s)	$26.10
11	SP723	Ball Valve	Yes	1 Day(s)	$26.10
12	SP1480	1 1/2" Male Union	Yes	1 Day(s)	$19.80
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
13	SPX1425Z6	O-Ring	Yes	1 Day(s)	$4.46
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
16b	ECX1161Z2	Pump Mounting Screw Set w/Washer	Yes	1 Day(s)	$9.12
17a	EC1169PAK	Modular Platform Base	No	N/A	N/A	N/A
