SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Hayward
Model Name: AquaBug

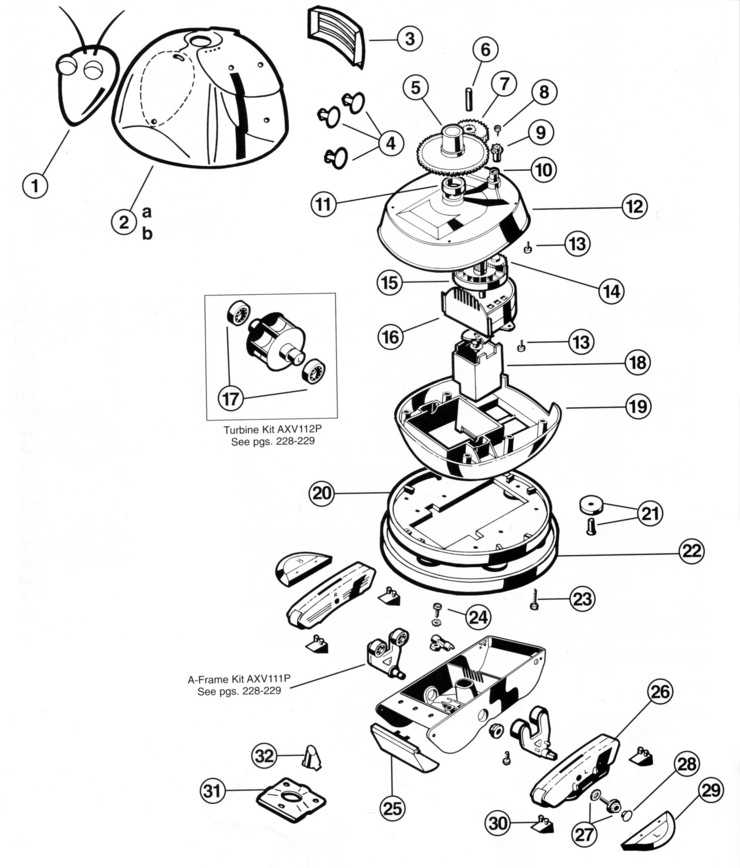

Hayward AquaBug replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 AXV464 Head Assembly, includes Head, Eyes & Antennae Yes 1 Day(s) $30.47

2a

 AXV457OR Shell, Orange Yes 1 Day(s) $175.46

2b

 AXV457YL Shell, Yellow Yes 1 Day(s) $199.47

4

 AXV443 AquaBug Spots, 4 lg. & 2 sm. Yes 1 Day(s) $6.56
