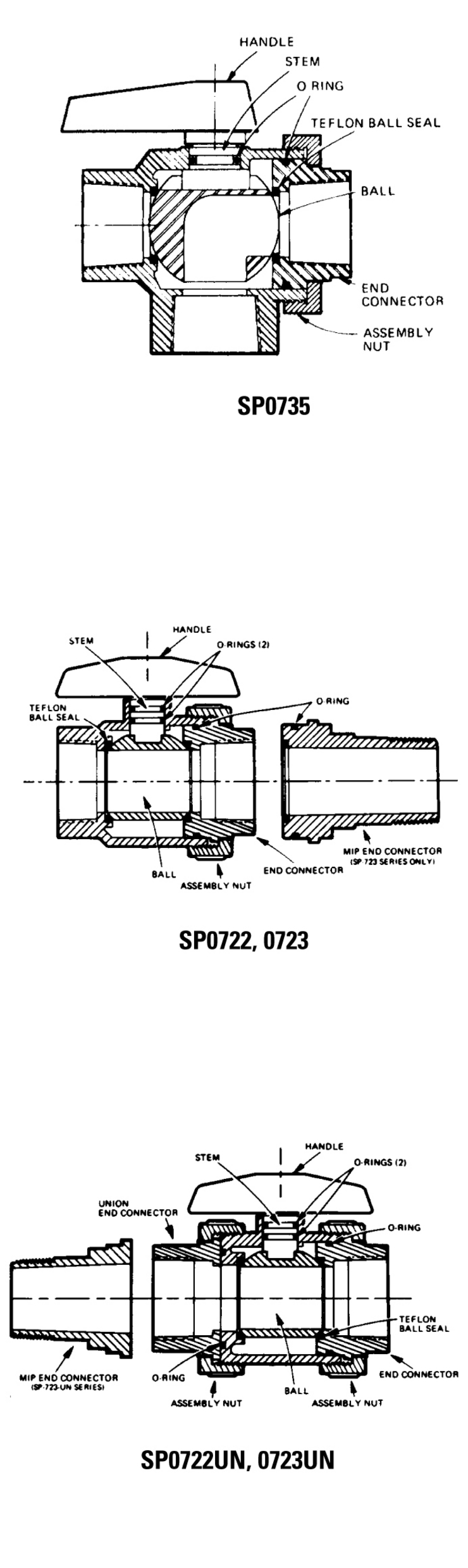

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Hayward

Model Name: Ball Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX735D	Handle	No	N/A	N/A	N/A
	SPX722ET7	End Connector - FIP	No	N/A	N/A	N/A
	SPX722ES7	End Connector - SKT	No	N/A	N/A	N/A
	SPX723ET7	End Connector - MIP	No	N/A	N/A	N/A
	SPX722UT	Union End Connector - FIP (UN)	No	N/A	$4.87
	SPX722US	Union End Connector - SKT (UN)	No	N/A	N/A	N/A
	SPX723UT	Union End Connector - MIP (UN)	No	N/A	N/A	N/A
	SPX728D	Handle	No	N/A	N/A	N/A
	SPX728H	O-Ring, End Connector	No	N/A	N/A	N/A
	SPX1441Z1	O-Ring, Stem	No	N/A	N/A	N/A
	SPX724J	Handle	No	N/A	N/A	N/A
	SPX724B	Stem	No	N/A	$4.87
	SPX724GA	Teflon Ball Seal (Set of2) w/O-Ring Stem and End Connector	No	N/A	N/A	N/A
	SPX724ET	End Connector - FIP (SP724)	No	N/A	N/A	N/A
	SPX722C7	Ball	No	N/A	N/A	N/A
	SPX722D	Assembly Nut	No	N/A	N/A	N/A
	SPX722P2	Teflon Ball Seal (Set of 2)	No	N/A	N/A	N/A
	SPX735F	Stem	No	N/A	N/A	N/A
	SPX735GH	O-Ring, Stem and End Connector	No	N/A	N/A	N/A
	SPX735E	Assembly Nut	No	N/A	N/A	N/A
	SPX720P2	Teflon Ball Seal (Set of 2)- 1976 and prior	No	N/A	N/A	N/A
	SPX735P2	Teflon Ball Seal, Set 2(SP0735)	No	N/A	N/A	N/A
	SPX720B	End Connector - Threaded (SP0720, 0730)	No	N/A	N/A	N/A
	SPX720BS	End Connector - Socket (SP0720, 0730)	No	N/A	N/A	N/A
	SPX735B	End Connector - Threaded (SP0735)	No	N/A	N/A	N/A
	SPX720C	Ball (SP0720)	No	N/A	N/A	N/A
	SPX735C	Ball (SP0735)	No	N/A	N/A	N/A
	SPX722F	Handle	No	N/A	N/A	N/A
	SPX722B7	Stem	No	N/A	N/A	N/A
	SPX720P2	Teflon Ball Seal (Set of 2)- 1976 and prior	No	N/A	N/A	N/A
	SPX724ES	End Connector - SKT (SP724)	No	N/A	N/A	N/A
