SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

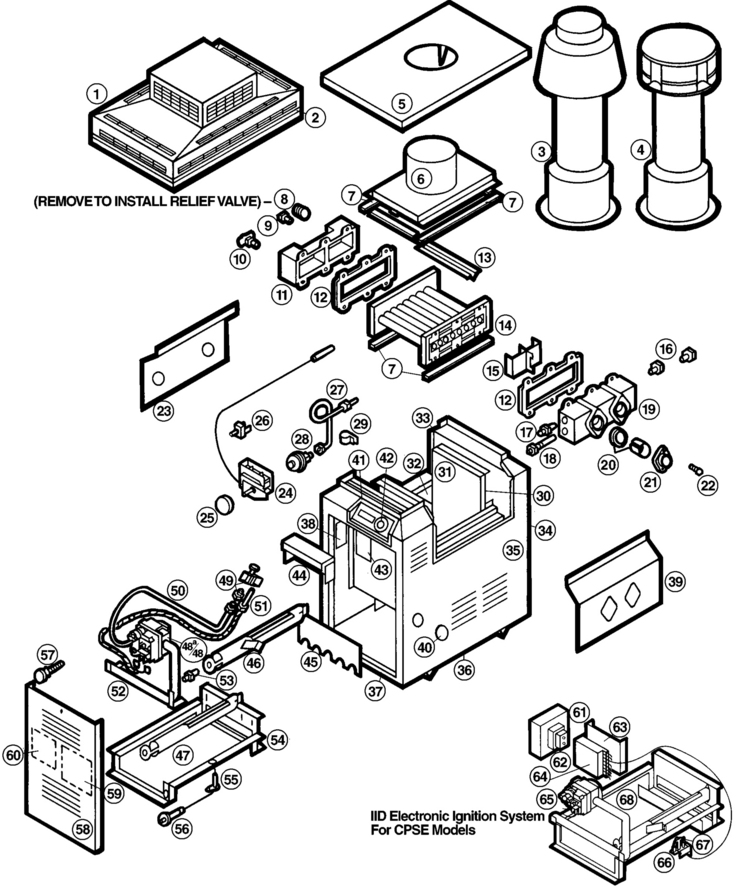

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: CPS-CPSE Models 520-1820

Hayward CPSCPSE-Models-5201820 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 CZXWIR6505 High Limit Jumper Wire (V) No N/A N/A N/A

-

 CZXBDA4148 IID Burner Ass'y. - 1320 Propane No N/A N/A N/A

-

 CZXBDA4149 IID Burner Ass'y. - 1820 Propane Yes 1 Day(s) $1551.19

-

 CZXWIR6000 Trans Wire to TR (BR) No N/A N/A N/A

-

 CZXWIR6001 Trans Wire to Pressure Sw.(W) No N/A N/A N/A

-

 CZXWIR6004 High Limit Wire (R) No N/A N/A N/A

-

 CZXWIR6005 High Limit Jumper (B) No N/A N/A N/A

-

 CZXWIR6005 High Limit Jumper (B) No N/A N/A N/A

-

 CZXWIR6501 ""On-Off"" Switch Wire (GY) No N/A N/A N/A

-

 CZXWIR6500 Thermostat Wire to TH (BK) Yes 1 Day(s) $7.79

-

 CZXWIR4502 Gas Valve to PV (BL) No N/A N/A N/A

-

 CZXWIR6506 Sensor Wire to Sensor (W) Yes 1 Day(s) $7.79

-

 CZXWIR6504 Gas Valve TH to MV (O) Yes 1 Day(s) $9.30

-

 CZXWIR7100 Ground Wire Natural Only (G) No N/A N/A N/A

-

 CZXBDA4147 IID Burner Ass'y. - 1120 Propane No N/A N/A N/A

-

 CZXBDA4146 IID Burner Ass'y. - 920 Propane Yes 1 Day(s) $1282.68

-

 CZXBDA4145 IID Burner Ass'y. - 720 Propane No N/A N/A N/A

-

 CZXWIR6606 High Limit Lead Wire (BL) Yes 1 Day(s) $8.57

-

 CZXWIR6004 High Limit Wire (R) No N/A N/A N/A

-

 CZXWIR6501 ""On-Off"" Switch Wire (GY) No N/A N/A N/A

-

 CZXWIR6503 ""On-Off"" to Pres. Sw. Wire (BR) No N/A N/A N/A

-

 CZXWIR6500 Thermostat Wire to TH (BK) Yes 1 Day(s) $7.79

-

 CZXWIR9100 TH to TST Harness (Y) (BK) No N/A N/A N/A

-

 CZXBDA4138 IID Burner Ass'y. - 520 Natural No N/A N/A N/A

-

 CZXBDA4139 IID Burner Ass'y. - 720 Natural No N/A N/A N/A

-

 CZXBDA4140 IID Burner Ass'y. - 920 Natural Yes 1 Day(s) $1282.43

-

 CZXBDA4141 IID Burner Ass'y. - 1120 Natural Yes 1 Day(s) $1375.67

-

 CZXBDA4142 IID Burner Ass'y. - 1320 Natural No N/A N/A N/A

-

 CZXBDA4143 IID Burner Ass'y. - 1820 Natural No N/A N/A N/A

-

 CZXBDA4144 IID Burner Ass'y. - 520 Propane No N/A N/A N/A

-

 CZXWHA6002 Wire Harness Kit No N/A N/A N/A

-

 CZXCNK5922 Conversion Kit Prop. To Nat. (a) No N/A N/A N/A

-

 CZXDTK1909 Dual Thermostat Kit No N/A N/A N/A

-

 CZXLBL6001 Dual Thermostat Label Only No N/A N/A N/A

-

 CZXTSW1906 3-Way Toggle Switch Yes 1 Day(s) $25.20

-

 CHXRLV1930 Relief Valve Yes 1 Day(s) $41.78

-

 CZXWHA6003 Wire Harness Kit Yes 1 Day(s) $24.05

-

 CZXCNK5923 Conversion Kit Nat. to Prop. (a) No N/A N/A N/A

2

 CZXPST6405 Pin Stripe Tape - 1820 No N/A N/A N/A

2

 CZXPST6404 Pin Stripe Tape - 520 -1320 No N/A N/A N/A

5

 CZXJKT1034 Jacket Top Assembly - 1820 No N/A N/A N/A

5

 CZXJKT1033 Jacket Top Assembly - 1320 No N/A N/A N/A

5

 CZXJKT1032 Jacket Top Assembly - 1120 No N/A N/A N/A

5

 CZXJKT1031 Jacket Top Assembly - 920 No N/A N/A N/A

5

 CZXJKT1030 Jacket Top Assembly - 720 No N/A N/A N/A

5

 CZXJKT1029 Jacket Top Assembly - 520 No N/A N/A N/A

6

 CZXFCA3372 Flue Collector No N/A N/A N/A

6

 CZXFCA3373 Flue Collector Assembly - 720 No N/A N/A N/A

6

 CZXFCA3374 Flue Collector Assembly - 920 No N/A N/A N/A

6

 CZXFCA3377 Flue Collector Assembly - 1820 No N/A N/A N/A

6

 CZXFCA3376 Flue Collector Assembly - 1320 No N/A N/A N/A

6

 CZXFCA3375 Flue Collector Assembly - 1120 No N/A N/A N/A

7

 CZXINS1 Inswool Insulation - 100"" No N/A N/A N/A

8-10-

 CZXBKT7069 Rear Bucket Ass'y w/o Gasket No N/A N/A N/A

8-22

 CZXHEX7150 Heat Exchanger Ass'y - 520 No N/A N/A N/A

8-22

 CZXHEX7151 Heat Exchanger Ass'y - 720 No N/A N/A N/A

8-22

 CZXHEX7152 Heat Exchanger Ass'y - 920 No N/A N/A N/A

8-22

 CZXHEX7153 Heat Exchanger Ass'y - 1120 No N/A N/A N/A

8-22

 CZXHEX7154 Heat Exchanger Ass'y - 1320 No N/A N/A N/A

8-22

 CZXHEX7155 Heat Exchanger Ass'y - 1820 No N/A N/A N/A

8

 CHXPLG1930 3/4"" Drain Plug Yes 1 Day(s) $10.39

9

 CZXBLT6603 Header Bolts (6 PCS) No 0 Day(s) N/A N/A

10

 CZXDRV6802 3/4"" Drain Valve Yes 1 Day(s) $11.47

12

 CZXGKT7401 Bucket Gasket (Set of 2) Yes 1 Day(s) $32.63

13

 CZXBFL3012 ""V"" Baffles - 1820 No 0 Day(s) N/A N/A

13

 CZXBFL3007 ""V"" Baffles - 520 No N/A N/A N/A

13

 CZXBFL3008 ""V"" Baffles - 720 No N/A N/A N/A

13

 CZXBFL3010 ""V"" Baffles - 1120 No N/A N/A N/A

13

 CZXBFL3011 ""V"" Baffles - 1320 No N/A N/A N/A

13

 CZXBFL3009 ""V"" Baffles - 920 No N/A N/A N/A

14

 CZXHEX7109 Heat Exchanger Only - 1120 Yes 1 Day(s) $688.03

14

 CZXHEX7106 Heat Exchanger Only - 520 Yes 1 Day(s) $390.77

14

 CZXHEX7107 Heat Exchanger Only - 720 Yes 1 Day(s) $568.79

14

 CZXHEX7108 Heat Exchanger Only - 920 Yes 1 Day(s) $613.01

14

 CZXHEX7110 Heat Exchanger Only - 1320 Yes 1 Day(s) $776.74

14

 CZXHEX7111 Heat Exchanger Only - 1820 No 0 Day(s) N/A N/A

15-22

 CZXBKT7068 Front Bucket Assembly Yes 1 Day(s) $312.41

15

 CZXBYP6812 One Piece By-Pass Yes 1 Day(s) $9.81

16

 CZXHLI9402 Immersion Hi-Limit (Single Unit) Yes 1 Day(s) $25.00

17

 CHXPSA1930 Pressure Switch Adapter Yes 1 Day(s) $10.38

18

 CHXTBW1930 Thermostat Bulb Well Yes 1 Day(s) $12.08

19

 CZXBKT7027 Front Bucket Only Yes 1 Day(s) $217.68

21

 CZXBKT7003 Flange (Set of 2) No 0 Day(s) N/A N/A

22

 CZXBLT6604 Flange Bolts (4 PCS) Yes 1 Day(s) $2.82

23

 CZXJKT5202 Left Access Cover No N/A N/A N/A

24

 CZXTST1907 Thermostat w/o Knob Yes 1 Day(s) $59.27

25

 CZXTSK2003 Thermostat Knob Yes 1 Day(s) $9.08

26

 CZXTSW1904 On-Off Switch Yes 1 Day(s) $16.13

27

 CZXPST1200 Pressure Switch Tube Yes 1 Day(s) $9.58

28

 CHXPRS1931 Pressure Switch Yes 1 Day(s) $40.39

29

 CZXPSC6402 Pressure Switch Clamp No N/A N/A N/A

30

 CZXINS19 Insulation Blanket No N/A N/A N/A

31

 CZXINS8 FireTile™ Front/Rear -1120 No N/A N/A N/A

31

 CZXINS6 FireTile™ Front/Rear - 720 No N/A N/A N/A

31

 CZXINS5 FireTile™ Front/Rear - 520 No N/A N/A N/A

31

 CZXINS7 FireTile™ Front/Rear - 920 No N/A N/A N/A

31

 CZXINS10 FireTile™ Front/Rear - 1820 No N/A N/A N/A

31

 CZXINS9 FireTile™ Front/Rear -1320 No N/A N/A N/A

32

 CZXINS11 FireTile™ Side - All No N/A N/A N/A

33

 CZXJKL700 Jacket Left Side - All No N/A N/A N/A
