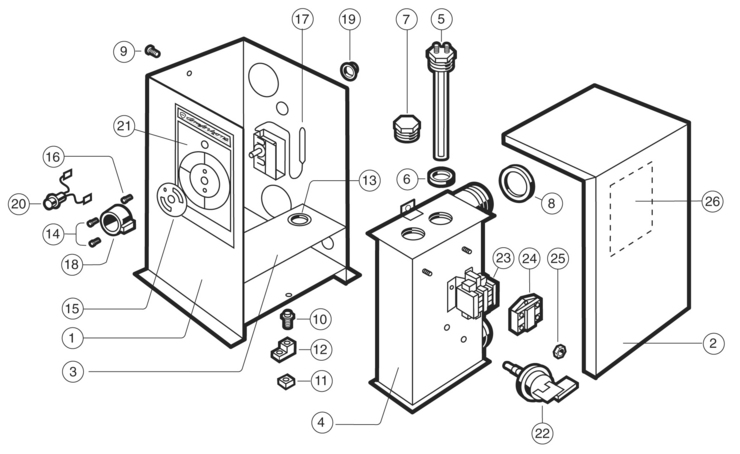

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: C-Spa XI Models 1.5 - 5.5 - 11

Hayward CSpa-XI-Models-15-55-11 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 CZXPNT1930 Touch Up Paint-Grey No 0 Day(s) N/A N/A

-

 CZXWIR8602 #8 Wire Red 7"" w/Ring Terminals No N/A N/A N/A

-

 CZXWIR8702 #8 Wire Black 7"" w/Ring Terminals No N/A N/A N/A

-

 CZXWIR8603 #8 Wire Red 16""-1 Ring Terminal No N/A N/A N/A

-

 CZXWIR8703 #8 Wire Black 16""-1 Ring Terminal No N/A N/A N/A

-

 CZXWIR5002 #18 Wire Red 7""-Solid No N/A N/A N/A

-

 CZXWIR6613 #10 Wire Black 7""-Solid No N/A N/A N/A

-

 CZXWIR5801 #14 Wire Blk 8"" w/Quick Con. Ends No N/A N/A N/A

-

 CZXWIR6601 #14 Wire Blue 5"" w/Quick Con. Ends No N/A N/A N/A

1

 CZXJKT7500 Jacket Yes 1 Day(s) $108.38

2

 CZXJKT7003 Jacket Cover No N/A N/A N/A

3

 CZXJBX7402 Junction Box No N/A N/A N/A

4

 CZXTNK6607 Tank Yes 1 Day(s) $266.86

5

 CZXELE7623 Element - 5500 watts 240 volts Yes 1 Day(s) $45.21

5

 CZXELE7641 Element - 1500 watts 120 volts No N/A N/A N/A

6

 CZXGKT7627 Element Gasket Yes 1 Day(s) $7.31

7

 CZXELP7622 Element Hole Plug w/Gasket No 0 Day(s) N/A N/A

8

 CZXGKT9216 Inlet/Outlet Gasket Yes 1 Day(s) $8.52

9

 CZXSCR6101 Tek Screw No N/A N/A N/A

10

 CZXBLT5411 Ground Lug Bolt No N/A N/A N/A

11

 CZXNUT5403 Ground Lug Nut No N/A N/A N/A

12

 CZXGRL2900 Ground Lug Yes 1 Day(s) $11.16

13

 CZXHYB1702 Heyco Bushing No N/A N/A N/A

14

 CZXSCR3003 Thermostat Screw No 0 Day(s) N/A N/A

15

 CZXTDL102 Thermostat Dial Lock No N/A N/A N/A

16

 CZXSCR2102 Dial Lock Screw No 0 Day(s) N/A N/A

17

 CZXTST3006 Thermostat Yes 1 Day(s) $45.15

18

 CZXTSK2003 Thermostat Knob Yes 1 Day(s) $9.08

19

 CZXGRM9209 Grommet, High Limit Yes 1 Day(s) $9.20

20

 CZXLIT3613 Indicator Light 240 volts Yes 1 Day(s) $21.17

20

 CZXLIT3612 Indicator Light 120 volts Yes 1 Day(s) $16.81

21

 CZXLBL7257 Thermostat Label w/Logo No N/A N/A N/A

22

 CZXPRS1105 Pressure Switch Yes 1 Day(s) $88.50

23

 CZXCON3645 Contactor Yes 1 Day(s) $119.70

24

 CZXHLC3105 High Limit Yes 1 Day(s) $43.65

25

 CZXNUT6404 High Limit and Contactor Nut Yes 1 Day(s) $7.74

26

 CZXDAP7270 Data Plate (a) No N/A N/A N/A
