SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

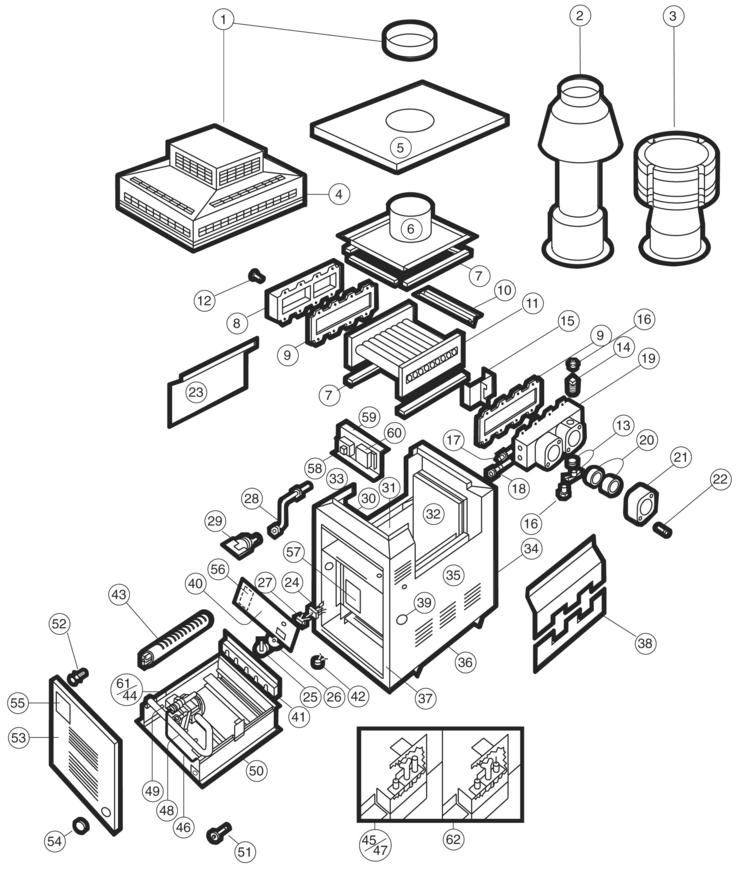

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: CZ Models 150-400

Hayward CZ-Models-150400 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 CZXDTK1300 Dual Thermostat Kit - 300 No N/A N/A N/A

-

 CZXDAP1930 Data Plate No N/A N/A N/A

-

 CZXDTK1150 Dual Thermostat Kit - 150 No N/A N/A N/A

-

 CZXDTK1200 Dual Thermostat Kit - 200 No N/A N/A N/A

-

 CZXDTK1250 Dual Thermostat Kit - 250 No N/A N/A N/A

-

 CHXBDA1404 IID Burner Ass'y - 400 Propane No N/A N/A N/A

-

 CHXBDA1203 IID Burner Ass'y - 200 Natural No N/A N/A N/A

-

 CHXBDA1153 IID Burner Ass'y - 150 Natural No N/A N/A N/A

-

 CHXRLV1930 Relief Valve Yes 1 Day(s) $41.78

-

 CZXDTK1400 Dual Thermostat Kit - 400 No N/A N/A N/A

-

 CHXTSW1931 3-Way Toggle Switch Yes 1 Day(s) $10.28

4

 CZXPST1931 Pin Stripe Tape -150 -300 No N/A N/A N/A

4

 CZXPST1932 Pin Stripe Tape - 400 No N/A N/A N/A

5

 CZXJKT1150 Jacket Top Assembly - 150 No N/A N/A N/A

5

 CZXJKT1200 Jacket Top Assembly - 200 No N/A N/A N/A

5

 CZXJKT1250 Jacket Top Assembly - 250 No N/A N/A N/A

5

 CZXJKT1300 Jacket Top Assembly - 300 No N/A N/A N/A

5

 CZXJKT1400 Jacket Top Assembly - 400 No N/A N/A N/A

6

 CHXFCA1400 Flue Collector Assembly - 400 No N/A N/A N/A

6

 CHXFCA1150 Flue Collector Assembly -150 No N/A N/A N/A

6

 CHXFCA1300 Flue Collector Assembly -300 No N/A N/A N/A

6

 CHXFCA1250 Flue Collector Assembly -250 No N/A N/A N/A

6

 CHXFCA1200 Flue Collector Assembly -200 No N/A N/A N/A

7

 CHXINF1930 Flue Sealing Material Yes 1 Day(s) $16.87

8-22

 CZXHXA1250 Heat Exchanger Ass'y - 250 No N/A N/A N/A

8-22

 CZXHXA1200 Heat Exchanger Ass'y - 200 No N/A N/A N/A

8-22

 CZXHXA1150 Heat Exchanger Ass'y - 150 No N/A N/A N/A

8-22

 CZXHXA1400 Heat Exchanger Ass'y - 400 No N/A N/A N/A

8

 CZXRHD1930 Rear Header Ass'y w/o Gasket No N/A N/A N/A

8-22

 CZXHXA1300 Heat Exchanger Ass'y - 300 No N/A N/A N/A

9

 CHXGKT1930 Header Gasket (Set of 2) Yes Day(s) N/A N/A

10

 CHXBFL1400 V-Baffles - 400 No N/A N/A N/A

10

 CHXBFL1300 V-Baffles - 300 No N/A N/A N/A

10

 CHXBFL1250 V-Baffles - 250 No N/A N/A N/A

10

 CHXBFL1200 V-Baffles - 200 No N/A N/A N/A

10

 CHXBFL1150 V-Baffles - 150 No N/A N/A N/A

11

 CHXHEX1150 Heat Exchanger Only - 150 No N/A N/A N/A

11

 CHXHEX1400 Heat Exchanger Only - 400 Yes 1 Day(s) $1112.43

11

 CHXHEX1200 Heat Exchanger Only - 200 No N/A N/A N/A

11

 CHXHEX1250 Heat Exchanger Only - 250 No N/A N/A N/A

11

 CHXHEX1300 Heat Exchanger Only - 300 No N/A N/A N/A

12

 CHXBLT1938 Header Bolts (8 pcs.) Yes 1 Day(s) $10.63

13

 CHXPLG1930 3/4"" Drain Plug Yes 1 Day(s) $10.39

13-22

 CZXFHA1930 Front Header Assembly No N/A N/A N/A

14

 CHXDRV1930 Drain Valve Yes 1 Day(s) $17.19

15

 CZXBYP1930 One Piece By-Pass 150-400 Yes 1 Day(s) $19.64

16

 CZXHLI1930 Immersion Hi-Limit (2 Pcs.) No N/A N/A N/A

17

 CHXPSA1930 Pressure Switch Adapter Yes 1 Day(s) $10.38

18

 CHXTBW1930 Thermostat Bulb Well Yes 1 Day(s) $12.08

19

 CZXFHD1930 Front Header Only No N/A N/A N/A

20

 CZXFCG1930 Flange Compression Gasket (2) Yes 1 Day(s) $46.70

21

 CZXFLG1930 Flange (Set of 2) No N/A N/A N/A

22

 CHXBLT1934 Flange Bolts (4 Pcs.) Yes 1 Day(s) $13.26

23

 CZXLAC1930 Left Access Cover No N/A N/A N/A

24

 CHXTST1930 Thermostat w/o Knob Yes 1 Day(s) $34.38

25

 CHXTSK1930 Thermostat Knob Yes 1 Day(s) $8.60

26

 CHXTDL1930 Thermostat Lock Dial No N/A N/A N/A

27

 CHXTSW1930 ""On/Off"" Switch Yes 1 Day(s) $10.28

28

 CHXPST1930 Pressure Switch Tube No N/A N/A N/A

29

 CHXPRS1931 Pressure Switch Yes 1 Day(s) $40.39

30

 CHXFTF1400 FireTile™ Front -400 No N/A N/A N/A

30

 CHXFTF1150 FireTile™ Front -150 No N/A N/A N/A

30

 CHXFTF1200 FireTile™ Front -200 No N/A N/A N/A

30

 CHXFTF1300 FireTile™ Front -300 No N/A N/A N/A

30

 CHXFTF1250 FireTile™ Front -250 No N/A N/A N/A

31

 CHXFTS1930 FireTile™ Side - All No N/A N/A N/A

32

 CHXFTB1250 FireTile™ Back -250 No N/A N/A N/A

32

 CHXFTB1150 FireTile™ Back -150 No N/A N/A N/A

32

 CHXFTB1400 FireTile™ Back -400 No N/A N/A N/A

32

 CHXFTB1200 FireTile™ Back -200 No N/A N/A N/A

32

 CHXFTB1300 FireTile™ Back -300 No N/A N/A N/A

33

 CZXJKL1930 Jacket Left Side -All No N/A N/A N/A

34

 CZXJKB1400 Jacket Back - 400 No N/A N/A N/A

34

 CZXJKB1250 Jacket Back - 250 No N/A N/A N/A

34

 CZXJKB1200 Jacket Back - 200 No N/A N/A N/A

34

 CZXJKB1150 Jacket Back - 150 No N/A N/A N/A

34

 CZXJKB1300 Jacket Back - 300 No N/A N/A N/A

35

 CZXJKR1930 Jacket Right Side - All No N/A N/A N/A

36

 CZXJBM1200 Jacket Bottom - 200 No N/A N/A N/A

36

 CZXJBM1250 Jacket Bottom - 250 No N/A N/A N/A

36

 CZXJBM1300 Jacket Bottom - 300 No N/A N/A N/A

36

 CZXJBM1400 Jacket Bottom - 400 No N/A N/A N/A

36

 CZXJBM1150 Jacket Bottom - 150 No N/A N/A N/A

37

 CZXJKF1150 Jacket Front - 150 No N/A N/A N/A

37

 CZXJKF1250 Jacket Front - 250 No N/A N/A N/A

37

 CZXJKF1300 Jacket Front - 300 No N/A N/A N/A

37

 CZXJKF1400 Jacket Front - 400 No N/A N/A N/A

37

 CZXJKF1200 Jacket Front - 200 No N/A N/A N/A

38

 CZXRAC1930 Right Access Cover (2 Pcs.) No N/A N/A N/A

39

 CHXGLC1930 Hole Cover No 0 Day(s) N/A N/A

40

 CZXCPA1200 Control Panel Assembly - 200 No N/A N/A N/A

40

 CZXCPA1250 Control Panel Assembly - 250 No N/A N/A N/A

40

 CZXCPA1400 Control Panel Assembly - 300 No N/A N/A N/A

40

 CZXCPA1300 Control Panel Assembly - 300 No N/A N/A N/A

40

 CZXCPA1150 Control Panel Assembly - 150 No N/A N/A N/A

41

 CHXFLG1250 Flame Guard - 250 No N/A N/A N/A

41

 CHXFLG1300 Flame Guard - 300 No N/A N/A N/A

41

 CHXFLG1200 Flame Guard - 200 No N/A N/A N/A

41

 CHXFLG1150 Flame Guard - 150 No N/A N/A N/A

41

 CHXFLG1400 Flame Guard - 400 No N/A N/A N/A
