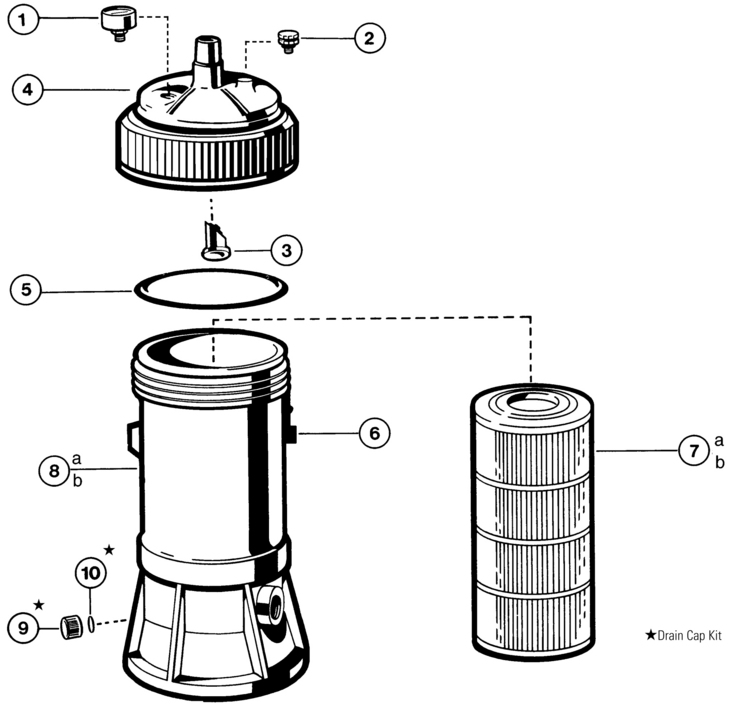

Here is the schematic view you requested:

Manufacturer name: Hayward

Model Name: Easy-Clear



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	SX200Z8A	Drain Cap Kit (includes 9 & 10)	Yes	1 Day(s)	$6.17
-	SX200Z8A	Drain Cap Kit (includes 9 & 10)	Yes	1 Day(s)	$6.17
-	SX200Z8A	Drain Cap Kit (includes 9 & 10)	Yes	1 Day(s)	$6.17
-	SX200Z8A	Drain Cap Kit (includes 9 & 10)	Yes	1 Day(s)	$6.17
-	SX200Z8A	Drain Cap Kit (includes 9 & 10)	Yes	1 Day(s)	$6.17
4	CX400BA	Filter Head (Cover) w/Check Valve and Locking Ring	Yes	1 Day(s)	$95.53
5	CX400G	Filter Head (Cover) O-Ring	Yes	1 Day(s)	$30.51
5	CX400G	Filter Head (Cover) O-Ring	Yes	1 Day(s)	$30.51
5	CX400G	Filter Head (Cover) O-Ring	Yes	1 Day(s)	$30.51
6	CX400D	Locking Ring Latch	Yes	1 Day(s)	$11.09
6	CX400D	Locking Ring Latch	Yes	1 Day(s)	$11.09
6	CX400D	Locking Ring Latch	Yes	1 Day(s)	$11.09
7b	CX550RE	Filter Element (55 Sq. Ft.)	Yes	1 Day(s)	$103.19
7a	CX410RE	Filter Element (40 Sq. Ft.)	Yes	1 Day(s)	$88.10
8b	CX550AA	Filter Body (C550)	Yes	1 Day(s)	$245.68
8a	CX400AA	Filter Body (C400)	Yes	1 Day(s)	$190.46
9	SX200Z8	Drain Cap	Yes	1 Day(s)	$6.17
9	SX200Z8	Drain Cap	Yes	1 Day(s)	$6.17
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
10	SX200Z9	Gasket	Yes	1 Day(s)	$1.94
