SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

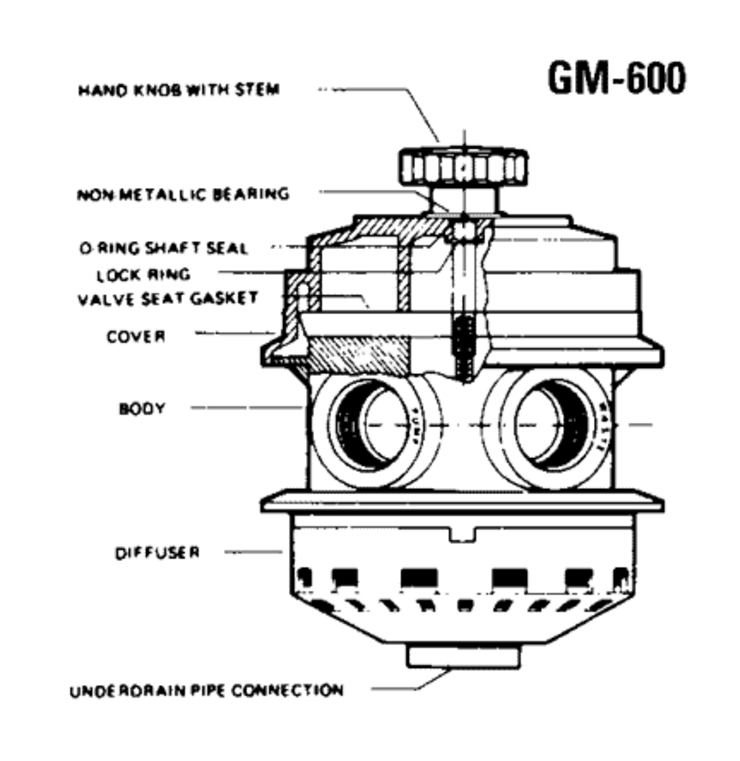

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Hayward
Model Name: GM600 - 6-Way GM Flange Mount Valve

Hayward GM600-6Way-GM-Flange-Mount-Valve replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

GMX600BA13 Cover Assembly w/Knob, Brown No N/A N/A N/A

GMX600G Valve Seat Gasket No N/A N/A N/A

GMX600E Tru-Arc Snap-Ring No N/A N/A N/A

GMX600AA13 Body Assembly w/Diffuser, Brown No N/A N/A N/A
