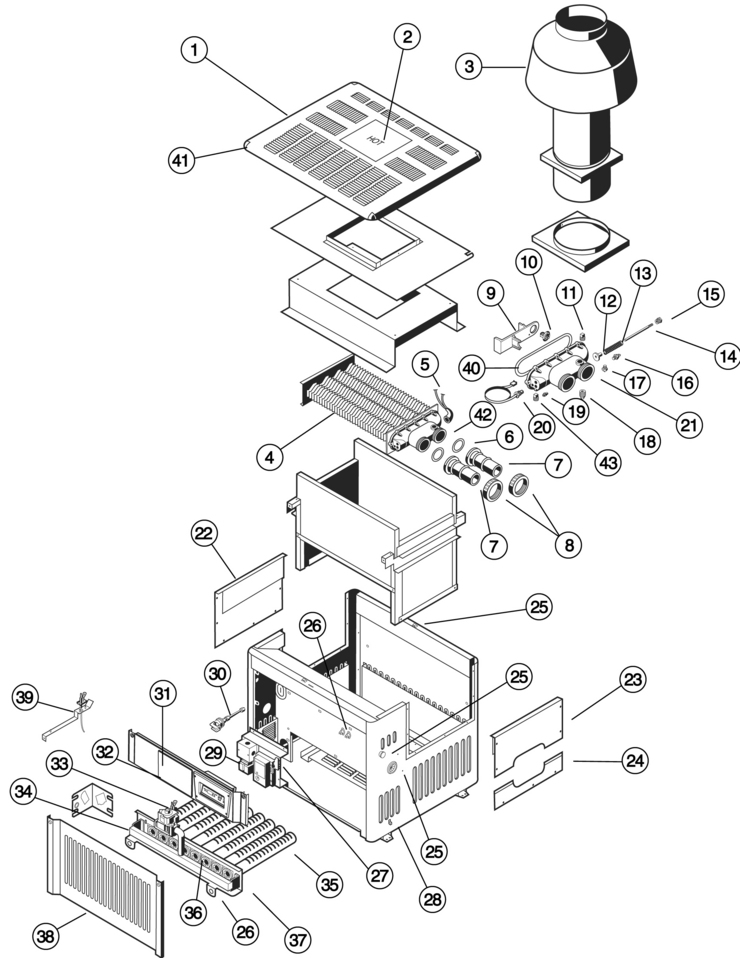

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Hayward

Model Name: H-Series - Electronic (ED2 Style)



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	HAXWHA8	Main Wire Harness	No	N/A	N/A	N/A
1	HAXJKT1150	Jacket Top Assembly - 150	Yes	1 Day(s)	$167.53
1	HAXJKT1200	Jacket Top Assembly - 200	Yes	1 Day(s)	$172.11
1	HAXJKT1251	Jacket Top Assembly - 250	Yes	1 Day(s)	$145.84
1	HAXJKT1301	Jacket Top Assembly - 300	Yes	1 Day(s)	$151.64
1	HAXJKT1351	Jacket Top Assembly - 350	Yes	1 Day(s)	$153.87
1	HAXJKT1401	Jacket Top Assembly - 400	Yes	1 Day(s)	$157.28
2	HAXDHO1930	DHO Insert	Yes	1 Day(s)	$31.33
3	HWS400	High Wind Stack - 400	Yes	1 Day(s)	$108.46
3	HWS350	High Wind Stack - 350	Yes	1 Day(s)	$107.90
3	HWS300	High Wind Stack - 300	Yes	1 Day(s)	$107.90
3	HWS250	High Wind Stack - 250	Yes	1 Day(s)	$108.46
3	HWS200	High Wind Stack - 200	Yes	1 Day(s)	$169.99
3	HWS150	High Wind Stack - 150	Yes	1 Day(s)	$107.90
3	DHI400	Indoor Drafthood - 400	Yes	1 Day(s)	$189.99
3	DHI350	Indoor Drafthood - 350	Yes	1 Day(s)	N/A	N/A
3	DHI300	Indoor Drafthood - 300	Yes	1 Day(s)	$189.99
3	DHI250	Indoor Drafthood - 250	Yes	1 Day(s)	$189.99
3	DHI200	Indoor Drafthood - 200	Yes	1 Day(s)	$189.99
3	DHI150	Indoor Drafthood - 150	Yes	1 Day(s)	$179.99
4	HAXHXA1403	Heat Exchanger Assembly - 400	Yes	1 Day(s)	$1025.62
4	HAXHXA1353	Heat Exchanger Assembly - 350	Yes	1 Day(s)	$931.31
4	HAXHXA1303	Heat Exchanger Assembly - 300	Yes	1 Day(s)	$859.34
4	HAXHXA1253	Heat Exchanger Assembly - 250	Yes	1 Day(s)	$834.25
4	HAXHXA1152	Heat Exchanger Assembly - 150	No	N/A	N/A	N/A
4	HAXHXA1203	Heat Exchanger Assembly - 200	Yes	1 Day(s)	$709.93
5	HAXWHA7	Rear Wire Harness, DS	No	N/A	N/A	N/A
6	HAXFOR1930	O-Rings	Yes	1 Day(s)	$4.57
7	HAXNIP1930	Flange Pipe Nipples	Yes	1 Day(s)	$24.63
8	HAXNUT1930	Union Nuts	Yes	1 Day(s)	$11.38
9	HAXBPI1931	By-pass Insert	No	N/A	N/A	N/A
10	HAXFCT1930	Flow Control Thermostat	Yes	1 Day(s)	$30.59
11	CHXPLG1930	3/4"" NPT Brass Plug	Yes	1 Day(s)	$10.39
12	HAXBPV1930	By-Pass Valve	No	N/A	N/A	N/A
13	HAXVSG1930	Valve Spring	No	N/A	N/A	N/A
14	HAXSFT1930	Brass Shaft	No	N/A	N/A	N/A
15	HAXADP1930	Brass Adapter	No	N/A	N/A	N/A
16	HAXHLI1930	Hi-Limit 135° F	Yes	1 Day(s)	$21.40
17	HMXHLI2932	Hi-Limit 160° F	Yes	1 Day(s)	$21.40
18	HAXDRV1930	Drain Valve Assembly	Yes	1 Day(s)	$35.13
19	HAXPSA1930	Pressure Switch Adapter	Yes	1 Day(s)	$36.01
20	IDXLTER1930	Thermistor	Yes	1 Day(s)	$70.11
21	HAXFHD1931	Front Header Only	Yes	1 Day(s)	$87.16
22	HAXLAC1930	Left Access Cover	Yes	1 Day(s)	$29.21
23	HAXURA1930	Upper Right Access Cover	Yes	1 Day(s)	$28.38
24	HAXLRA1931	Lower Right Access Cover	Yes	1 Day(s)	$21.55
25	HAXPHK1930	Plastic Hardware Kit	Yes	1 Day(s)	$23.38
26	HAXTLK1930	Temperature Limiters Kit	Yes	1 Day(s)	$46.73
27	IDXLTMB1931	6-Pole Terminal Block	Yes	1 Day(s)	$15.35
28	CHXGRL1930	TA-2 Ground Lug	No	N/A	N/A	N/A
29	CHXTRF1930	Transformer	Yes	1 Day(s)	$33.00
30	HAXPSA1930	Pressure Switch Assembly	Yes	1 Day(s)	$36.01
31	HAXCPA1932	Control Bezel Assembly	Yes	1 Day(s)	$373.79
32	HAXCPA3402	Control Panel Assembly - 400 DS	No	N/A	N/A	N/A
32	HAXCPA3352	Control Panel Assembly - 350 DS	No	N/A	N/A	N/A
32	HAXCPA3302	Control Panel Assembly - 300 DS	No	N/A	N/A	N/A
32	HAXCPA1932	Control Panel Assembly - 250 DS	Yes	1 Day(s)	$373.79
32	HAXCPA3202	Control Panel Assembly - 200 DS	No	N/A	N/A	N/A
32	HAXCPA3152	Control Panel Assembly - 150 DS	No	N/A	N/A	N/A
33	HAXGSV4	Gas Valve, DS Propane	No	N/A	N/A	N/A
33	HAXGSV5	Gas Valve, DS Natural Gas	No	N/A	N/A	N/A
34	HAXMAN1400	Gas Manifold - 400	Yes	1 Day(s)	$118.50
34	HAXMAN1350	Gas Manifold - 350	Yes	1 Day(s)	$105.56
34	HAXMAN1300	Gas Manifold - 300	Yes	1 Day(s)	$95.72
34	HAXMAN1250	Gas Manifold - 250	Yes	1 Day(s)	$90.81
34	HAXMAN1200	Gas Manifold - 200	Yes	1 Day(s)	$77.42
34	HAXMAN1150	Gas Manifold - 150	Yes	1 Day(s)	$65.07
35	HAXBRN1930	Burner Tube	No	N/A	N/A	N/A
36	HAXBOP1932	Burner Orifice, Propane	Yes	1 Day(s)	$6.65
36	HAXBOP1931	Burner Orifice, Propane HA	Yes	1 Day(s)	$6.65
36	HAXBON1931	Burner Orifice, Natural Gas HA	Yes	1 Day(s)	$7.15
36	HAXBON1930	Burner Orifice, Natural Gas	Yes	1 Day(s)	$6.65
37	HAXBMA1353	Burner - Manifold Ass'y 350 DS NA	Yes	1 Day(s)	$1139.57
37	HAXBMA1354	Burner - Manifold Ass'y 350 DS LP	Yes	1 Day(s)	$804.20
37	HAXBMA1403	Burner - Manifold Ass'y 400 DS NA	Yes	1 Day(s)	$1206.83
37	HAXBMA1404	Burner - Manifold Ass'y 400 DS LP	Yes	1 Day(s)	$871.51
37	HAXBMA1154	Burner - Manifold Ass’y 150 DS LP	Yes	1 Day(s)	$553.50
37	HAXBMA1304	Burner - Manifold Ass'y 300 DS LP	Yes	1 Day(s)	$739.08
37	HAXBMA1303	Burner - Manifold Ass'y 300 DS NA	Yes	1 Day(s)	$739.08
37	HAXBMA1254	Burner - Manifold Ass'y 250 DS LP	Yes	1 Day(s)	$681.60
37	HAXBMA1253	Burner - Manifold Ass'y 250 DS NA	Yes	1 Day(s)	$681.60
37	HAXBMA1204	Burner - Manifold Ass'y 200 DS LP	Yes	1 Day(s)	$617.55
37	HAXBMA1203	Burner - Manifold Ass'y 200 DS NA	Yes	1 Day(s)	$617.55
37	HAXBMA1153	Burner - Manifold Ass'y 150 DS NA	Yes	1 Day(s)	$553.50
38	HAXFAD1150	Front Access Door Assembly - 150	Yes	1 Day(s)	$69.93
38	HAXFAD1400	Front Access Door Assembly - 400	Yes	1 Day(s)	$82.63
38	HAXFAD1350	Front Access Door Assembly - 350	Yes	1 Day(s)	$78.89
38	HAXFAD1300	Front Access Door Assembly - 300	Yes	1 Day(s)	$77.78
38	HAXFAD1250	Front Access Door Assembly - 250	Yes	1 Day(s)	$76.12
38	HAXFAD1200	Front Access Door Assembly - 200	Yes	1 Day(s)	$72.47
39	HAXIGN1931	Ignitor Assembly	Yes	1 Day(s)	$46.45
40	HAXHOR1930	Header O-Ring	Yes	1 Day(s)	$8.35
41	HAXCIA1930	Corner Piece Kit (4)	Yes	1 Day(s)	$15.81
42	IDXLFHA1930	Front Header Assembly	Yes	1 Day(s)	$200.68
43	HAXPLG1931	3/8"" Brass Plug	Yes	1 Day(s)	$10.01
