SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

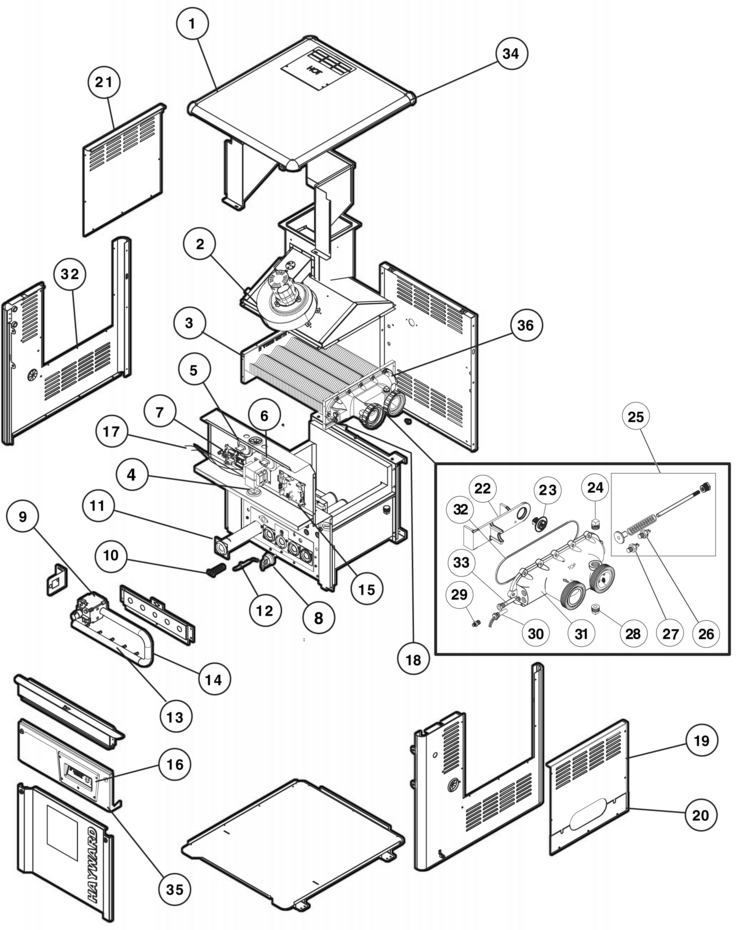

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: H-Series Low NOx

Hayward HSeries-Low-NOx replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 IDXLJKT1400 Top Jacket Assembly - H400IDL No N/A N/A N/A

-

 HAXMAN1400 Gas Manifold - H400 Yes 1 Day(s) $118.50

-

 IDXLBOP1930 Burner Orifice - Propane Yes 1 Day(s) $12.06

-

 IDXL2BRN1930 Burner Tube (b) No N/A N/A N/A

-

 IDXL2IGN1930 Ignitor - Silicone Nitride (b) Yes 1 Day(s) $54.02

-

 IDXLIGN1931 Ignitor - 120V Yes 1 Day(s) $59.16

-

 IDXLGSV0002 Gas Valve - Propane Yes 1 Day(s) $135.13

-

 IDXLBWR1931 Combustion Blower - 120V Yes 1 Day(s) $305.76

-

 IDXL2FSB1930 Fuse Board (b) Yes 1 Day(s) $186.67

-

 IDXL2BVS1930 Blower Vacuum Switch (b) Yes 1 Day(s) $29.30

-

 IDXL2VPS1930 Vent Pressure Switch (b) Yes 1 Day(s) $41.97

-

 IHXTRF1931 Transformer - 120V No N/A N/A N/A

-

 IHXL2TRF1930 Transformer - 240V (b) No N/A N/A N/A

-

 IDXLHXA1400 Heat Exchanger Assembly - H400IDL Yes 1 Day(s) $1025.62

-

 IDXL2BWR1930 Combustion Blower - 240V (b) No N/A N/A N/A

-

 IHXILS1931 Interlock Switch- 120V No N/A N/A N/A

-

 IDXL2ICB1931 Integrated Control Board (b) Yes 1 Day(s) $168.51

-

 IDXL2CPA1930 Control Bezel Assembly (a) No N/A N/A N/A

-

 IDXLCPA1930 Control Bezel Assembly - H400IDLCAL (a) Yes 1 Day(s) $373.90

-

 IHXPHK1930 Plastic Hardware Kit (Not Pictured) No N/A N/A N/A

-

 IDXL2PBA1400 Control Panel Assembly - H400IDL Yes 1 Day(s) $281.08

-

 HAXBPK1930 Bi-Pass Valve Kit (b) No N/A N/A N/A

-

 IDXLWHM1931 Wire Harness Main - 120V Yes 1 Day(s) $81.81

-

 IDXL2WHM1930 Wire Harness Main - 240V (b) No N/A $71.69

-

 IDXL2PBA1931 Control Bezel Assembly - H400IDLCAL (b) No N/A $194.29

1

 IDXLJKT1250 Top Jacket Assembly - H250IDL No N/A N/A N/A

2

 IDXLBWR1930 Combustion Blower - 240V Yes 1 Day(s) $305.76

3

 IDXLHXA1250 Heat Exchanger Assembly - H250IDL Yes 1 Day(s) $830.27

4

 IHXTRF1930 Transformer - 240V Yes 1 Day(s) $48.58

5

 IDXLVPS1930 Vent Pressure Switch Yes 1 Day(s) $47.97

6

 IDXLBVS1930 Blower Vacuum Switch Yes 1 Day(s) $29.30

7

 IDXLTMB1930 Terminal Block - 4 Pole Yes 1 Day(s) $10.28

8

 HAXPSA1930 Pressure Switch Assembly Yes 1 Day(s) $36.01

9

 IDXLGSV0001 Gas Valve - Natural Yes 1 Day(s) $135.13

10

 IDXLIGN1930 Ignitor - 240V Yes 1 Day(s) $66.88

11

 IDXLBRN1930 Burner Tube No N/A N/A N/A

12

 IDXLFLS1930 Flame Sensor Yes 1 Day(s) $35.13

13

 IDXLBON1930 Burner Orifice - Natural Gas Yes 1 Day(s) $12.06

14

 HAXMAN1250 Gas Manifold - H250 Yes 1 Day(s) $90.81

15

 IHXILS1930 Interlock Switch - 240V Yes 1 Day(s) $31.79

16

 IDXLCPA1930 Control Bezel Assembly (a) Yes 1 Day(s) $373.90

17

 IDXLWHM1930 Wire Harness Main - 240V Yes 1 Day(s) $81.81

18

 HAXWHA6 Wire Harness Hi-Limits No N/A N/A N/A

19

 IDXLURA1930 Upper Right Access Cover Yes 1 Day(s) $29.25

20

 IDXLLRA1930 Lower Right Access Cover Yes 1 Day(s) $14.47

21

 IDXLLAC1930 Left Access Cover Yes 1 Day(s) $25.47

22

 HAXBPI1931 Bi-Pass Insert No N/A N/A N/A

23

 HAXFCT1930 Flow Control Thermostat Yes 1 Day(s) $30.59

24

 CHXPLG1930 3/4"" NPT Brass Plug Yes 1 Day(s) $10.39

25

 HAXBPV1930 Bi-Pass Valve No N/A N/A N/A

26

 HAXHLI1930 Hi-Limit 135° F Yes 1 Day(s) $21.40

27

 HMXHLI2932 Hi-Limit 160° F Yes 1 Day(s) $21.40

28

 HAXDRV1930 Drain Valve Assembly Yes 1 Day(s) $35.13

29

 CHXPSA1930 Pressure Switch Adapter Yes 1 Day(s) $10.38

30

 HAXTBW1930 Bulb Well Yes 1 Day(s) $17.19

31

 HAXFHD1931 Front Header Only Yes 1 Day(s) $87.16

32

 HAXHOR1930 Header O-Ring Yes 1 Day(s) $8.35

33

 IDXLTER1930 Thermistor Yes 1 Day(s) $70.11

34

 HAXCIA1930 Corner Piece Kit (4) Yes 1 Day(s) $15.81

35

 IDXL2PBA1250 Control Panel Assembly - H250IDL No 1 Day(s) $259.41

36

 IDXLFHA1930 Front Header Assembly Yes 1 Day(s) $200.68
