SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

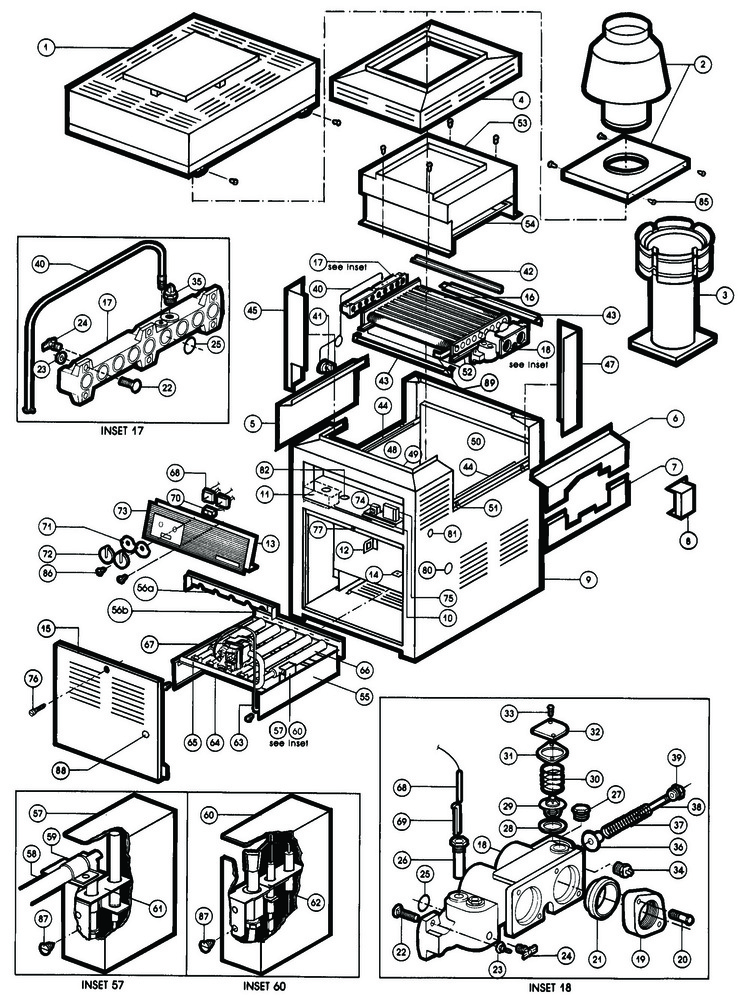

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: Heatmaster HM Models 280-406

Hayward Heatmaster-HM-Models-280406 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 HX350CK Conversion Kit - to Natural Gas No N/A N/A N/A

-

 HX280BT Burner Tray Assembly (Millivolt-Natural) No N/A N/A N/A

-

 HX280BTP Burner Tray Assembly (Millivolt-Propane) No N/A N/A N/A

-

 HX350BT Burner Tray Assembly (Millivolt-Natural) No N/A N/A N/A

-

 HX406BTNE Burner Tray Assembly (Natural-electronic) No N/A N/A N/A

-

 HX350PNT Touch-Up Paint No N/A N/A N/A

-

 HX406BT Burner Tray Assembly (Millivolt-Natural) No N/A N/A N/A

-

 HX350DTK Dual Thermostat Kit No N/A N/A N/A

-

 HX350CKLP Conversion Kit - to Propane No N/A N/A N/A

1

 H280DHO Drafthood - Outdoor No N/A N/A N/A

1

 H406DHO Drafthood - Outdoor No N/A N/A N/A

1

 H350DHO Drafthood - Outdoor No N/A N/A N/A

2

 H406DHI Drafthood - Indoor Stack & Adapter (Kit Only) No N/A N/A N/A

2

 H350DHI Drafthood - Indoor Stack & Adapter (Kit Only) No N/A N/A N/A

2

 H280DHI Drafthood - Indoor Stack & Adapter (Kit Only) No N/A N/A N/A

3

 H280HWS High Wind Stack No N/A N/A N/A

3

 H350HWS High Wind Stack No N/A N/A N/A

3

 H406HWS High Wind Stack No N/A N/A N/A

4

 HX280TOP Top, Cabinet No N/A N/A N/A

4

 HX406TOP Top, Cabinet No N/A N/A N/A

4

 HX350TOP Top, Cabinet No N/A N/A N/A

5

 HX350AP Access Panel - Return Header No N/A N/A N/A

6

 HX350APT Access Panel Top - Front Header No N/A N/A N/A

7

 HX350APB Access Panel Bottom - Front Header No N/A N/A N/A

8

 HX350COV Control Cover - Front Header No N/A N/A N/A

9

 HX280CAB Cabinet - Heater No N/A N/A N/A

9

 HX350CAB Cabinet - Heater No N/A N/A N/A

9

 HX406CAB Cabinet - Heater No N/A N/A N/A

10

 HX350BCM Base - Control Mounting No N/A N/A N/A

11

 HX350JB Junction Box No N/A N/A N/A

12

 HX406BKTGV Bracket -Electronic Nat. Gas Valve No N/A N/A N/A

12

 HX350BKTGV Bracket - Gas Valve No N/A N/A N/A

13

 HX406CPNL Control Panel No N/A N/A N/A

13

 HX350CPNL Control Panel No N/A N/A N/A

13

 HX280CPNL Control Panel No N/A N/A N/A

14

 HX350BKTIW Bracket - Ignition Wire No N/A N/A N/A

15

 HX350DR Cabinet Door No N/A N/A N/A

15

 HX280DR Cabinet Door No N/A N/A N/A

15

 HX406DR Cabinet Door No N/A N/A N/A

16

 HX406HE1 Heat Exchanger (Tube Sheets and Tubes) No N/A N/A N/A

16

 HX350HE1 Heat Exchanger (Tube Sheets and Tubes) No N/A N/A N/A

16

 HX280HE1 Heat Exchanger (Tube Sheets and Tubes) No N/A N/A N/A

17

 HX350HDRB Header, Return (Bronze) No N/A N/A N/A

17

 HX350HDR Header, Return (Cast Iron) No N/A N/A N/A

18

 HX350HDFB Header, Front (Bronze) No N/A N/A N/A

18

 HX350HDF Header, Front (Cast Iron) No N/A N/A N/A

19

 HX350FL Header Flange No N/A N/A N/A

20

 HX350F1114 Flange Bolts (Set of 4) 3/8 - 16 x 1-3/4 No N/A N/A N/A

21

 HMXGKT2930 2"" Flange Gaskets w/Sleeves (Set of 2) Yes 1 Day(s) $44.04

21

 CZXFCG1930 1-1/2"" Flange Gaskets (Set of 2) Yes 1 Day(s) $46.70

22

 HX350F101 Carriage Bolts For Headers (Set of 6) 3/8 - 16 x 1-1/2 No N/A N/A N/A

23

 HX350F2216 Flanged Nuts For Headers (Set of 6) 3/8 - 16 No N/A N/A N/A

24

 CZXDRV6802 Drain Valve Yes 1 Day(s) $11.47

25

 HX350GH9 Gasket, Header (Set of 9) Yes 1 Day(s) $11.39

26

 CHXTBW1930 Bulb Well Yes 1 Day(s) $12.08

27

 CHXPLG1930 Plug - Relief Valve 3/4 NPT Yes 1 Day(s) $10.39

28

 HX350GTST Gasket - Thermostat No N/A N/A N/A

29

 HMXFCT2930 Thermostat - Flow Control Yes 1 Day(s) $30.86

30

 HX350SPT Spring - Thermostat Retainer No N/A N/A N/A

31

 HX350GCP Gasket - Cover Plate No N/A N/A N/A

32

 HX350CP Cover Plate (Cast Iron) No N/A N/A N/A

32

 HX350CPB Cover Plate (Bronze) No N/A N/A N/A

33

 HX350F1222 Bolts, Cover Plate (Set of 2) 1/4 - 20 x 3/4 No N/A N/A N/A

34

 HX350HL150 Hi Limit - 150°F (Front Header) No N/A N/A N/A

35

 HMXHLI2931 Hi Limit - 140°F (Return Header) No N/A N/A N/A

36

 HX350BPV Bypass Valve No N/A N/A N/A

37

 HX350SPBV Spring - Bypass Valve No N/A N/A N/A

38

 HX350ROD Guide Rod - Bypass Valve No N/A N/A N/A

39

 HX350PBV Plug - Bypass Valve No N/A N/A N/A

40

 HX350PST Pressure Switch Tube w/Fittings No N/A N/A N/A

41

 HX350PSW1 Pressure Switch w/Fitting No N/A N/A N/A

42

 HX406BFL Baffles, Flue No N/A N/A N/A

42

 HX350BFL Baffles, Flue No N/A N/A N/A

42

 HX280BFL Baffles, Flue No N/A N/A N/A

43

 HX406HS22 Front and Rear - Heat Ex. Supports (Set of 2) No N/A N/A N/A

43

 HX350HS22 Front and Rear - Heat Ex. Supports (Set of 2) No N/A N/A N/A

43

 HX280HS22 Front and Rear - Heat Ex. Supports (Set of 2) No N/A N/A N/A

44

 HX350HS12 Side - Heat Exchanger Support (Set of 2) No N/A N/A N/A

45

 HX350ANGL Angle - Combustion Chamber (Left Front) No N/A N/A N/A

46

 HX350ANGR Angle - Combust. Chamber (Rt. Front) No N/A N/A N/A

47

 HX350ANG2 Angle - Combustion Chamber (Rear, Set of 2) No N/A N/A N/A

48

 HX350RS2 Refractory - Side (Set of 2) No N/A N/A N/A

49

 HX280RF Refractory - Front No N/A N/A N/A

50

 HX280RR Refractory - Rear No N/A N/A N/A

51

 HX350BKTCC4 Bracket, Support - Combustion Chamber (Set of 4) No N/A N/A N/A

52

 CZXINS1 Gasket - Sealing - Heat Exchanger No N/A N/A N/A

53

 HX280FC Flue Collector No N/A N/A N/A

53

 HX350FC Flue Collector No N/A N/A N/A

53

 HX406FC Flue Collector No N/A N/A N/A

54

 CZXINS1 Gasket - Sealing (Flue Collector Bottom) No N/A N/A N/A

55

 HX350BF Burner Frame No N/A N/A N/A

55

 HX280BF Burner Frame No N/A N/A N/A

55

 HX406BF Burner Frame No N/A N/A N/A

56b

 HX350BRACE Brace No N/A N/A N/A

56b

 HX406BRACE Brace No N/A N/A N/A

56b

 HX280BRACE Brace No N/A N/A N/A

56a

 HX406SSA Shield, Secondary Air No N/A N/A N/A

56a

 HX350SSA Shield. Secondary Air No N/A N/A N/A

56a

 HX280SSA Shield, Secondary Air No N/A N/A N/A

57

 HX350BKTP Pilot Bracket (Millivolt) No N/A N/A N/A
