SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

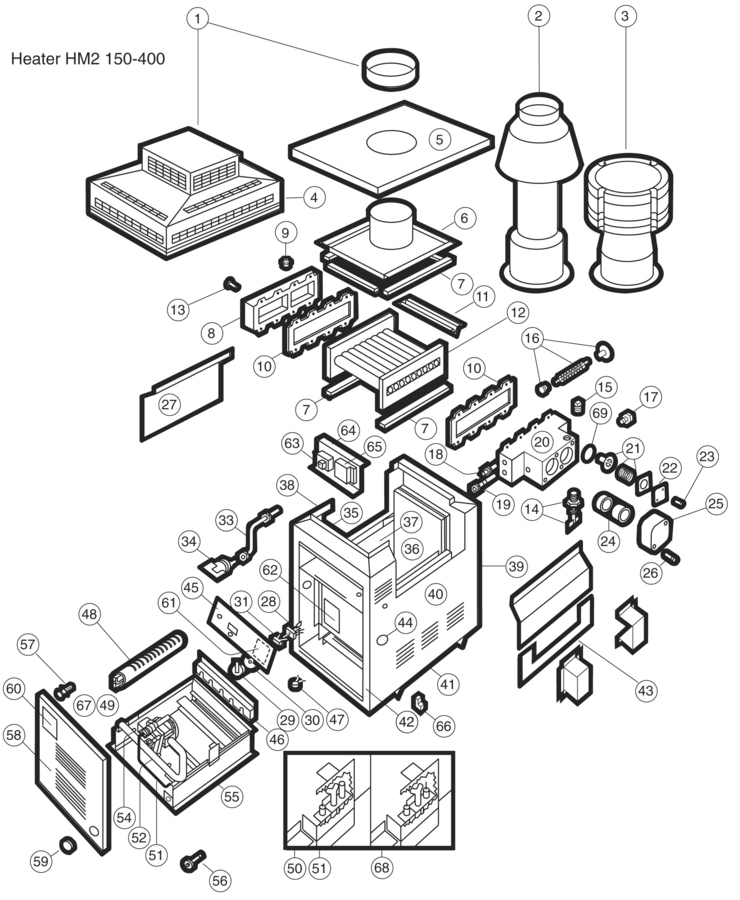

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: Heatmaster HM2 Models 150-400

Hayward Heatmaster-HM2-Models-150400 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

"

 HMXRHA2931 Rear Header Ass'y w/o Gkt. (Bronze) No N/A N/A N/A

-

 CHXRLV1930 Relief Valve Yes 1 Day(s) $41.78

-

 CHXPBR1933 IID Pilot Assembly-Natural No N/A N/A N/A

-

 CHXBDA1153 IID Burner Ass'y. - 150 Natural No N/A N/A N/A

-

 CHXBDA1203 IID Burner Ass'y. - 200 Natural No N/A N/A N/A

-

 CHXBDA1253 IID Burner Ass'y. - 250 Natural No N/A N/A N/A

-

 CHXBDA1354 IID Burner Ass'y. - 350 Propane No N/A N/A N/A

-

 CHXBDA1303 IID Burner Ass'y. - 300 Natural No N/A N/A N/A

-

 CHXBDA1353 IID Burner Ass'y. - 350 Natural No N/A N/A N/A

-

 CHXBDA1403 IID Burner Ass'y. - 400 Natural No N/A N/A N/A

-

 CHXBDA1154 IID Burner Ass'y. - 150 Propane No N/A N/A N/A

-

 CHXBDA1204 IID Burner Ass'y. - 200 Propane No N/A N/A N/A

-

 CHXBDA1254 HD Burner Ass'y. - 250 Propane No N/A N/A N/A

-

 CHXBDA1304 IID Burner Ass'y. - 300 Propane No N/A N/A N/A

-

 CHXBDA1404 IID Burner Ass'y. - 400 Propane No N/A N/A N/A

"

 HMXRHA2930 Rear Header Ass'y w/o Gasket No N/A N/A N/A

-

 CHXTSW1931 3-Way Toggle Switch Yes 1 Day(s) $10.28

-

 HMXDTK2400 Dual Thermostat Kit - 400 No N/A N/A N/A

-

 HMXDTK2350 Dual Thermostat Kit - 350 No N/A N/A N/A

-

 HMXDTK2300 Dual Thermostat Kit - 300 No N/A N/A N/A

-

 HMXDAP2930 Data Plate (a) No N/A N/A N/A

-

 HMXWHA2932 Wire Harn. Ass'y. MV Dual T'stat No N/A N/A N/A

-

 HMXWHA2933 Wire Harn. Ass'y. IID Single T'stat No N/A N/A N/A

-

 HMXWHA2934 Wire Harn. Ass'y. IID Dual T'stat No N/A N/A N/A

-

 HMXDTK2150 Dual Thermostat Kit - 150 No N/A N/A N/A

-

 HMXDTK2200 Dual Thermostat Kit - 200 No N/A N/A N/A

-

 HMXDTK2250 Dual Thermostat Kit - 250 No N/A N/A N/A

4

 CHXPST1932 Pin Stripe Tape - 350 & 400 No N/A N/A N/A

4

 CHXPST1931 Pin Stripe Tape - 150 - 300 No N/A N/A N/A

5

 HMXJKT2350 Jacket Top Assembly - 350 No N/A N/A N/A

5

 HMXJKT2250 Jacket Top Assembly - 250 No N/A N/A N/A

5

 HMXJKT2200 Jacket Top Assembly - 200 No N/A N/A N/A

5

 HMXJKT2150 Jacket Top Assembly - 150 No N/A N/A N/A

5

 HMXJKT2400 Jacket Top Assembly - 400 No N/A N/A N/A

5

 HMXJKT2300 Jacket Top Assembly - 300 No N/A N/A N/A

6

 CHXFCA1200 Flue Collector Assembly - 200 No N/A N/A N/A

6

 CHXFCA1250 Flue Collector Assembly - 250 No N/A N/A N/A

6

 CHXFCA1300 Flue Collector Assembly - 300 No N/A N/A N/A

6

 CHXFCA1150 Flue Collector Assembly - 150 No N/A N/A N/A

6

 CHXFCA1350 Flue Collector Assembly - 350 No N/A N/A N/A

6

 CHXFCA1400 Flue Collector Assembly - 400 No N/A N/A N/A

7

 CHXINF1930 Flue Sealing Material Yes 1 Day(s) $16.87

8-26

 HMXHXA2200 Heat Exchanger Ass'y - 200 No N/A N/A N/A

8

 HMXRHD2931 Rear Header (Bronze) No N/A N/A N/A

8-26

 HMXHXA2350 Heat Exchanger Ass'y - 350 No N/A N/A N/A

8-26

 HMXHXA2402 Heat Ex. Ass'y - 400 (Bronze) No N/A N/A N/A

8-26

 HMXHXA2352 Heat Ex. Ass'y - 350 (Bronze) No N/A N/A N/A

8-26

 HMXHXA2302 Heat Ex. Ass'y - 300 (Bronze) No N/A N/A N/A

8-26

 HMXHXA2150 Heat Exchanger Ass'y - 150 No N/A N/A N/A

8-26

 HMXHXA2250 Heat Exchanger Ass'y - 250 No N/A N/A N/A

8-26

 HMXHXA2300 Heat Exchanger Ass'y - 300 No N/A N/A N/A

8-26

 HMXHXA2400 Heat Exchanger Ass'y - 400 No N/A N/A N/A

8-26

 HMXHXA2151 Heat Ex. Ass'y - 150 (Bronze) No N/A N/A N/A

8-26

 HMXHXA2201 Heat Ex. Ass'y - 200 (Bronze) No N/A N/A N/A

8-26

 HMXHXA2251 Heat Ex. Ass'y - 250 (Bronze) No N/A N/A N/A

8

 HMXRHD2930 Rear Header No N/A N/A N/A

9

 HMXHLI2932 Imer. Hi-Limit Rear Header 160° Yes 1 Day(s) $21.40

10

 CHXGKT1930 Header Gasket (set of 2) Yes Day(s) N/A N/A

11

 CHXBFL1150 ""V"" Baffles - 150 No N/A N/A N/A

11

 CHXBFL1200 ""V"" Baffles - 200 No N/A N/A N/A

11

 CHXBFL1250 ""V"" Baffles - 250 No N/A N/A N/A

11

 CHXBFL1300 ""V"" Baffles - 300 No N/A N/A N/A

11

 CHXBFL1350 ""V"" Baffles - 350 No N/A N/A N/A

11

 CHXBFL1400 ""V"" Baffles - 400 No N/A N/A N/A

12

 CHXHEX1150 Heat Exchanger Only - 150 No N/A N/A N/A

12

 CHXHEX1200 Heat Exchanger Only - 200 No N/A N/A N/A

12

 CHXHEX1250 Heat Exchanger Only - 250 No N/A N/A N/A

12

 CHXHEX1300 Heat Exchanger Only - 300 No N/A N/A N/A

12

 CHXHEX1350 Heat Exchanger Only - 350 Yes 1 Day(s) $1000.63

12

 CHXHEX1400 Heat Exchanger Only - 400 Yes 1 Day(s) $1112.43

13

 CHXBLT1938 Header Bolts (8 pcs.) Yes 1 Day(s) $10.63

14-26

 HMXFHA2931 Ft. Header Assembly (Bronze) No N/A N/A N/A

14

 CHXDRV1930 3/4"" Drain Valve Yes 1 Day(s) $17.19

14-26

 HMXFHA2930 Front Header Assembly No N/A N/A N/A

15

 CHXPLG1930 3/4"" Drain Plug Yes 1 Day(s) $10.39

16

 HMXBYP2930 By-Pass Assembly Yes 1 Day(s) $40.99

17

 HMXHLI2931 Imer. Hi-Limit Front Header 135° No N/A N/A N/A

18

 CHXPSA1930 Pressure Switch Adapter Yes 1 Day(s) $10.38

19

 CHXTBW1930 Thermostat Bulb Well Yes 1 Day(s) $12.08

20

 HMXFHD2931 Front Header Only (Bronze) No N/A N/A N/A

20

 HMXFHD2930 Front Header Only No N/A N/A N/A

21

 HMXFCT2930 Flow Control T'stat Assembly Yes 1 Day(s) $30.86

22

 HMXCPL2931 Cover Plate (Bronze) No N/A N/A N/A

22

 HMXCPL2930 Cover Plate No N/A N/A N/A

23

 HMXCPB2930 Cover Plate Bolts (2 pcs.) No N/A N/A N/A

24

 HMXGKT2930 Flange Compression Gasket (2) Yes 1 Day(s) $44.04

25

 HMXFLG2930 Flange (set of 2) No N/A N/A N/A

26

 CHXBLT1934 Flange Bolts (4 pcs.) Yes 1 Day(s) $13.26

27

 HMXLAC2930 Left Access Cover No N/A N/A N/A

28

 CHXTST1930 Thermostat w/o Knob Yes 1 Day(s) $34.38

29

 CHXTSK1930 Thermostat Knob Yes 1 Day(s) $8.60

30

 CHXTDL1930 Thermostat Lock Dial No N/A N/A N/A

31

 CHXTSW1930 ""On/Off"" Switch Yes 1 Day(s) $10.28

32

 CHXLED1930 LED Indicator Light (not shown) No N/A N/A N/A

33

 CHXPST1930 Pressure Switch Tube No N/A N/A N/A

34

 CHXPRS1931 Pressure Switch Yes 1 Day(s) $40.39

35

 CHXFTF1250 HeatLockTM Front - 250 No N/A N/A N/A

35

 CHXFTF1200 HeatLockTM Front - 200 No N/A N/A N/A

35

 CHXFTF1350 HeatLockTM Front - 350 No N/A N/A N/A

35

 CHXFTF1300 HeatLockTM Front - 300 No N/A N/A N/A
