SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

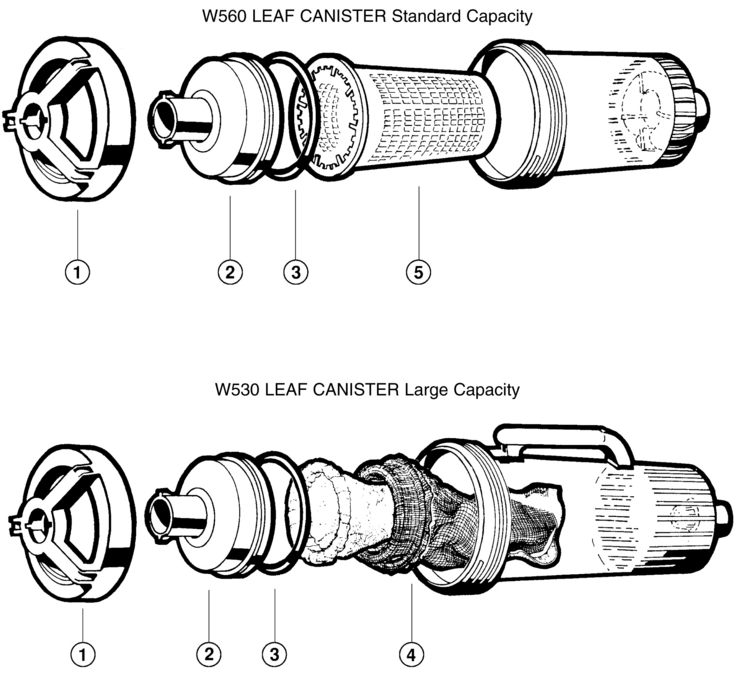

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Hayward
Model Name: Leaf Canisters

Hayward Leaf-Canisters replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 AXV98 Hose Adapter for V096, W530 and W560 No N/A N/A N/A

1

 AXW532 Lock Ring for W530 and W560 Yes 1 Day(s) $23.49

2

 AXW533A Lid w/O-Ring Assembly Yes 1 Day(s) $41.69

3

 AXW542 Leaf Canister O-Ring for W530 and W560 Yes 1 Day(s) $11.87

4

 AXW538 Permanent Bag for W530 Yes 1 Day(s) $25.96

5

 AXW431A Leaf Basket for W430 and W560 Yes 1 Day(s) $8.19
