SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

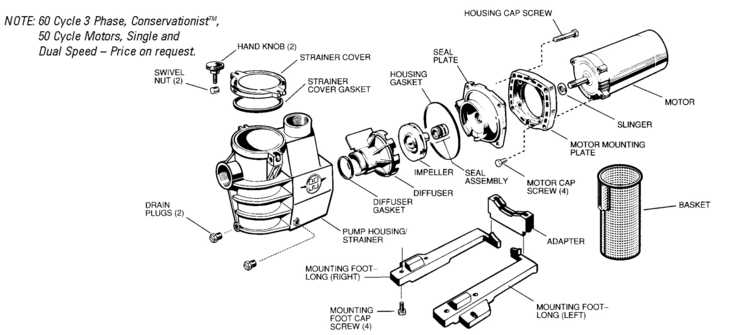

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Hayward
Model Name: Max-Flo Pump Models: SP2800X5, SP2805X7, SP2807X10, SP2810X15, SP2815X20 (Max Rated)

Hayward MaxFlo-Pump-Models-SP2800X5-SP2805X7-SP2 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX2800AA Pump Housing/Strainer accepts Swing Away Knobs, 1 1/2"" x 1 1/2"", w/Drain Plugs (1995 and prior) (a) Yes 1 Day(s) $144.14

SPX125F Slinger No N/A N/A N/A

SPX2800B Diffuser, for all H.P.'s Yes 1 Day(s) $20.20

SPX2600E5 Seal Plate Yes 1 Day(s) $25.82

SPX2800AAC Complete Housing Conversion Kit. Includes housing, strainer cover and gasket, basket, round hand knobs (2), and swivel nuts (2). Yes 1 Day(s) $169.09

SPX2600C Impeller, for 1/2 H.P. Max Rated Yes 1 Day(s) $18.87

SPX2605C Impeller, for 3/4 H.P. Max Rated Yes 1 Day(s) $18.41

SPX2607C Impeller, for 1 H.P. Max Rated Yes 1 Day(s) $19.19

SPX2610C Impeller, for 1 1/2 H.P. Max Rated Yes 1 Day(s) $19.69

SPX2615C Impeller, for 2 H.P. Max Rated Yes 1 Day(s) $24.27

SPX1600Z1M Motor, 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115V) Yes 1 Day(s) $203.89

SPX1605Z1M Motor, 3/4 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $228.16

SPX1607Z1M Motor, 1 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $261.36

SPX1610Z1M Motor, 1 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $294.56

SPX1615Z1M Motor, 2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $369.01

SPX125Z44 Motor Cap Screw (Set of 4) No N/A N/A N/A

SPX1600Z4 Housing Cap Screw Yes 1 Day(s) $2.87

SPX1600F5 Motor Mounting Plate Yes 1 Day(s) $24.27

SPX1250LA Strainer Cover, clear Lexan® w/Gasket (Fits All Models) Yes 1 Day(s) $23.12

SPX125T Strainer Cover Gasket No N/A N/A N/A

SPX1250RA Basket (1994 and prior) Yes 1 Day(s) $6.43

SPX2800M Basket (1995) Yes 1 Day(s) $6.46

SPX1250Z4 Hand Knob, Three Pointed (1994 and prior) Yes 1 Day(s) $7.58

SPX1600PN Hand Knob Kit (1995, includes Swivel Nut and Hand Knob) Yes 1 Day(s) $8.02

SPX1600T Housing Gasket Yes 1 Day(s) $5.27

SPX1600R Diffuser Gasket Yes 1 Day(s) $2.26

SPX1600TRA Seal Assembly Kit (includes Seal Assembly, Housing and Diffuser Gaskets) Yes 1 Day(s) $19.15

SPX1600V 1/4"" Drain Plug (1991 and prior) Yes 1 Day(s) $1.19

SPX2600G1 Mounting Foot w/ Adapter and Screws Yes 1 Day(s) $7.17

SPX1600GJ Mounting Feet - Long (Set Left and Right w/Adapter and 4 Cap Screws) No N/A $22.49

SPX1600Z52 Mounting Foot Cap Screw (Set of 2 - 1995 and prior, 2 sets required) Yes 1 Day(s) $2.87

SPX1600Z2 Seal Assembly Yes 1 Day(s) $12.41

SP2800TG Pressure Test Gasket No N/A N/A N/A
