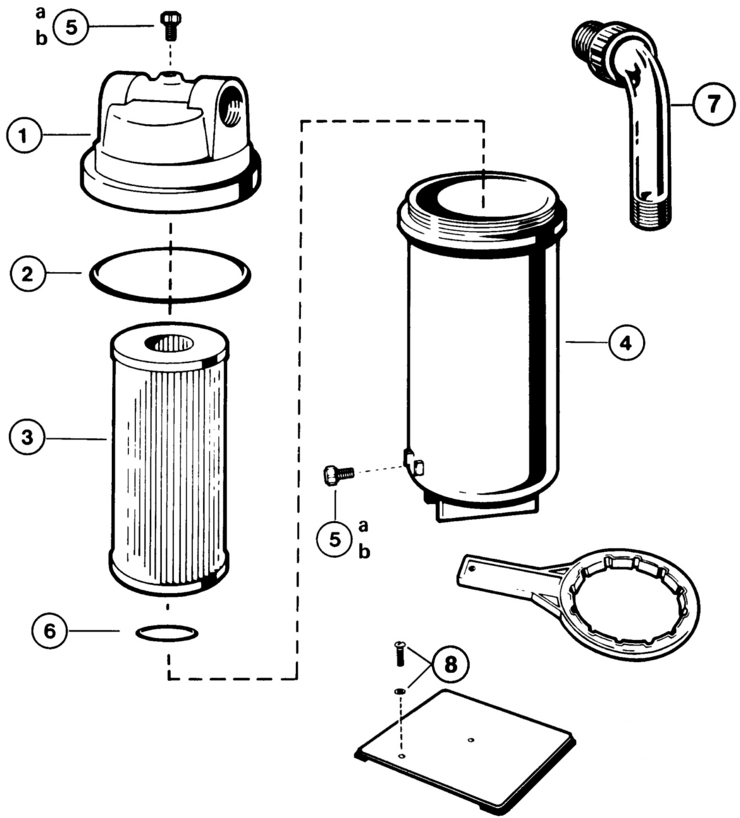

Here is the schematic view you requested:

Manufacturer name: Hayward

Model Name: Micro Star-Clear



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	S200KT	Wrench Tool for Body Housing (Optional)	Yes	1 Day(s)	$10.84
-	S200KT	Wrench Tool for Body Housing (Optional)	Yes	1 Day(s)	$10.84
-	S200KT	Wrench Tool for Body Housing (Optional)	Yes	1 Day(s)	$10.84
-	CX250Z15	By-Pass Plug (Internal)	Yes	1 Day(s)	$1.56
1	CX120AA	Filter Head w/Vent Valve - 1 1/2" NPT	Yes	1 Day(s)	$55.08
2	CX120D	O-Ring	Yes	1 Day(s)	$11.47
3	CX225RE	Cartridge Element - 25 sq. ft. (C225)	Yes	1 Day(s)	$42.89
4	CX120B	Filter Body Housing	Yes	1 Day(s)	$69.55
5a	ECX1321A	Air Relief Valve w/O-Ring	Yes	1 Day(s)	$5.87
6	SPX1485C	Gasket	Yes	1 Day(s)	$6.25
6	SPX1485C	Gasket	Yes	1 Day(s)	$6.25
6	SPX1485C	Gasket	Yes	1 Day(s)	$6.25
6	SPX1485C	Gasket	Yes	1 Day(s)	$6.25
6	SPX1485C	Gasket	Yes	1 Day(s)	$6.25
7	SPX1485BPAK	Threaded Elbow Union Assembly	Yes	1 Day(s)	$54.00
