SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

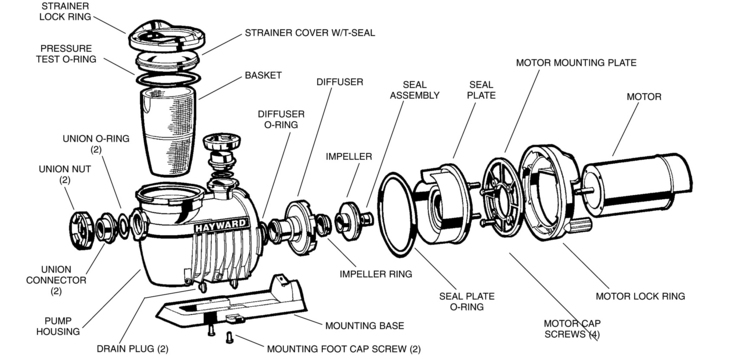

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Hayward
Model Name: Northstar Pump Models: SP4005NS, SP4007NS, SP4010NS, SP4015NS, SP4020NS, SP4030NS

Hayward Northstar-Pump-Models-SP4005NS-SP4007NS- replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1600Z52 Mounting Foot Cap Screw (Set of 2) Yes 1 Day(s) $2.87

SPX4000K Motor Lock Ring Yes 1 Day(s) $34.43

SPX4007CKIT Includes: Impeller for 3/4 H.P., Impeller Ring, Seal Assembly Yes 1 Day(s) $32.01

SPX4010CKIT Includes: Impeller for 1 H.P., Impeller Ring, Seal Assembly Yes 1 Day(s) $33.83

SPX4015CKIT Includes: Impeller for 1 1/2 H.R, Impeller Ring, Seal Assembly Yes 1 Day(s) $36.59

SPX4020CKIT Includes: Impeller for 2 H.P., Impeller Ring, Seal Assembly Yes 1 Day(s) $36.59

SPX4030CKIT Includes: Impeller for 3 H.P., Impeller Ring, Seal Assembly Yes 1 Day(s) $36.59

SPX1605Z1BNS Motor, 1/2 H.P. Yes 1 Day(s) $247.40

SPX1607Z1BNS Motor, 3/4 H.P. Yes 1 Day(s) $275.97

SPX1610Z1BNS Motor, 1 H.P. Yes 1 Day(s) $307.51

SPX1615Z1BNS Motor, 1 1/2 H.P. Yes 1 Day(s) $383.57

SPX1620Z1BNS Motor, 2 H.P. Yes 1 Day(s) $471.76

SPX3021R Impeller Ring - 3/4 through 3 H.P. Yes 1 Day(s) $3.23

SPX125Z44 Motor Cap Screw No N/A N/A N/A

SPX4000F Motor Mounting Plate Yes 1 Day(s) $29.90

SPX4000B Diffuser Yes 1 Day(s) $21.01

SPX4000DLT Strainer Cover Kit (includes: Strainer Cover, Lock Ring, T-Ring) Yes 1 Day(s) $60.72

SPX4000TS Strainer Cover T-Ring (2003- ) Yes 1 Day(s) $19.15

GMX600F Pressure Test O-Ring Yes 1 Day(s) $13.91

SPX4000M Basket Yes 1 Day(s) $14.93

SPX4000UNPAK1 Union Kit (includes: 1 Straight Union Connector, 1 O-Ring, 1 Nut - 2 Kits Required) Yes 1 Day(s) $12.78

SPX4000UNPAK2 Union Kit (includes: 1 Curved Union Connector, 1 O-Ring, 1 Nut) Yes 1 Day(s) $15.53

SPX4000Z1 Union O-Ring/Diffuser O-Ring Yes 1 Day(s) $7.18

SPX4000FG Drain Plug w/Gasket Yes 1 Day(s) $2.39

SPX4000GA Mounting base w/2 Cap Screws Yes 1 Day(s) $25.68

SPX4000E Seal Plate Yes 1 Day(s) $33.61

SPX4000T Seal Plate O-Ring Yes 1 Day(s) $14.57

SPX4000SA2 Seal Assembly (2003- ) (a) Yes 1 Day(s) $14.57

SPX1630Z1BNS Motor, 3 H.P. Yes 1 Day(s) $553.48
