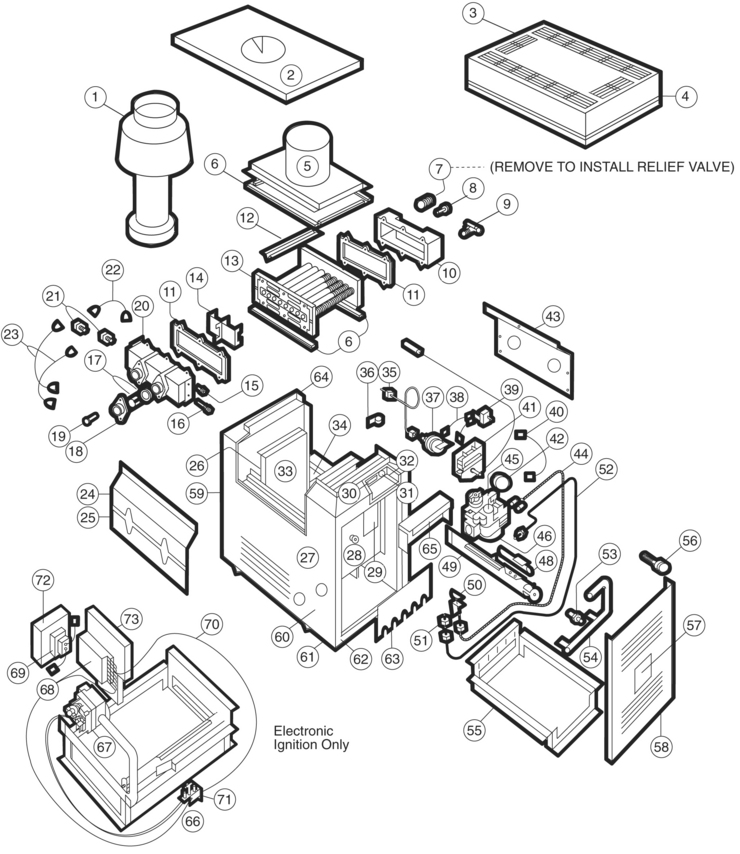

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Hayward
Model Name: PSG II Models 110-355

Hayward PSG-II-Models-110355 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 CZXBDA3956 IID Burner Drawer Ass'y. - 110 No N/A N/A N/A

-

 CZXPSC7515 Carton Assembly - 215 No N/A N/A N/A

-

 CZXPSC7516 Carton Assembly - 255 No N/A N/A N/A

-

 CZXPSC7517 Carton Assembly - 355 No N/A N/A N/A

-

 CZXHTV7519 HTVII Carton - 110 No N/A N/A N/A

-

 CZXHTV7521 HTVII Carton - 180 No N/A N/A N/A

-

 CZXHTV7522 HTVII Carton - 215 No N/A N/A N/A

-

 CZXHTV7523 HTVII Carton - 255 No N/A N/A N/A

-

 CZXHTV7524 HTVII Carton - 355 No N/A N/A N/A

-

 CZXCNK5922 Conversion Kit Prop. to Nat. No N/A N/A N/A

-

 CZXCNK5923 Conversion Kit Nat. to Prop. No N/A N/A N/A

-

 CHXRLV1930 Relief Valve Yes 1 Day(s) $41.78

-

 CZXPSC7514 Carton Assembly - 180 No N/A N/A N/A

-

 CZXPSC7513 Carton Assembly - 150 No N/A N/A N/A

-

 CZXBDA3957 IID Burner Drawer Ass'y. - 150 No N/A N/A N/A

-

 CZXBDA3958 IID Burner Drawer Ass'y. - 180 No N/A N/A N/A

-

 CZXBDA3959 IID Burner Drawer Ass'y. - 215 No N/A N/A N/A

-

 CZXBDA3960 IID Burner Drawer Ass'y. - 255 No N/A N/A N/A

-

 CZXBDA3961 IID Burner Drawer Ass'y. - 355 No N/A N/A N/A

-

 CZXWIR6507 Wire 20"" Green No N/A N/A N/A

-

 CZXWIR6000 Wire 29"" Black No N/A N/A N/A

-

 CZXWIR6001 Wire 10"" White No N/A N/A N/A

-

 GZXWIR6002 Wire 18"" Red No N/A N/A N/A

-

 CZXWIR4502 Wire 18"" Blue No N/A N/A N/A

-

 CZXPSC7512 Carton Assembly - 110 No N/A N/A N/A

-

 CZXPNT1930 Touch-Up Paint Pewter Grey No 0 Day(s) N/A N/A

-

 CZXDTK1907 Dual Thermostat Kit No N/A N/A N/A

-

 CZXWIR6404 Wire 18"" Orange No N/A N/A N/A

-

 CZXTPC2912 Touch-Up Paint Charcoal Grey No N/A N/A N/A

-

 CZXHTV7520 HTVII Carton - 150 No N/A N/A N/A

2

 CZXJKT1010 Jacket Top Assembly - 255 No N/A N/A N/A

2

 CZXJKT1009 Jacket Top Assembly - 215 No N/A N/A N/A

2

 CZXJKT1008 Jacket Top Assembly - 180 No N/A N/A N/A

2

 CZXJKT1007 Jacket Top Assembly - 150 No N/A N/A N/A

2

 CZXJKT1006 Jacket Top Assembly - 110 No N/A N/A N/A

2

 CZXJKT1011 Jacket Top Assembly - 355 No N/A N/A N/A

4

 CZXPST6402 Pin Stripe Tape (2 Pcs. 55"") - All No N/A N/A N/A

5

 CZXFCA3334 Flue Collector Assembly - 255 No N/A N/A N/A

5

 CZXFCA3332 Flue Collector Assembly - 180 No N/A N/A N/A

5

 CZXFCA3331 Flue Collector Assembly - 150 No N/A N/A N/A

5

 CZXFCA3330 Flue Collector Assembly - 110 No N/A N/A N/A

5

 CZXFCA3335 Flue Collector Assembly - 355 No N/A N/A N/A

5

 CZXFCA3333 Flue Collector Assembly - 215 No N/A N/A N/A

6

 CZXINS1 Kaowool Insulation 84"" No N/A N/A N/A

7-22

 CZXHEX7112 Heat Exchanger Assembly - 110 No N/A N/A N/A

7-22

 CZXHEX7113 Heat Exchanger Assembly - 150 No N/A N/A N/A

7-22

 CZXHEX7114 Heat Exchanger Assembly - 180 No N/A N/A N/A

7-22

 CZXHEX7116 Heat Exchanger Assembly - 255 No N/A N/A N/A

7-22

 CZXHEX7117 Heat Exchanger Assembly - 355 No N/A N/A N/A

7-9-1

 CZXBKT7051 Rear Bucket Assembly (Excluding Gasket) No N/A N/A N/A

7-22

 CZXHEX7115 Heat Exchanger Assembly - 215 No N/A N/A N/A

7

 CHXPLG1930 3/4"" Brass Drain Plug Yes 1 Day(s) $10.39

8

 CZXBLT6603 Header Bolts (6 Pcs.) No 0 Day(s) N/A N/A

9

 CZXDRV6802 Drain Valve 3/4"" Yes 1 Day(s) $11.47

11

 CZXGKT7401 Bucket Gasket Set of 2 Yes 1 Day(s) $32.63

12

 CZXBFL3012 ""V"" Baffles 355 (6 Pcs.) No 0 Day(s) N/A N/A

12

 CZXBFL3009 ""V"" Baffles 180 (6 Pcs.) No N/A N/A N/A

12

 CZXBFL3010 ""V"" Baffles 215 (6 Pcs.) No N/A N/A N/A

12

 CZXBFL3011 ""V"" Baffles 255 (6 Pcs.) No N/A N/A N/A

12

 CZXBFL3008 ""V"" Baffles 150 (6 Pcs.) No N/A N/A N/A

12

 CZXBFL3007 ""V"" Baffles 110 (6 Pcs.) No N/A N/A N/A

13

 CZXHEX7110 Heat Exchanger Only - 255 Yes 1 Day(s) $776.74

13

 CZXHEX7107 Heat Exchanger Only - 150 Yes 1 Day(s) $568.79

13

 CZXHEX7106 Heat Exchanger Only - 110 Yes 1 Day(s) $390.77

13

 CZXHEX7109 Heat Exchanger Only - 215 Yes 1 Day(s) $688.03

13

 CZXHEX7108 Heat Exchanger Only - 180 Yes 1 Day(s) $613.01

13

 CZXHEX7111 Heat Exchanger Only - 355 No 0 Day(s) N/A N/A

14

 CZXBYP6812 One Piece By-Pass Yes 1 Day(s) $9.81

14-22

 CZXBKT7050 Front Bucket Assembly No N/A N/A N/A

15

 CHXPSA1930 Pressure Switch Adapter Yes 1 Day(s) $10.38

16

 CHXTBW1930 Thermostat Bulb Well Yes 1 Day(s) $12.08

18

 CZXBKT7003 Flanges Set of 2 No 0 Day(s) N/A N/A

19

 CZXBLT6604 Flange Bolts (4 Pcs.) Yes 1 Day(s) $2.82

20

 CZXBKT7048 Front Bucket Only No N/A N/A N/A

21

 CZXHLI9402 Immersion Hi Limit (Single Unit) Yes 1 Day(s) $25.00

22

 CZXWIR6605 Hi Limit Jumper Wire No 0 Day(s) N/A N/A

23

 CZXWIR6606 Hi Limit Lead Wire Yes 1 Day(s) $8.57

24

 CZXJKT5201 Upper Front Access Cover - All No N/A N/A N/A

25

 CZXJKT4901 Lower Front Access Cover - All No N/A N/A N/A

26

 CZXINS19 Insulation Blanket No N/A N/A N/A

27

 CHXGLC1930 Hole Cover No 0 Day(s) N/A N/A

28

 CZXHYB1700 Bushing No N/A N/A N/A

29

 CZXDAP7228 Data Plate (a) No N/A N/A N/A

30

 CZXNAP2806 Name Plate No N/A N/A N/A

31

 CZXTDL102 Thermostat Dial Lock No N/A N/A N/A

32

 CZXCPA2808 Control Panel Assembly No 0 Day(s) N/A N/A

33

 CZXINS5 FireTileTM Front/Rear - 110 (1 Pc.) No N/A N/A N/A

33

 CZXINS10 FireTileTM Front/Rear - 355 (1 Pc.) No N/A N/A N/A

33

 CZXINS8 FireTileTM Front/Rear - 215 (1 Pc.) No N/A N/A N/A

33

 CZXINS7 FireTileTM Front/Rear -180 (1 Pc.) No N/A N/A N/A

33

 CZXINS6 FireTileTM Front/Rear -150 (1 Pc.) No N/A N/A N/A

33

 CZXINS9 FireTileTM Front/Rear - 255 (1 Pc.) No N/A N/A N/A

34

 CZXINS11 FireTileTM Side Common No N/A N/A N/A

35

 CZXPST1200 Pressure Switch Tube w/Fittings Yes 1 Day(s) $9.58

36

 CZXPSC6402 Pressure Switch Tube Clamp No N/A N/A N/A

37

 CHXPRS1931 Pressure Switch Yes 1 Day(s) $40.39

38

 CZXWIR6502 ""On/Off"" Switch Wires No N/A N/A N/A

39

 CZXTSW1904 ""On/Off"" Switch Yes 1 Day(s) $16.13

40

 CZXWIR6500 Control Wire Yes 1 Day(s) $7.79

41

 CZXTST1907 Thermostat Yes 1 Day(s) $59.27
