SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

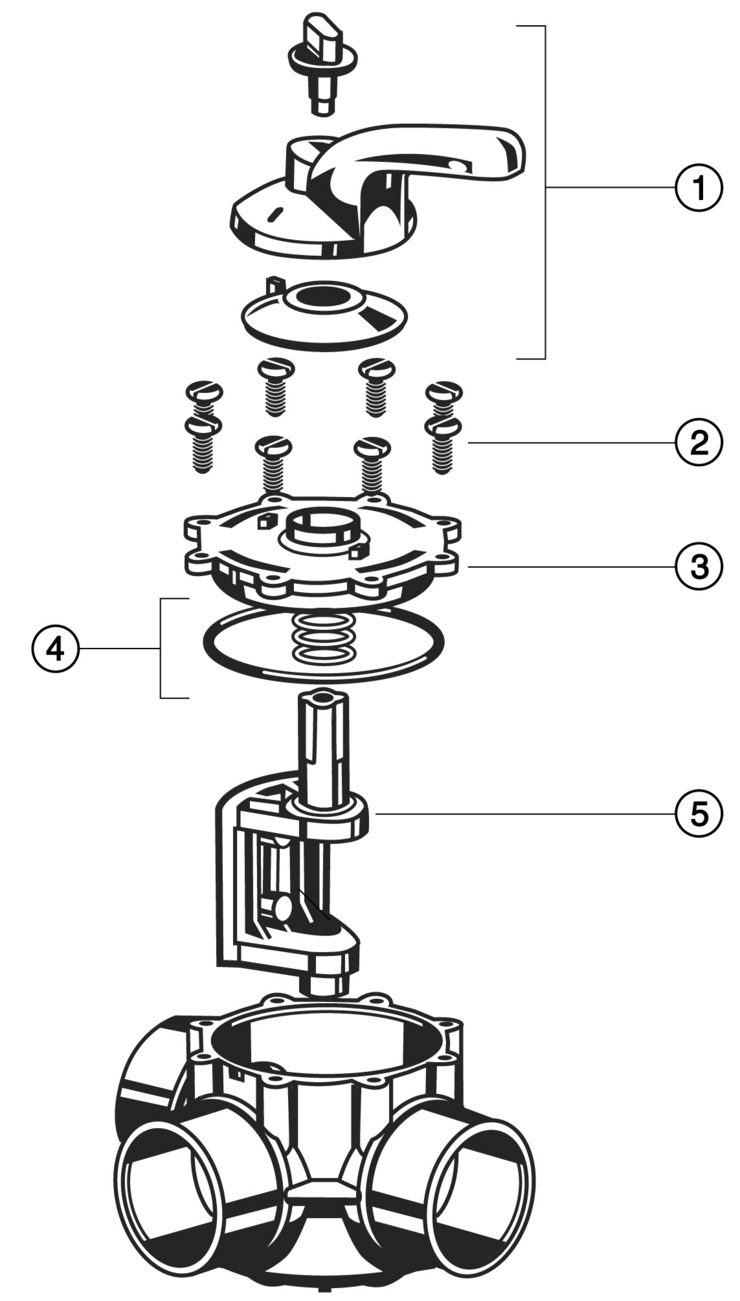

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Hayward
Model Name: PSV Series Valves

Hayward PSV-Series-Valves replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 PSXVBCA Upper Valve Kit (Includes #'s 1-5) Yes 1 Day(s) $42.10

1

 PSXVCA Handle/Index Kit Yes 1 Day(s) $6.36

2

 PSXVZ1A Screw Set (8 pcs.) Yes 1 Day(s) $3.38

3

 PSXVB Cover Yes 1 Day(s) $8.34

4

 PSXVZ2A Key and Cover O-Ring Kit Yes 1 Day(s) $3.26

4

 PSXVDE Valve Key Assembly Yes 1 Day(s) $17.92
