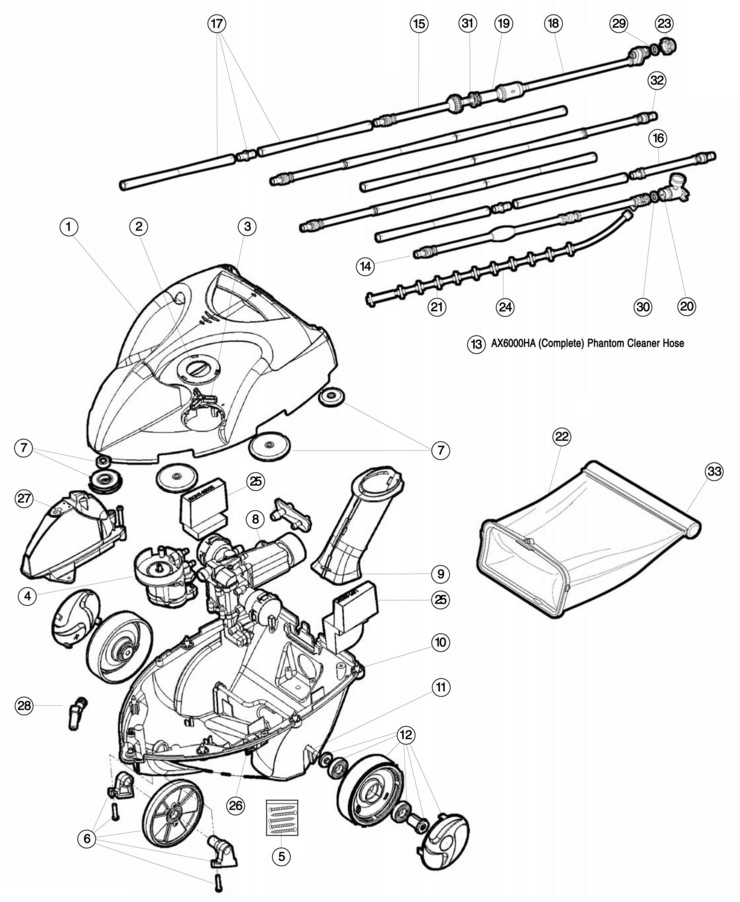

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Hayward

Model Name: Phantom



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	AX6000TA	Deck (w/Wing & Cam Cap)	Yes	1 Day(s)	$128.06
2	AX6001F	Cam Cap	Yes	1 Day(s)	$8.53
4	AX6000GA	Gearbox (w/Cams, Hoses & Ties)	Yes	1 Day(s)	$51.21
6	AX6009BF	Front Wheel (w/Retainer & Bearing)	Yes	1 Day(s)	$16.48
7	AX5000D	Soft Rollers (7 pack w/Bearing)	No	N/A	N/A	N/A
8	AX6000MA	Manifold Assembly (w/Hoses & Ties)	No	N/A	N/A	N/A
10	AX5000A2	Bottom Housing	Yes	1 Day(s)	$140.00
12	AX6009B	Rear Wheels (w/Bearings, Nuts & Hubcaps)	Yes	1 Day(s)	$38.12
13	AX6000HA	Rigid Pressure Hose (complete)	Yes	1 Day(s)	$193.52
14	AX6000HCA	Pressure Hose Cleaner End Assembly (w/o Sweep Hose)	Yes	1 Day(s)	$68.30
15	AX6000HWA2	Pressure Hose and Top of In-Line Filter Assembly	Yes	1 Day(s)	$27.12
16	AX6000HFA	Hose Swivel Assembly	Yes	1 Day(s)	$25.61
17	AX6000HE	Rigid Hose Pipe Section (2 Rigid Pipes & 1 Coupling)	Yes	1 Day(s)	$20.49
18	AX6000HWA1	Wall Quick Connect, Hose, Bottom In-Line Filter Assembly	Yes	1 Day(s)	$46.66
22	AX6000BA	Large Capacity Debris Bag (w/Float)	Yes	1 Day(s)	$33.58
24	AX6000RSHA	Sweep Hose (w/Rollers & Mender Nut)	Yes	1 Day(s)	N/A	N/A
25	AX5500EF	Floats (Left & Right)	Yes	1 Day(s)	$6.26
26	AX6000SWA	Top/Auto/Bot Switch	Yes	1 Day(s)	$11.38
27	AX6000TNKA	Nose Jet Tank	Yes	1 Day(s)	$41.56
28	AX6008M	Front Spin-Out Jet (w/Hose & Tie)	Yes	1 Day(s)	$11.38
30	AX5010G18	Cleaner-Connector O-Ring	Yes	1 Day(s)	$3.42
32	AX5010G5	Pipe Connector O-Ring (6 pack)	No	N/A	N/A	N/A
