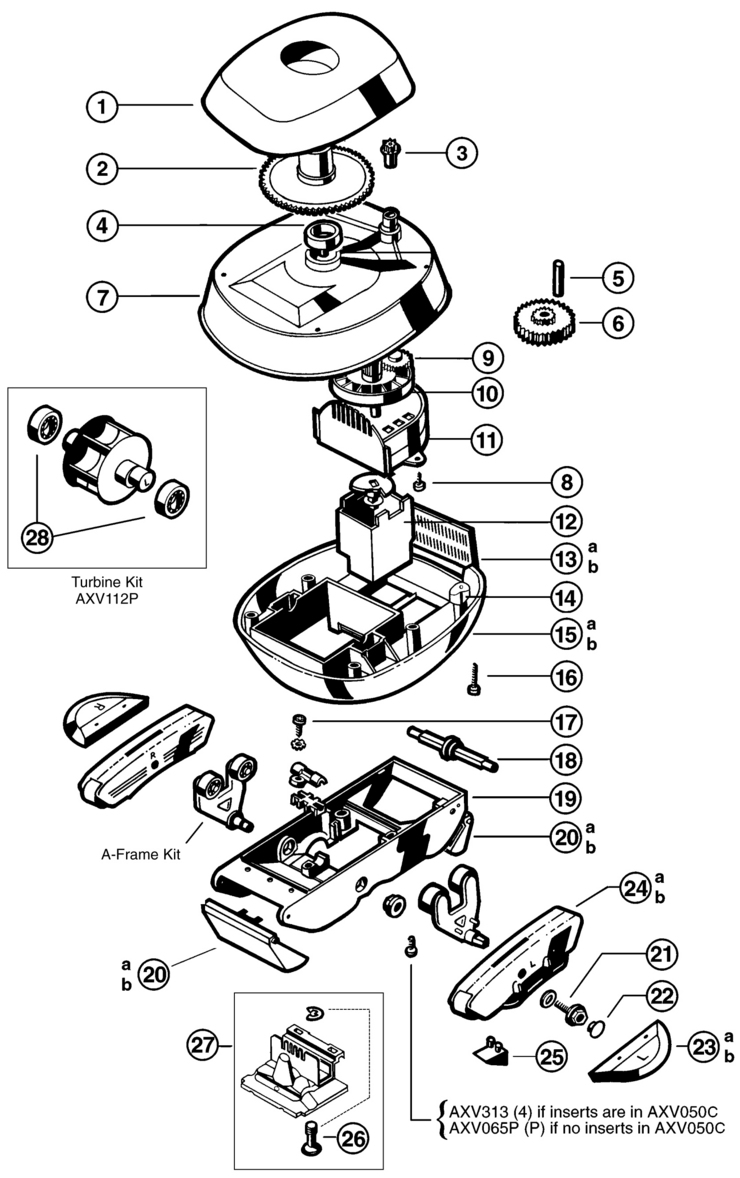

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Hayward

Model Name: Pool Vac Vinyl Model



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV304A	Bottom plate	Yes	1 Day(s)	$36.31
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV304A	Bottom plate	Yes	1 Day(s)	$36.31
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV304A	Bottom plate	Yes	1 Day(s)	$36.31
-	AXV304A	Bottom plate	Yes	1 Day(s)	$36.31
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
-	AXV66A	Spindle gear bushing	No	N/A	N/A	N/A
-	AXV79VP	Medium turbine/spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermedia	No	N/A	N/A	N/A
-	AXV68	Spindle gear screw	No	N/A	N/A	N/A
1	AXV308LG	Top cover for Pool Vac vinyl light gray (exchange only)	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
2	AXV70	Cone Gear clear	No	N/A	N/A	N/A
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
3	AXV303	Cone spindle gear	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
4	AXV306	Cone gear bushing	Yes	1 Day(s)	$16.65
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
5	AXV309	Intermediate gear shaft	Yes	1 Day(s)	$3.48
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
6	AXV301	Intermediate gear	Yes	1 Day(s)	$16.65
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
7	AXV60WH	Upper middle body, white	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
8	AXV65P	Upper body screw (6 pack)	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
9	AXV64A	Medium turbine drive gear	No	N/A	N/A	N/A
