SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

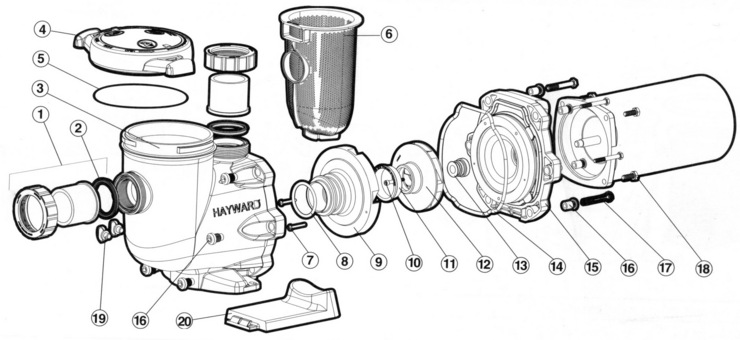

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Hayward
Model Name: Pump Models: SP3207, 3210, 3215, 3220, 3230

Hayward Pump-Models-SP3207-3210-3215-3220-3230 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 SPX3230Z1PE3 3 HP 3 Phase Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $984.95

-

 SPX3207Z1PE 3/4 HP Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $505.28

-

 SPX3210Z1PE 1 HP Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $538.74

-

 SPX3215Z1PE 1 1/2 HP Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $630.23

-

 SPX3220Z2PE 2 HP 2 Sp. Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $944.71

-

 SPX3230Z1PE 3 HP Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $899.64

-

 SPX3210Z2PE 1 HP 2 Sp. Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $664.57

-

 SPX3215Z2PE 1 1/2 HP 2 Sp. Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $776.52

-

 SPX3220Z2PE 2 HP 2 Sp. Power End, Mtr, Seal Plate, Seal Diffuser ( incl. Key nos. 7-18 and motor) Yes 1 Day(s) $944.71

1

 SPX3200UNKIT Union Connector Kit (includes nut, connector, gasket) Yes 1 Day(s) $25.99

2

 SPX3200UG Union Gasket (T-Seal), 50 duro EPDM Yes 1 Day(s) $7.19

3

 SPX3200A Pump Strainer Housing, 2"" X 2"" w/drain plugs, threaded style Yes 1 Day(s) $179.13

4

 SPX3200DLS Strainer Cover Kit (Includes: Strainer Cover, Lock Ring, O-Ring) Yes 1 Day(s) $44.65

5

 SPX3200S Strainer Cover O-Ring Yes 1 Day(s) $8.02

6

 SPX3200M Strainer Basket Yes 1 Day(s) $9.71

7

 SPX3200Z8 Diffuser Screws (2 per) Yes 1 Day(s) $7.17

8

 SPX4000Z1 Diffuser O-Ring Yes 1 Day(s) $7.18

9

 SPX3200B3 Diffuser, 3HP Yes 1 Day(s) $22.34

10

 SPX3200Z1 Impeller Screw Yes 1 Day(s) $3.88

11

 SPX4021R Impeller Ring No N/A N/A N/A

12

 SPX3230C Impeller for 3 HP w/Impeller Screw Yes 1 Day(s) $28.43

12

 SPX3220C Impeller for 2 HP w/Impeller Screw Yes 1 Day(s) $28.43

12

 SPX3215C Impeller for 1 1/2 HP w/Impeller Screw Yes 1 Day(s) $24.27

12

 SPX3210C Impeller for 1 HP w/Impeller Screw Yes 1 Day(s) $20.37

12

 SPX3207C Impeller for 3/4 HP w/Impeller Screw Yes 1 Day(s) $19.60

13

 SPX3200SA Shaft Seal Assembly Yes 1 Day(s) $14.57

14

 SPX3200T Housing O-Ring Yes 1 Day(s) $5.63

15

 SPX3200E Seal Plate Yes 1 Day(s) $28.61

16

 SPX3200Z211 Housing Insert and Seal Plate Spacer Kit Yes 1 Day(s) $13.10

17

 SPX3200Z3 Housing Bolt Yes 1 Day(s) $2.57

18

 SPX3200Z5 Motor Bolt Yes 1 Day(s) $5.29

19

 SPX4000FG Drain Plug w/O-Ring Yes 1 Day(s) $2.39

20

 SPX3200GA Motor Support Bracket Yes 1 Day(s) $23.31
