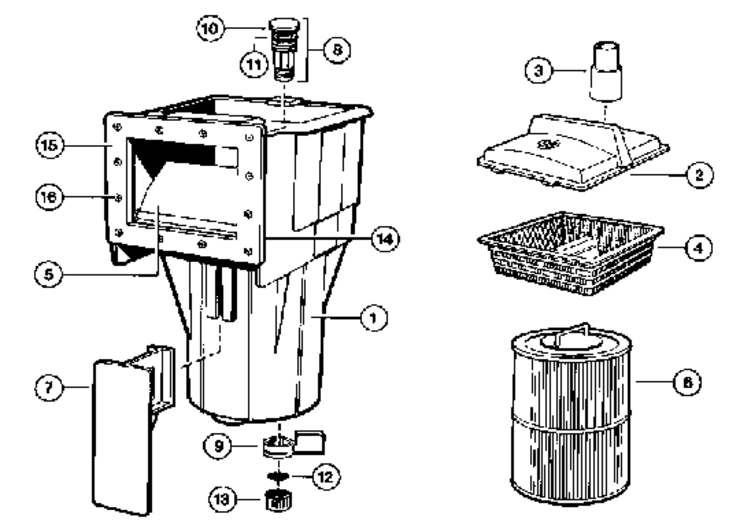

Here is the schematic view you requested:

Category: Skimmers

Manufacturer name: Hayward

Model Name: SF400 Skim Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	SPX1096K	Weir (SF40090)	Yes	1 Day(s)	$17.57
-	SPX1090Z1A	Screw Set (SF40090)	Yes	1 Day(s)	$13.13
-	SPX1090D	Face Plate (SF40090)	Yes	1 Day(s)	$20.11
-	SPX1090E	Gasket (SF40090)	Yes	1 Day(s)	$5.92
1	SPX1082K	Weir (SF400)	Yes	1 Day(s)	$15.65
2a	SFX400Z1	Drain Valve - O-Ring - large (upper)	Yes	1 Day(s)	$1.98
2b	SPX1500M	Drain Valve O-Ring - small (lower)	Yes	1 Day(s)	$4.01
5	SPX1084B	Gasket (SF400)	Yes	1 Day(s)	$5.65
6	SPX1084L	Face Plate (SF400)	Yes	1 Day(s)	$19.43
7	SPX1084Z4A	Screw Set (SF400)	Yes	1 Day(s)	$11.99
8	SFX400FA	Drain Valve Assembly	Yes	1 Day(s)	$13.07
9	SFX400N	Drain Valve Handle	No	N/A	N/A	N/A
