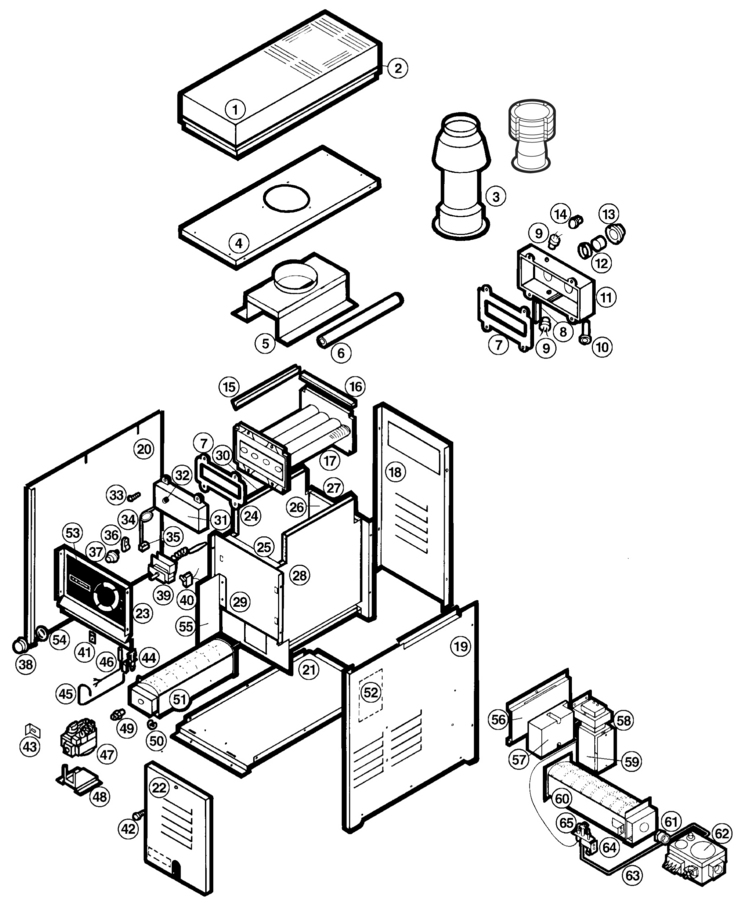

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Hayward

Model Name: SGII 60 Model



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	CZXHEX7088	Heat Exchanger Assembly	No	N/A	N/A	N/A
-	CZXTPG2911	Touch Up Paint Grey	No	N/A	N/A	N/A
-	CZXLBL7202	Warranty Decal	No	N/A	N/A	N/A
-	CZXLBL7208	Flange Gasket Label	No	N/A	N/A	N/A
-	CZXLBL7215	Hot Do Not Touch	No	N/A	N/A	N/A
-	CZXLBL7216	National Fuel Gas Code	No	N/A	N/A	N/A
-	CZXLBL7233	Hot Tub Warning Label	No	N/A	N/A	N/A
-	CZXLBL7259	Lighting Instructions Label	No	N/A	N/A	N/A
-	CZXLBL7240	Pilot Access Label	No	N/A	N/A	N/A
-	CHXRLV1930	Pressure Relief Valve 3/4"" Male	Yes	1 Day(s)	$41.78
-	CZXWlR6505	Wire Pressure Sw. to ""On/Off"" (BR)	No	N/A	N/A	N/A
-	CZXBKT7021	Front Bucket Assembly	No	N/A	N/A	N/A
-	CZXBKT7022	Rear Bucket Assembly	No	N/A	N/A	N/A
-	CZXCCA2116	Combustion Chamber Assembly	No	N/A	N/A	N/A
-	CZXWIR6504	Wire Valve to Thermostat (BK)	Yes	1 Day(s)	$9.30
-	CZXWIR6607	Wire High Limit to Gas Valve (BL)	No	N/A	N/A	N/A
-	CZXWIR6600	Wire High Limit to High Limit (V)	No	N/A	N/A	N/A
-	CZXWIR6501	Wire ""On/Off"" to Thermostat (GY)	No	N/A	N/A	N/A
-	CZXWIR6100	Wire High Limit to Pressure Sw. (R)	No	N/A	N/A	N/A
-	CZXLBL7701	Outlet Label	No	N/A	N/A	N/A
-	CZXLBL7224	Nat. Gas Dayglow Label	No	N/A	N/A	N/A
-	CZXLBL7225	Prop. Gas Dayglow Label	No	N/A	N/A	N/A
-	SGII60NE	ELECTRONIC IGNITION NATURAL GAS ONLY	No	N/A	N/A	N/A
-	CZXWIR4506	Wire Harness	No	N/A	N/A	N/A
-	CZXGRL2900	Ground Lug	Yes	1 Day(s)	$11.16
-	CZXCTC3203	Conduit Connector	No	N/A	N/A	N/A
-	CZXCLP9306	Insulation Clip	No	N/A	N/A	N/A
-	CZXLBL7700	Inlet Label	No	N/A	N/A	N/A
1	HTVII60	HT Vent Top	No	N/A	N/A	N/A
2	CZXPST6402	Pin Stripe Tape	No	N/A	N/A	N/A
3	PV60	PV Vent	No	N/A	N/A	N/A
3a	VCII60	HW Stack	No	N/A	N/A	N/A
4	CZXJKT1112	Jacket Top	No	N/A	N/A	N/A
5	CZXJKF3323	Flue Collector	No	N/A	N/A	N/A
6	CZXTUB1703	Wire Tube	No	N/A	N/A	N/A
7	CZXGKT7408	Bucket Gasket (Set of 2)	Yes	1 Day(s)	$21.04
8	CZXBYP7409	Stainless Steel By-Pass	No	N/A	N/A	N/A
9	CZXHLI9402	High Limit (Single Unit)	Yes	1 Day(s)	$25.00
10	CHXTBW1930	Thermostat Bulb Well	Yes	1 Day(s)	$12.08
11	CZXBKT7020	Front Bucket	No	N/A	N/A	N/A
13	CZXBKT7003	Flange Set	No	0 Day(s)	N/A	N/A
14	CHXPLG1930	Drain Plug	Yes	1 Day(s)	$10.39
15	CZXBFL3013	""V"" Baffles (Set of 3)	No	N/A	N/A	N/A
16	CZXINS1	Kaowool Insulation	No	N/A	N/A	N/A
17	CZXHEX7089	Heat Exchanger	Yes	1 Day(s)	$251.25
18	CZXJKB5701	Jacket Back	No	N/A	N/A	N/A
19	CZXJKR602	Jacket Right Side	No	N/A	N/A	N/A
20	CZXJKL702	Jacket Left Side	No	N/A	N/A	N/A
21	CZXJBA1712	Jacket Bottom Assembly	No	N/A	N/A	N/A
22	CZXJKD5526	Door	No	N/A	N/A	N/A
23	CZXJKC2520	Control Panel	No	N/A	N/A	N/A
24	CZXINS3	FireTileTM Sides (2 Pcs.)	No	N/A	N/A	N/A
25	CZXINS2	FireTileTM Front (1 Pc.)	No	N/A	N/A	N/A
26	CZXINS4	FireTileTM Rear (1 Pc.)	No	N/A	N/A	N/A
27	CZXCCB2113	Combustion Chamber Back	No	N/A	N/A	N/A
28	CZXCCR2114	Combustion Chamber Right	No	N/A	N/A	N/A
29	CZXCCF2112	Combustion Chamber Front	No	N/A	N/A	N/A
30	CZXCCL2115	Combustion Chamber Left	No	N/A	N/A	N/A
31	CZXBKT7019	Rear Bucket	No	N/A	N/A	N/A
32	CHXPSA1930	Pressure Switch Adapter	Yes	1 Day(s)	$10.38
33	CZXBLT6603	Header Bolts	No	0 Day(s)	N/A	N/A
34	CZXPST1206	Pressure Switch Tube	No	N/A	N/A	N/A
35	CZXPST6923	Pressure Switch Fitting	No	N/A	N/A	N/A
36	CZXPSC6402	Pressure Switch Tube Clamp	No	N/A	N/A	N/A
37	CHXPRS1931	Pressure Switch	Yes	1 Day(s)	$40.39
38	CZXTSK2002	Thermostat Knob	No	N/A	N/A	N/A
39	CZXTST1907	Thermostat	Yes	1 Day(s)	$59.27
40	CZXTSW1904	""On/Off"" Switch	Yes	1 Day(s)	$16.13
41-42	CHXDSW1930	Door Screw and Clip	Yes	1 Day(s)	$7.23
43	CZXPAC911	Pilot Access Cover	No	N/A	N/A	N/A
44	CZXPBR812	Pilot Assembly Natural	No	N/A	N/A	N/A
44-51	CZXBDA3951	Burner Assembly Natural	No	N/A	N/A	N/A
44-51	CZXBDA3950	Burner Assembly Propane	No	N/A	N/A	N/A
44	CZXPBR811	Pilot Assembly Propane	No	N/A	N/A	N/A
45	CZXPTB903	Pilot Tube	No	N/A	N/A	N/A
46	CHXGEN1930	Pilot Generator	Yes	1 Day(s)	$38.45
47	CZXVAL332	Gas Valve Propane	No	N/A	N/A	N/A
47	CZXVAL345	Gas Valve Natural	No	N/A	N/A	N/A
48	CZXGVB4501	Gas Valve Bracket	No	N/A	N/A	N/A
49	CZXORF616	Main Burner Orifice Propane	No	N/A	N/A	N/A
49	CZXORF637	Main Burner Orifice Natural	No	N/A	N/A	N/A
50	CZXCLP6501	Orifice Retainer Clip	No	N/A	N/A	N/A
51	CZXBNR2309	Main Burner	No	N/A	N/A	N/A
52	CZXDAP7256	Data Plate (a)	No	N/A	N/A	N/A
53	CZXLBL7258	Control Panel Label	No	N/A	N/A	N/A
54	CZXTDL102	Thermostat Dial Lock	No	N/A	N/A	N/A
55	CZXSLD915	Louver Shield	No	N/A	N/A	N/A
56	CZXMMB4506	Module Mounting Bracket	No	N/A	N/A	N/A
57	CHXMOD4005	Ignition Module	No	N/A	N/A	N/A
58	CZXTRF4024	D/V Transformer	No	N/A	N/A	N/A
59	CZXJBX3208	Junction Box	No	N/A	N/A	N/A
60	CZXBNR2319	Main Burner	No	N/A	N/A	N/A
60-65	CZXBDA3953	Burner Assembly Natural IID	No	N/A	N/A	N/A
61	CZXORF4001	Main Burner Orifice	No	N/A	N/A	N/A
62	CZXVAL326	Gas Valve	No	N/A	N/A	N/A
63	CZXPTB903	Pilot Tube	No	N/A	N/A	N/A
64	CZXFLS0815	Ignition Sensor	No	N/A	N/A	N/A
65	CZXPBR814	Pilot Assembly	No	N/A	N/A	N/A
