SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

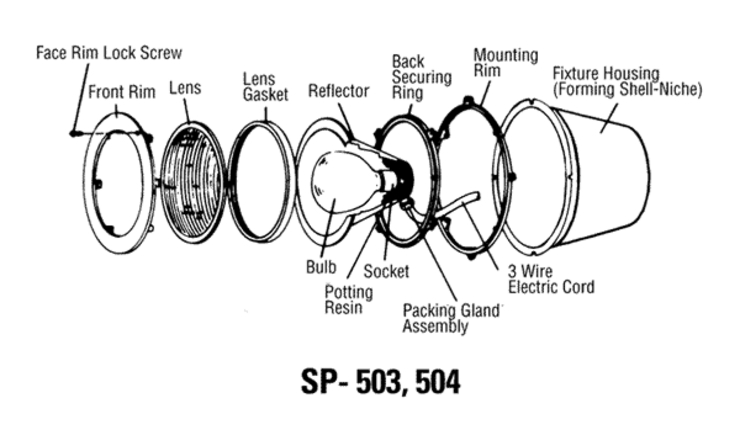

Here is the schematic view you requested:

Category: Lights and Niches
Manufacturer name: Hayward
Model Name: SP0503 (400W. 120V), SP0504 (500W. 110V.)

Hayward SP0503-400W-120V-SP0504-500W-110V replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX503Z5 Bulb, 400W. 120V., G/FL No N/A N/A N/A

SPX504Z4 Bulb, 500W. 120V., R-40 Mogul Base (1958-1970) No N/A N/A N/A

SPX504Z7 Bulb, 500W. 120V., R-40 Medium Base No N/A N/A N/A

SPX503Z2C Lens Clear (Tempered), 8 3/8"" No N/A N/A N/A

SPX503W Lens Gasket, Special Hi-Temp No N/A N/A N/A

SPX503Z20A Face Rim Lockscrew w/Washer No N/A N/A N/A

SPX503XA Spring Clip w/Screw (1953-1965) No N/A $4.45

SPX503A Front Rim, CPB No N/A N/A N/A

SPX503Z76 Securing Rim Screw (Set of 6) No N/A N/A N/A
