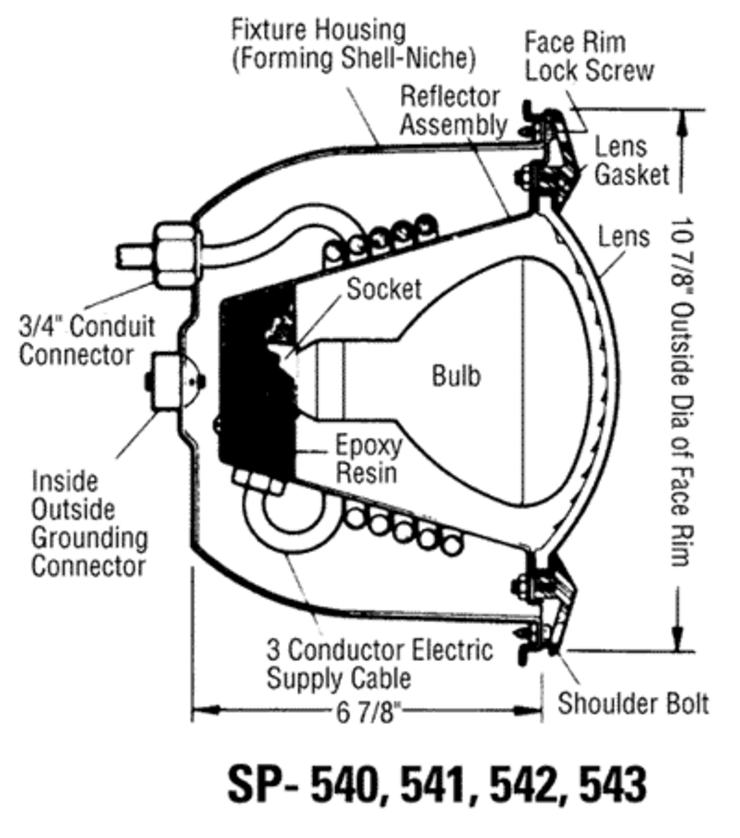

Here is the schematic view you requested:

Category: Lights and Niches

Manufacturer name: Hayward

Model Name: SP0540, 0541, 0542, 0543 (StarLite Series)



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX540A	Molded Face Rim w/Studs	No	N/A	N/A	N/A
	SPX542Z4	300W. 120V. Bulb R-40	No	N/A	N/A	N/A
	SPX541Z1	300W. 12V. Bulb R-40	No	N/A	N/A	N/A
	SPX510A	100W. 12V. Bulb R-30	No	N/A	N/A	N/A
	SPX1392G10	Washer - Pkg. of 10	Yes	1 Day(s)	$3.22
	SPX540Z4A	No. 10-24 Hex. Nut w/Washer for Face Rim Studs	No	N/A	N/A	N/A
	SPX555Z3	Set Screw for Ground Connector	No	N/A	N/A	N/A
	SPX555Z2	Lower Mounting Screw	No	N/A	N/A	N/A
	SPX540Z16A	Face Rim Lockscrew w/Fastener	No	N/A	N/A	N/A
	SPX540Z2	Lens Gasket, Special Hi-Temp	No	N/A	N/A	N/A
	SPX540Z1	Lens - Clear 7 9/16"" Diameter (Tempered)	No	N/A	N/A	N/A
	SPX504Z7	500W. 120V. Bulb R-40	No	N/A	N/A	N/A
