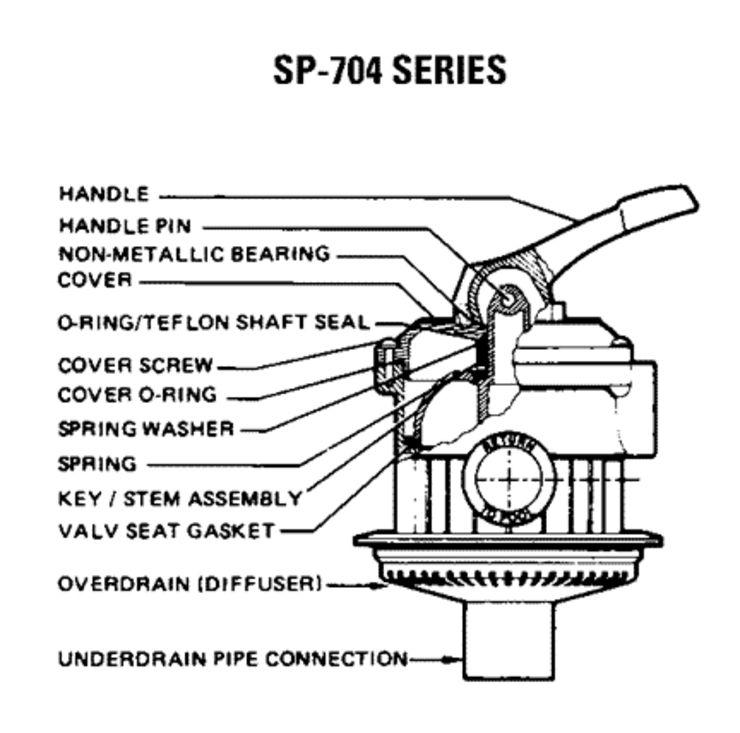

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Hayward

Model Name: SP0704, 1 1/2 Vari-Flo Valve - 4 Position



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX710XF	Handle	No	N/A	N/A	N/A
	SPX704BA	Key, Cover, Gasket and Handle Assembly	No	N/A	N/A	N/A
	SPX704CA	Key and Gasket Assembly	No	N/A	N/A	N/A
	SPX704D	Valve Key Gasket	No	N/A	N/A	N/A
	SPX710Z62	Spring Washers (Set of 2)	No	N/A	N/A	N/A
	SPX603S	Spring	No	N/A	N/A	N/A
	SPX704Z1A	Cover Screw (Set of 6)	No	N/A	N/A	N/A
	SPX704HA	O-Ring/Teflon Shaft Seal	No	N/A	N/A	N/A
	SPX704F	Cover O-Ring	No	N/A	N/A	N/A
	SPX704B2	Cover, Black	No	N/A	N/A	N/A
	SPX710Z16	Non-Metallic Bearing	No	N/A	N/A	N/A
	SPX710XZ7	Handle Pin	No	N/A	N/A	N/A
	SPX704AA	Valve Body w/Diffuser	No	N/A	N/A	N/A
