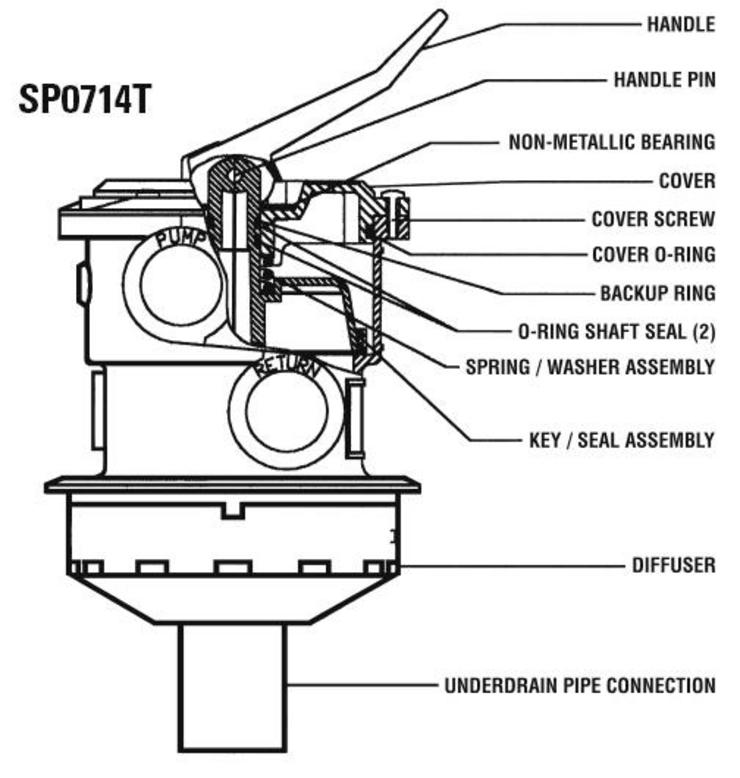

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Hayward

Model Name: SP0714T Vari-Flo XL Valve



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX710XF	Handle	No	N/A	N/A	N/A
	SPX714D	Diffuser	No	N/A	N/A	N/A
	SPX714CA	Key/Seal Assembly	No	N/A	N/A	N/A
	SPX710Z62	Spring Washers (Set of 2)	No	N/A	N/A	N/A
	SPX735GA	O-Ring Shaft Seal Assembly (a)	No	N/A	N/A	N/A
	SPX714L	Cover O-Ring	No	N/A	N/A	N/A
	SPX714Z1	Cover Screw (Set of 6)	No	N/A	N/A	N/A
	SPX714BA	Key, Cover and Handle Assembly	No	N/A	N/A	N/A
	SPX710Z16	Non-Metallic Bearing	No	N/A	N/A	N/A
	SPX710XZ7	Handle Pin	No	N/A	N/A	N/A
	SPX714A	Valve Body w/Gasket and Sight Glass	No	N/A	N/A	N/A
