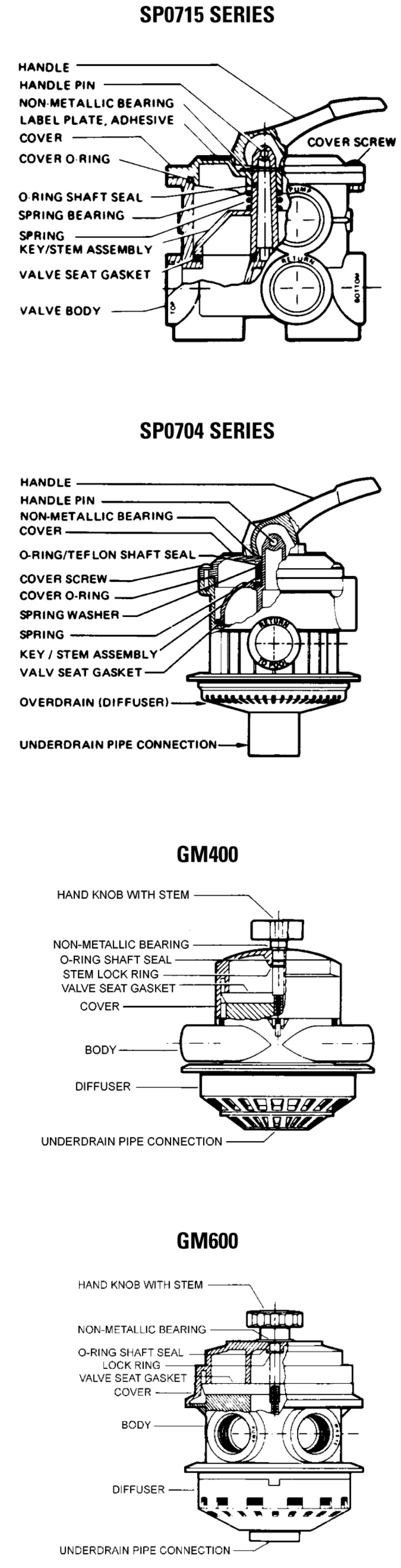

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Hayward

Model Name: SP0715, 0716 2 Vari-Flo Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX710FL	Handle, Large	No	N/A	N/A	N/A
	SPX715XR50AA	Valve Body w/Gasket & Sight Glass - w/Filter Tank Pipes and Locknuts. ""Reverse"" style - for DE only	No	N/A	N/A	N/A
	SPX715ALLAA	Valve Body w/Gasket & Sight Glass - Style ""ALL""	No	N/A	N/A	N/A
	SPX715BA3	Key, Cover and Handle Assembly, Black	No	N/A	N/A	N/A
	SPX715BA	Key, Cover and Handle Assembly, White	No	N/A	N/A	N/A
	SPX715C	Key/Stem Assembly - Noryl	No	N/A	N/A	N/A
	SPX715D	Valve Seat Gasket	No	N/A	N/A	N/A
	SPX710K	1/4"" Plastic Pipe Plug	No	N/A	N/A	N/A
	SPX735GA	O-Ring/Teflon Shaft Seal	No	N/A	N/A	N/A
	SPX710Z62	Spring Washers (Set of 2)	No	N/A	N/A	N/A
	SPX603S	Spring	No	N/A	N/A	N/A
	SPX715Z1	Cover O-Ring	No	N/A	N/A	N/A
	SPX710Z1A	Cover Screw w/Nut (Set of 6 each)	No	N/A	N/A	N/A
	SPX710Z16	Non-Metallic Bearing	No	N/A	N/A	N/A
	SPX710XZ7	Handle Pin	No	N/A	N/A	N/A
	SPX715F	Handle, Standard	No	N/A	N/A	N/A
	SPX710MA	Threaded Sight Glass w/Gasket	No	N/A	N/A	N/A
