SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

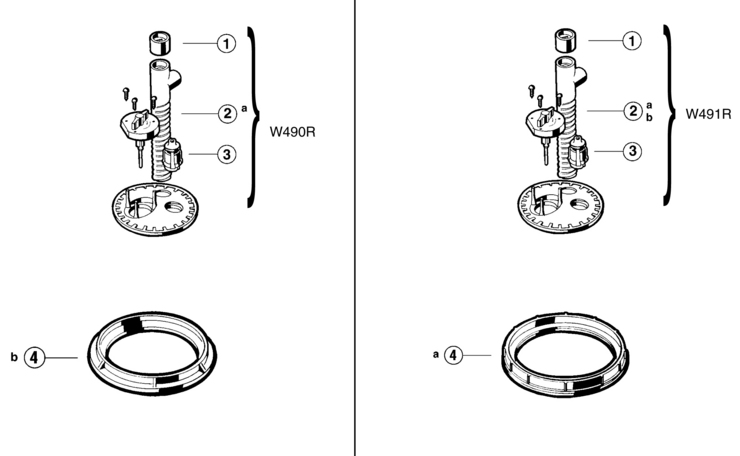

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Hayward
Model Name: Skimmer Vacuum PlatesW490R, W491R Series

Hayward Skimmer-Vacuum-PlatesW490R-W491R-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 AXW524 Adapter kit for Baker Hydro skimmer Yes 1 Day(s) $31.17

2a

 AXW424 Stand pipe, long (for Baker Hydro only) Yes 1 Day(s) $18.53

2b

 AXW473 Standpipe, short Yes 1 Day(s) $15.49

3

 AXW428A Pressure Relief Valve Assembly Yes 1 Day(s) $22.83

4a

 AXW436A Adapter ring for Baker Hydro Yes 1 Day(s) $25.02

4b

 AXW475 Adapter ring for W480 and W490 (not required for Pac-Fab SkimClean) Yes 1 Day(s) $15.28
