SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

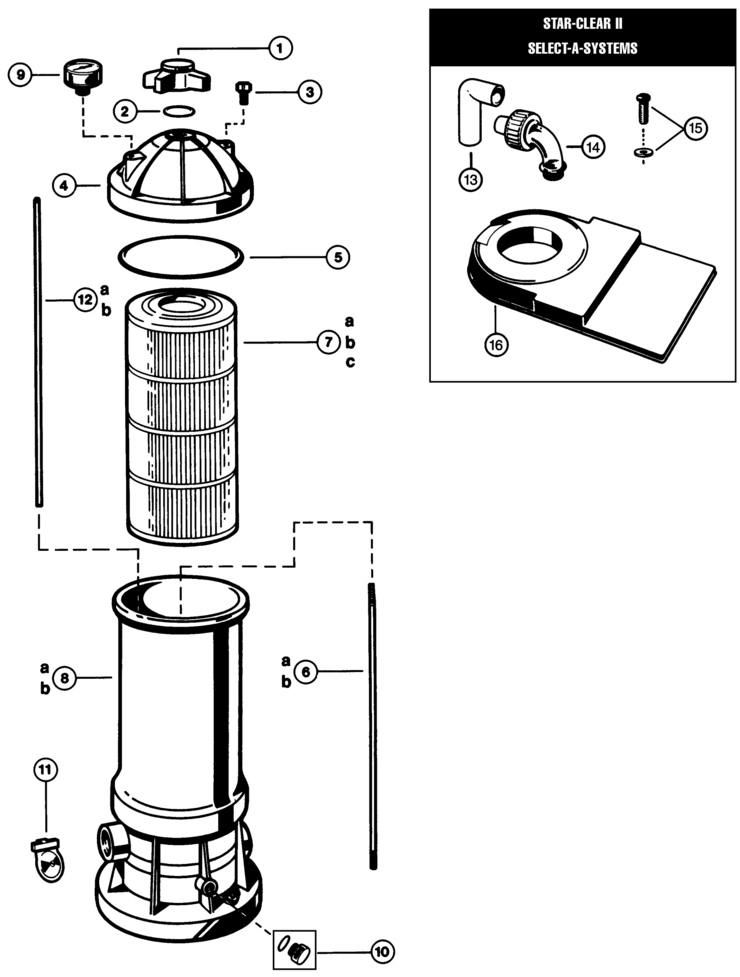

Here is the schematic view you requested:

Manufacturer name: Hayward

Model Name: Star-Clear II



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	CX1500C	Cartridge Joiner (To join two C800RE cartridges in C1500 Filter)	Yes	1 Day(s)	$7.71
-	CX1100DB	D.E. Collector Bag Assembly	Yes	1 Day(s)	$161.68
1	CX800G	Locking Knob	Yes	1 Day(s)	$24.44
2	CX250Z7	O-Ring	Yes	1 Day(s)	$2.72
2	CX250Z7	O-Ring	Yes	1 Day(s)	$2.72
4	CX800C	Filter Head (Cover) w/Air Relief Valve	Yes	1 Day(s)	$93.64
5	CX800F	Filter Head O-Ring	Yes	1 Day(s)	$26.79
7c	CX800RE	Cartridge Element - (C1500 required)	Yes	1 Day(s)	$149.29
7b	CX1100RE	Cartridge Element (C1100)	Yes	1 Day(s)	$188.57
7c	CX800RE	Cartridge Element - (C1500 required)	Yes	1 Day(s)	$149.29
8a	CX800AA	Filter Tank Body, - 1 1/2" (C800) (a)	Yes	1 Day(s)	$500.58
8c	CX1500AA	Filter Tank Body, - 1 1/2" (C1500) (a)	Yes	1 Day(s)	$678.76
11	CX800HA	Check Valve Assembly (optional)	Yes	1 Day(s)	$29.56
13	ECX1326A	Flex Loop Elbow	Yes	1 Day(s)	$18.32
13	ECX1326A	Flex Loop Elbow	Yes	1 Day(s)	$18.32
14	SPX14853	Sweep Elbow Union Assembly	Yes	1 Day(s)	$43.67
14	SPX14853	Sweep Elbow Union Assembly	Yes	1 Day(s)	$43.67
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
15	ECX1108A	Pump Mounting Screw w/Washer	Yes	1 Day(s)	$5.17
16	EC1161PAK	Platform Base w/Screws - Low Profile	Yes	1 Day(s)	$61.06
16	EC1161PAK	Platform Base w/Screws - Low Profile	Yes	1 Day(s)	$61.06
16	EC1161PAK	Platform Base w/Screws - Low Profile	Yes	1 Day(s)	$61.06
16	EC1161PAK	Platform Base w/Screws - Low Profile	Yes	1 Day(s)	$61.06
16	EC1161PAK	Platform Base w/Screws - Low Profile	Yes	1 Day(s)	$61.06
16	EC1161PAK	Platform Base w/Screws - Low Profile	Yes	1 Day(s)	$61.06
