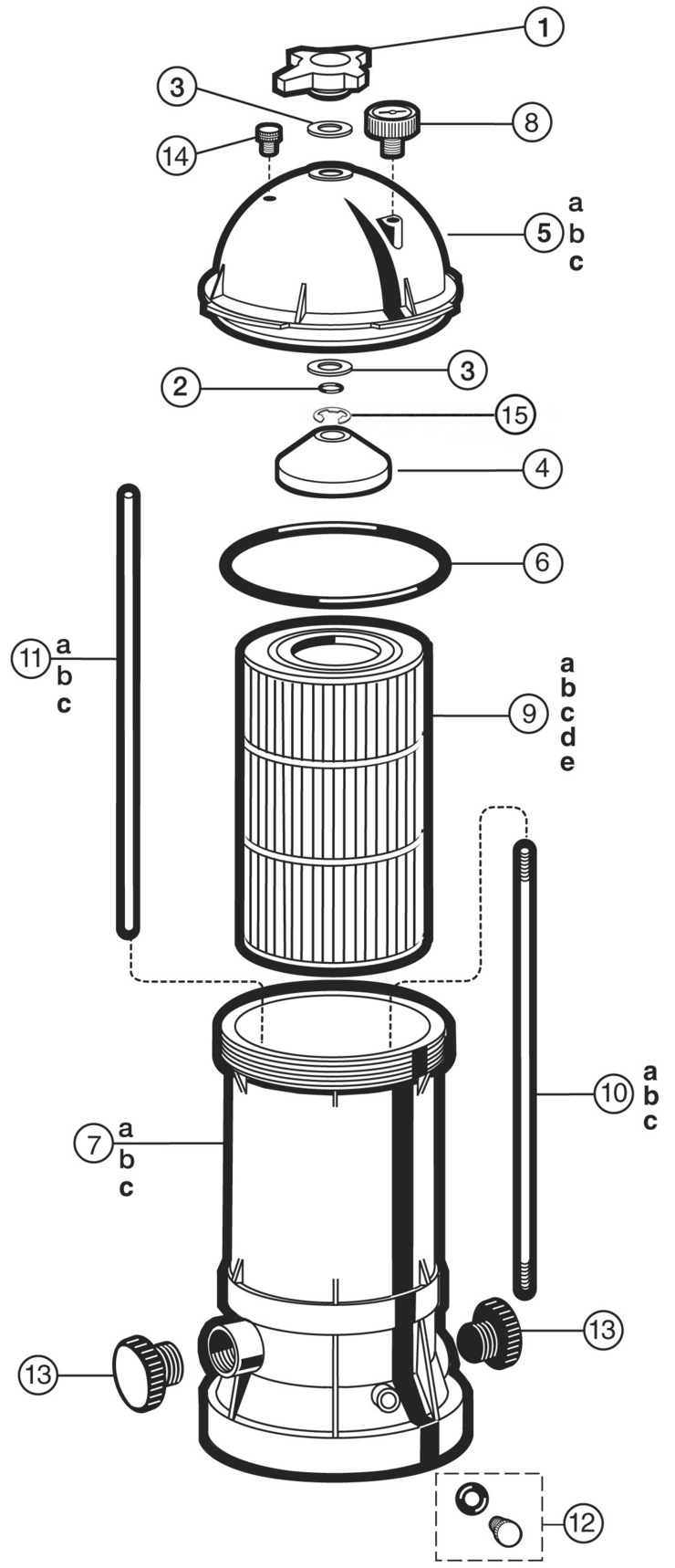

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Hayward

Model Name: Star-Clear Plus



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	CX900DBA	D.E. Collector Bag Assembly (after May 2004)	Yes	1 Day(s)	$107.55
-	CX1200AA2	Filter Body - 2" FIP (C12002, C12002S)	Yes	1 Day(s)	$479.25
-	CX900AA2	Filter Body - 2" FIP (C7512, C9002, C9002S)	Yes	1 Day(s)	$443.42
-	CX1750G	Locking Knob (C1750 Series)	Yes	1 Day(s)	$42.66
-	CX900DB	D.E. Collector Bag Assembly (May 2004 and prior)	Yes	1 Day(s)	$117.81
1	CX900G	Locking Knob (C900, C1200 Series)	Yes	1 Day(s)	$31.50
2	CX900H	O-Ring	Yes	1 Day(s)	$4.01
3	CX900W	Washer (2 required)	Yes	1 Day(s)	$5.44
4	CX900D	Guide Cone	Yes	1 Day(s)	$8.87
5c	CX1750B	Filter Head w/Directional Vent Valve (C1750 Series)	Yes	1 Day(s)	$223.45
5a	CX900B	Filter Head w/Directional Vent Valve (C751, C900 Series)	Yes	1 Day(s)	$102.94
5b	CX1200B	Filter Head w/Directional Vent Valve (C1200 Series)	Yes	1 Day(s)	$157.10
6	CX900F	Filter Head O-Ring	Yes	1 Day(s)	$26.41
7b	CX1200AA	Filter Body-1 1/2" FIP (C1200)	Yes	1 Day(s)	$479.25
7a	CX900AA	Filter Body-1 1/2" FIP (C751, C900)	Yes	1 Day(s)	$443.42
7c	CX1750AA2	Filter Body - 2" FIP (C17502, C17502S)	Yes	1 Day(s)	$355.05
8	ECX271261	Pressure Gauge	Yes	1 Day(s)	$12.41
9d	CX1750RE	Cartridge Element (C1750 Series)	Yes	1 Day(s)	$296.53
9c	CX1200RE	Cartridge Element (C1200 Series)	Yes	1 Day(s)	$199.15
9b	CX900RE	Cartridge Element (C900 Series)	Yes	1 Day(s)	$158.89
9e	CX1900RE	Cartridge Element (C1900 Series)	Yes	1 Day(s)	$139.14
9a	CX760RE	Cartridge Element (C751 Series)	Yes	1 Day(s)	$140.76
10a	CX800Z2	Tie Rod (C751, C900 Series)	Yes	1 Day(s)	$117.74
10b	CX1100Z2	Tie Rod (C1200 Series)	Yes	1 Day(s)	$141.98
10a	CX800Z2	Tie Rod (C751, C900 Series)	Yes	1 Day(s)	$117.74
10b	CX1100Z2	Tie Rod (C1200 Series)	Yes	1 Day(s)	$141.98
10c	CX1750Z2	Tie Rod (C1750 Series)	Yes	1 Day(s)	$105.27
11b	CX1100Z4	Auto Air Relief Tube (C1200 Series)	Yes	1 Day(s)	$9.58
11b	CX1100Z4	Auto Air Relief Tube (C1200 Series)	Yes	1 Day(s)	$9.58
11c	CX1750Z4	Auto Air Relief Tube (C1750 Series)	Yes	1 Day(s)	$6.82
11a	CX800Z4	Auto Air Relief Tube (C900 Series)	Yes	1 Day(s)	$8.75
11b	CX1100Z4	Auto Air Relief Tube (C1200 Series)	Yes	1 Day(s)	$9.58
11a	CX800Z4	Auto Air Relief Tube (C900 Series)	Yes	1 Day(s)	$8.75
11b	CX1100Z4	Auto Air Relief Tube (C1200 Series)	Yes	1 Day(s)	$9.58
12	CX250Z14A	Drain Plug Kit (includes Plug & O-Ring)	Yes	1 Day(s)	$6.12
12	CX250Z14A	Drain Plug Kit (includes Plug & O-Ring)	Yes	1 Day(s)	$6.12
12	CX250Z14A	Drain Plug Kit (includes Plug & O-Ring)	Yes	1 Day(s)	$6.12
13	CX900K	2" PVC Socket Connector (Set of 2)	Yes	1 Day(s)	$20.01
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
14	ECX1322A	Directional Vent Valve w/O-Ring	Yes	1 Day(s)	$6.63
15	CX900J	E-Ring	Yes	1 Day(s)	$4.01
