SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

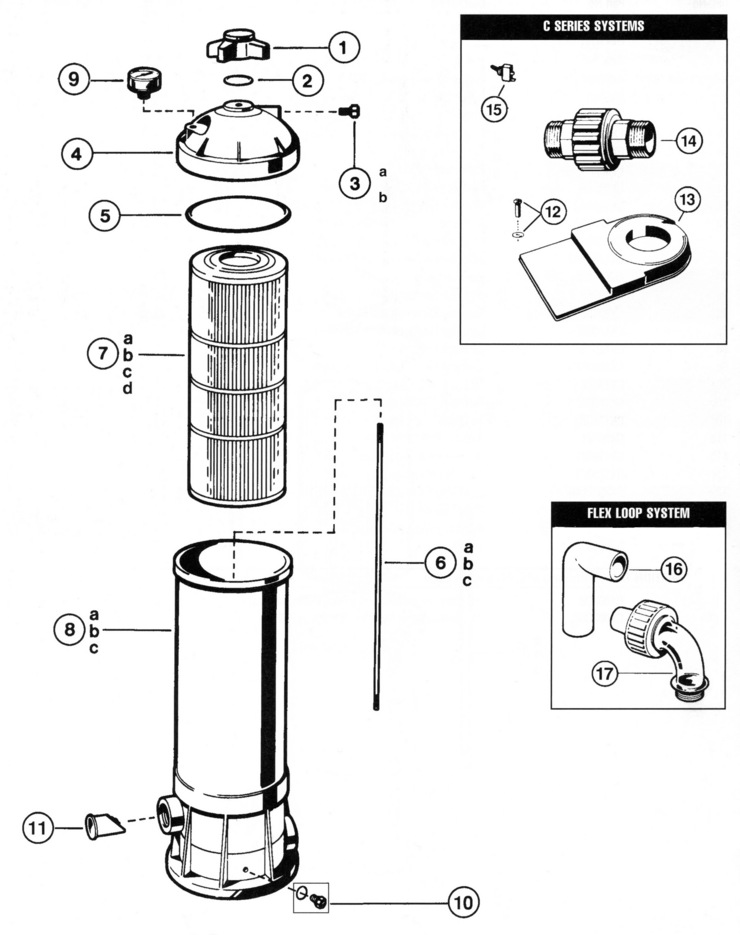

Here is the schematic view you requested:
Manufacturer name: Hayward
Model Name: Star-Clear

Hayward StarClear replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 SPX1250WA 6 Ft. Cord Set - No. 14/3 AWG Yes 1 Day(s) $21.57

-

 ECX1248 Cord Strain Relief Yes 1 Day(s) $5.72

-

 SPX1550WA 25 Ft. Cord Set - No. 14/3 AWG Yes 1 Day(s) $60.68

-

 SPX1250WA 6 Ft. Cord Set - No. 14/3 AWG Yes 1 Day(s) $21.57

-

 SPX1250WA 6 Ft. Cord Set - No. 14/3 AWG Yes 1 Day(s) $21.57

-

 SPX1250WA 6 Ft. Cord Set - No. 14/3 AWG Yes 1 Day(s) $21.57

-

 SPX1250WA 6 Ft. Cord Set - No. 14/3 AWG Yes 1 Day(s) $21.57

1

 CX250G Locking Knob Yes 1 Day(s) $18.12

3b

 SPX1082Z410 Relief Valve O-Ring only (Pkg. of 10) Yes 1 Day(s) $7.49

3b

 SPX1082Z410 Relief Valve O-Ring only (Pkg. of 10) Yes 1 Day(s) $7.49

4

 CX250C Filter Head (Dome), w/Air Relief Valve Yes 1 Day(s) $59.67

5

 CX250F Filter Head Gasket Yes 1 Day(s) $25.85

6a

 CX250Z2S Tie Rod (C250), 18 9/32" Yes 1 Day(s) $59.42

6b

 CX500Z2S Tie Rod (C500), 28 3/32" Yes 1 Day(s) $68.27

6c

 CX750Z2S Tie Rod (C750, C100), 38 1/16" Yes 1 Day(s) $92.51

7d

 CX1000RE Cartridge Element (C100) Yes 1 Day(s) $168.89

7c

 CX750RE Cartridge Element (C750) Yes 1 Day(s) $135.18

7b

 CX500RE Cartridge Element (C500) Yes 1 Day(s) $99.74

7a

 CX250RE Cartridge Element (C250) Yes 1 Day(s) $61.06

8a

 CX250AA1 Filter Body w/Tie Rod Assembly (C250) Yes 1 Day(s) $310.39

8b

 CX500AA1 Filter Body w/Tie Rod Assembly (C500) Yes 1 Day(s) $312.23

8c

 CX750AA1 Filter Body w/Tie Rod Assembly (C750, C100) Yes 1 Day(s) $406.35

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

11

 ECX4077B1 Check Valve (optional) Yes 1 Day(s) $17.62

15

 ECX1325 Switch Assembly Yes 1 Day(s) $16.56

15

 ECX1325 Switch Assembly Yes 1 Day(s) $16.56

15

 ECX1325 Switch Assembly Yes 1 Day(s) $16.56
