SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

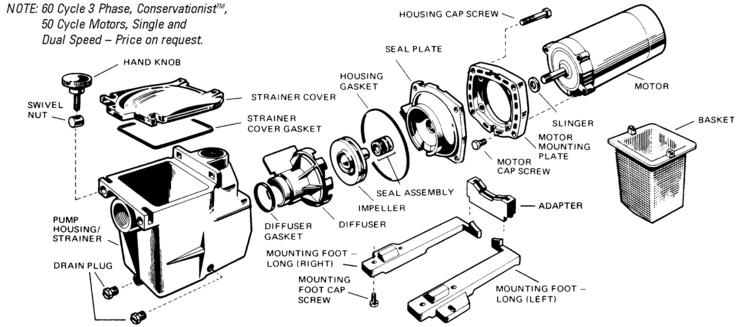

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Hayward
Model Name: Super Pump Models: SP2600X5, SP2605X7, SP2607X10, SP2610X15, SP2615X20, SP2621X25 (Max Rated)

Hayward Super-Pump-Models-SP2600X5-SP2605X7-SP26 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1600AA Pump Housing/Strainer, 1 1/2"" x 1 1/2"", w/Drain Plugs Yes 1 Day(s) $154.31

SPX1616B Diffuser, for 2 1/2 H.P. only Yes 1 Day(s) $23.16

SPX2600E5 Seal Plate, 1/2 thru 2 H.P. Yes 1 Day(s) $25.82

SPX1611E5 Seal Plate, for 2 1/2 H.P. only Yes 1 Day(s) $31.32

SPX2600C Impeller, for 1/2 H.P. Yes 1 Day(s) $18.87

SPX2605C Impeller, for 3/4 H.P. Yes 1 Day(s) $18.41

SPX2607C Impeller, for 1 H.P. Yes 1 Day(s) $19.19

SPX2610C Impeller, for 1 1/2 H.P. Yes 1 Day(s) $19.69

SPX2615C Impeller, for 2 H.P. Yes 1 Day(s) $24.27

SPX1621C Impeller, for 2 1/2 H.P. Yes 1 Day(s) $30.22

SPX1600Z1M Motor, 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115V) Yes 1 Day(s) $203.89

SPX1605Z1M Motor, 3/4 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $228.16

SPX1607Z1M Motor, 1 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $261.36

SPX1610Z1M Motor, 1 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $294.56

SPX1615Z1M Motor, 2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V) Yes 1 Day(s) $369.01

SPX2600B Diffuser, for 1/2 thru 2 H.P. Yes 1 Day(s) $19.37

SPX125F Slinger No N/A N/A N/A

SPX125Z44 Motor Cap Screw (Set of 4) No N/A N/A N/A

SPX1620AA Pump Housing/Strainer, 2"" x 2"", w/Drain Plugs Yes 1 Day(s) $156.55

SPX1600T Housing Gasket Yes 1 Day(s) $5.27

SPX1600R Diffuser Gasket Yes 1 Day(s) $2.26

SPX1600TRA Seal Assembly Kit (includes Seal Assembly, Housing and Diffuser Gaskets) Yes 1 Day(s) $19.15

SPX1600D Strainer Cover, clear Lexan® Yes 1 Day(s) $33.23

SPX1600S Strainer Cover Gasket Yes 1 Day(s) $6.21

SPX1600M Basket Yes 1 Day(s) $8.61

SPX1600PN Hand Knob Kit (includes Swivel Nut and Hand Knob) Yes 1 Day(s) $8.02

SPX1600V 1/4"" Drain Plug (1991 and prior) Yes 1 Day(s) $1.19

SPX2600G1 Mounting Foot w/ Adapter and Screws Yes 1 Day(s) $7.17

SPX1600Z52 Mounting Foot Cap Screw (Set of 2 - 1995 and prior, 2 sets required) Yes 1 Day(s) $2.87

SPX1600Z2 Seal Assembly Yes 1 Day(s) $12.41

SPX1600F5 Motor Mounting Plate Yes 1 Day(s) $24.27

SPX1600Z4 Housing Cap Screw Yes 1 Day(s) $2.87

SPX1620Z1M Motor, 2 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 230V) Yes 1 Day(s) $458.02
