SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

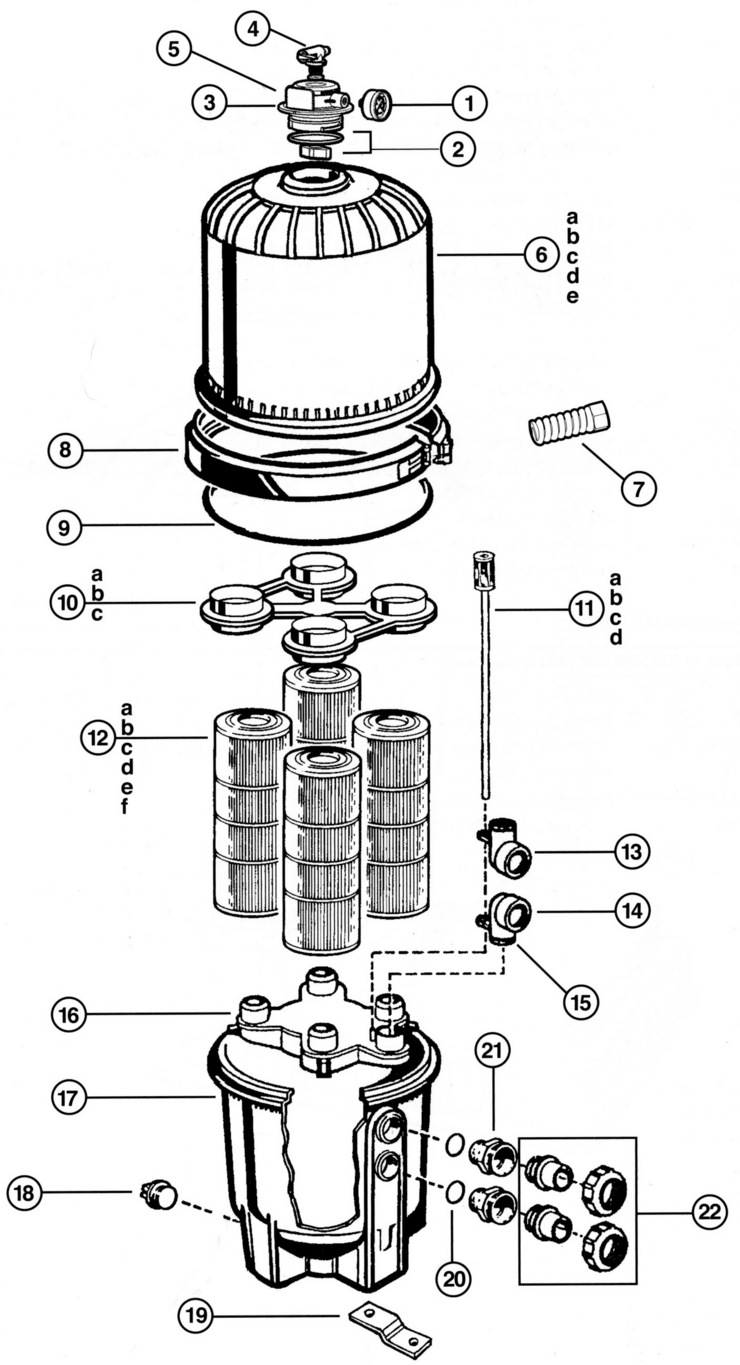

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Hayward

Model Name: SwimClear



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	ECX2712B1	Pressure Gauge	Yes	1 Day(s)	$12.41
1	ECX2712B1	Pressure Gauge	Yes	1 Day(s)	$12.41
1	ECX2712B1	Pressure Gauge	Yes	1 Day(s)	$12.41
2	DEX2420Z8A	O-Ring Kit (Set of 2)	Yes	1 Day(s)	$27.62
2	DEX2420Z8A	O-Ring Kit (Set of 2)	Yes	1 Day(s)	$27.62
5	DEX2420MAR	Manual Air Relief Assembly	No	N/A	N/A	N/A
5	DEX2420MAR	Manual Air Relief Assembly	No	N/A	N/A	N/A
6b	DEX3620BT	Filter Head	Yes	1 Day(s)	$295.00
6d	DEX6020BT	Filter Head	Yes	1 Day(s)	$349.95
6a	DEX2420BT	Filter Head	Yes	1 Day(s)	$285.99
6c	DEX4820BT	Filter Head	Yes	1 Day(s)	$364.57
6d	DEX6020BT	Filter Head	Yes	1 Day(s)	$349.95
6e	DEX7220BT	Filter Head	Yes	1 Day(s)	$354.00
6c	DEX4820BT	Filter Head	Yes	1 Day(s)	$364.57
6b	DEX3620BT	Filter Head	Yes	1 Day(s)	$295.00
6e	DEX7220BT	Filter Head	Yes	1 Day(s)	$354.00
6a	DEX2420BT	Filter Head	Yes	1 Day(s)	$285.99
7	DEX2420J1KIT	Clamp Spring Assembly Replacement Kit [includes: (a) washer w/small hole, (b) spring, (c) washer w/large hole, (d) brass sleeve	Yes	1 Day(s)	N/A	N/A
8	DEX2420J1	Clamp Assembly w/Spring Assembly	Yes	1 Day(s)	$194.71
8	DEX2420J1	Clamp Assembly w/Spring Assembly	Yes	1 Day(s)	$194.71
9	DEX2400K	Filter Tank O-Ring	Yes	1 Day(s)	$34.02
9	DEX2400K	Filter Tank O-Ring	Yes	1 Day(s)	$34.02
9	DEX2400K	Filter Tank O-Ring	Yes	1 Day(s)	$34.02
9	DEX2400K	Filter Tank O-Ring	Yes	1 Day(s)	$34.02
10a	CX2020DA	Top Closure Plate (C2020)	Yes	1 Day(s)	$47.57
10b	CX3020DA	Top Closure Plate (C3020 & C4020)	Yes	1 Day(s)	$30.22
10c	CX5020DA	Top Closure Plate (C5020)	Yes	1 Day(s)	$28.79
11b	CX3000Z3	Air Relief Tube w/Air Tube Screen (C3020/C3025)	Yes	1 Day(s)	$7.61
11a	CX800Z4A	Air Relief Tube with Air Tube Screen (C2020/C2025)	Yes	1 Day(s)	$6.69
11b	CX3000Z3	Air Relief Tube w/Air Tube Screen (C3020/C3025)	Yes	1 Day(s)	$7.61
11c	CX4000Z3	Air Relief Tube w/Air Tube Screen (C4020/C4025)	Yes	1 Day(s)	$8.12
11d	CX5000Z3	Air Relief Tube w/Air Tube Screen (C5020/C5025)	Yes	1 Day(s)	$6.94
11a	CX800Z4A	Air Relief Tube with Air Tube Screen (C2020/C2025)	Yes	1 Day(s)	$6.69
11c	CX4000Z3	Air Relief Tube w/Air Tube Screen (C4020/C4025)	Yes	1 Day(s)	$8.12
11d	CX5000Z3	Air Relief Tube w/Air Tube Screen (C5020/C5025)	Yes	1 Day(s)	$6.94
12f	CX1380RE	Replacement Element (C5520 Series)	Yes	1 Day(s)	$97.89
12e	CX1280XRE	Replacement Element (C5020/C5025)	Yes	1 Day(s)	$85.95
12d	CX875RE	Replacement Element (C4520 Series)	Yes	1 Day(s)	$72.77
12c	CX880XRE	Replacement Element (C4020/C4025)	Yes	1 Day(s)	$68.67
12b	CX580XRE	Replacement Element (C3020/C3025)	Yes	1 Day(s)	$55.10
12a	CX480XRE	Replacement Element (C2020/C2025)	No	N/A	$48.08
12e	CX1280XRE	Replacement Element (C5020/C5025)	Yes	1 Day(s)	$85.95
12c	CX880XRE	Replacement Element (C4020/C4025)	Yes	1 Day(s)	$68.67
12b	CX580XRE	Replacement Element (C3020/C3025)	Yes	1 Day(s)	$55.10
12d	CX875RE	Replacement Element (C4520 Series)	Yes	1 Day(s)	$72.77
12c	CX880XRE	Replacement Element (C4020/C4025)	Yes	1 Day(s)	$68.67
12a	CX480XRE	Replacement Element (C2020/C2025)	No	N/A	$48.08
12f	CX1380RE	Replacement Element (C5520 Series)	Yes	1 Day(s)	$97.89
12b	CX580XRE	Replacement Element (C3020/C3025)	Yes	1 Day(s)	$55.10
13	CX3000F1	Inlet Elbow	Yes	1 Day(s)	$58.59
14	CX3020FB	Outlet Elbow	Yes	1 Day(s)	$31.68
15	DEX360M	O-Ring	Yes	1 Day(s)	$4.91
15	DEX360M	O-Ring	Yes	1 Day(s)	$4.91
15	DEX360M	O-Ring	Yes	1 Day(s)	$4.91
16	CX3000C	Bottom Collector Manifold	Yes	1 Day(s)	$79.78
16	CX3000C	Bottom Collector Manifold	Yes	1 Day(s)	$79.78
16	CX3000C	Bottom Collector Manifold	Yes	1 Day(s)	$79.78
17	DEX2420AT	Filter Body-Taupe	Yes	1 Day(s)	$337.80
17	DEX2420AT	Filter Body-Taupe	Yes	1 Day(s)	$337.80
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
18	SP1022C	1 1/2" Drain Plug w/O-Ring	Yes	1 Day(s)	$3.58
19	DEX2420DCKIT	Strap Kit (includes: 2 Straps, 2 Screws, optional)	Yes	1 Day(s)	$19.82
19	DEX2420DCKIT	Strap Kit (includes: 2 Straps, 2 Screws, optional)	Yes	1 Day(s)	$19.82
20	SX220Z2	O-Ring	Yes	1 Day(s)	$5.85
20	SX220Z2	O-Ring	Yes	1 Day(s)	$5.85
21	DEX2420F	Bulkhead Fitting	Yes	1 Day(s)	$28.17
21	DEX2420F	Bulkhead Fitting	Yes	1 Day(s)	$28.17
22	DE2400PAK2CS	Plumbing Kit (includes: 2 O-Rings, 2 Slip Connectors, & 2 Locknuts)	Yes	1 Day(s)	$35.93
