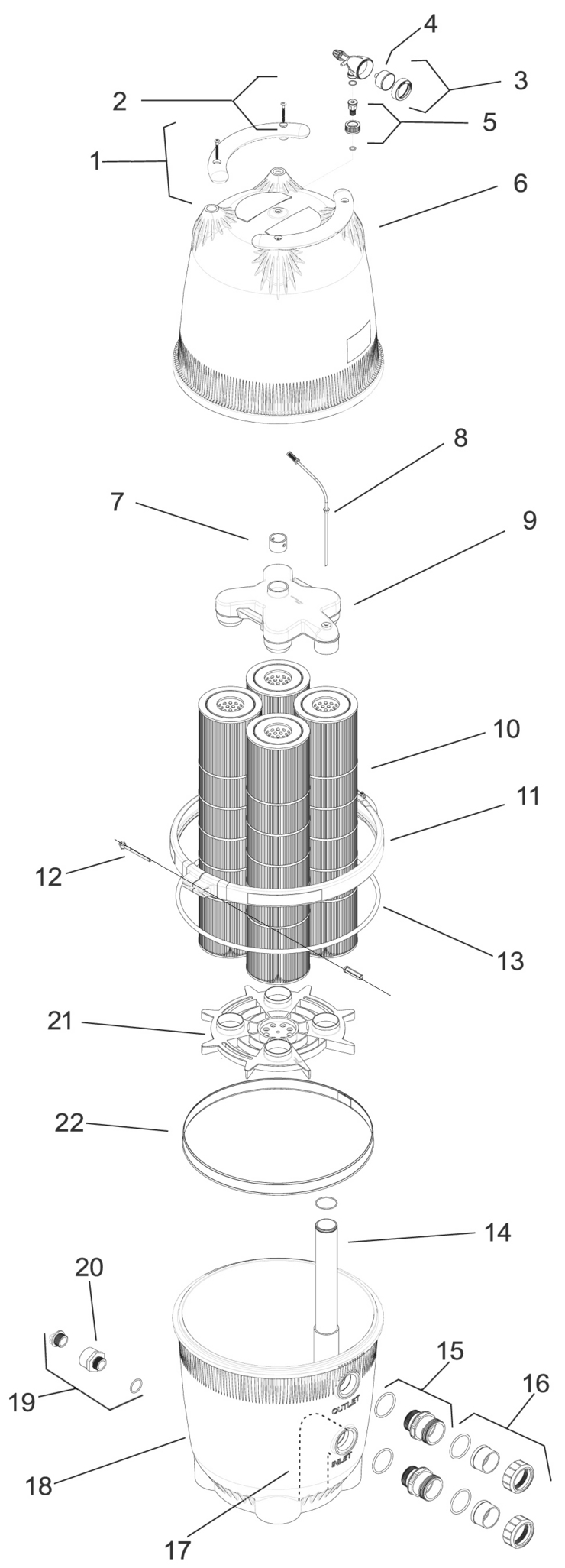

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Jandy

Model Name: CL Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	R0358000	O-ring Replacement Kit	Yes	1 Day(s)	$18.43
-	R0358000	O-ring Replacement Kit	Yes	1 Day(s)	$18.43
1	R0357100	Handle Assembly w/ hardware (set of 2)	Yes	1 Day(s)	$43.20
1	R0357100	Handle Assembly w/ hardware (set of 2)	Yes	1 Day(s)	$43.20
2	R0359900	Handle Hardware (set of 4)	Yes	1 Day(s)	$10.48
2	R0359900	Handle Hardware (set of 4)	Yes	1 Day(s)	$10.48
3	R0357200	Gauge/Air Release Assembly	Yes	1 Day(s)	$47.11
3	R0357200	Gauge/Air Release Assembly	Yes	1 Day(s)	$47.11
4	R0569600	Pressure Gauge	No	N/A	N/A	N/A
5	R0552000	Tank Adapter w/O-ring	Yes	1 Day(s)	$14.83
5	R0552000	Tank Adapter w/O-ring	Yes	1 Day(s)	$14.83
6	R0357300	Tank Top CL580	Yes	1 Day(s)	$354.16
6	R0554700	Tank Top CL340 & CL460	Yes	1 Day(s)	$322.79
6	R0357300	Tank Top CL580	Yes	1 Day(s)	$354.16
7	R0357700	Top Spacer	Yes	1 Day(s)	$11.77
8	R0358700	Breather Tube Assembly	Yes	1 Day(s)	$11.35
8	R0358700	Breather Tube Assembly	Yes	1 Day(s)	$11.35
9	R0357600	Manifold Assembly	Yes	1 Day(s)	$86.36
10	R0357900	CL 580 Filter Cartridge, 145 sq. ft. (4 required)	Yes	1 Day(s)	$209.37
10	R0554500	CL 340 Filter Cartridge, 85 sq. ft. (4 required)	Yes	1 Day(s)	$142.36
10	R0554600	CL 460 Filter Cartridge, 115 sq. ft. (4 required)	Yes	1 Day(s)	$166.08
11	R0357400	Tank Clamp Ring w/Knob Assembly	Yes	1 Day(s)	$354.16
11	R0357400	Tank Clamp Ring w/Knob Assembly	Yes	1 Day(s)	$354.16
12	R0357500	Clamp Ring Knob Assembly w/Threaded Rod and Retainer	Yes	1 Day(s)	$54.96
12	R0357500	Clamp Ring Knob Assembly w/Threaded Rod and Retainer	Yes	1 Day(s)	$54.96
13	R0357800	Tank O-ring	Yes	1 Day(s)	$43.20
13	R0357800	Tank O-ring	Yes	1 Day(s)	$43.20
14	R0358100	CL580 Outlet Tube/Elbow Assembly w/O-rings	Yes	1 Day(s)	$50.28
14	R0555100	CL460 & CL340 Outlet Tube/Elbow Assembly w/ O-rings	Yes	1 Day(s)	$36.65
14	R0358100	CL580 Outlet Tube/Elbow Assembly w/O-rings	Yes	1 Day(s)	$50.28
15	R0358200	Bulkhead Assembly w/O-ring	Yes	1 Day(s)	$47.11
15	R0358200	Bulkhead Assembly w/O-ring	Yes	1 Day(s)	$47.11
16	R0327300	Coupling Nuts w/ Flange and O-ring (set of 2)	Yes	1 Day(s)	$41.44
16	R0327300	Coupling Nuts w/ Flange and O-ring (set of 2)	Yes	1 Day(s)	$41.44
16	R0327300	Coupling Nuts w/ Flange and O-ring (set of 2)	Yes	1 Day(s)	$41.44
16	R0327300	Coupling Nuts w/ Flange and O-ring (set of 2)	Yes	1 Day(s)	$41.44
16	R0327300	Coupling Nuts w/ Flange and O-ring (set of 2)	Yes	1 Day(s)	$41.44
17	R0358400	Inlet Elbow w/O-ring	Yes	1 Day(s)	$31.38
17	R0358400	Inlet Elbow w/O-ring	Yes	1 Day(s)	$31.38
18	R0358600	Tank Bottom w/Drain Plug	Yes	1 Day(s)	N/A	N/A
18	R0358600	Tank Bottom w/Drain Plug	Yes	1 Day(s)	N/A	N/A
19	R0358800	Drain Plug w/O-ring	Yes	1 Day(s)	$30.15
19	R0358800	Drain Plug w/O-ring	Yes	1 Day(s)	$30.15
20	R0395500	Large Tank Drain Adapter w/O-ring	Yes	1 Day(s)	$16.11
21	R0358500	Filter Cartridge Support	Yes	1 Day(s)	$58.89
22	R0405200	Ring, Retaining	Yes	1 Day(s)	$69.12
