SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Jandy
Model Name: Check Valve

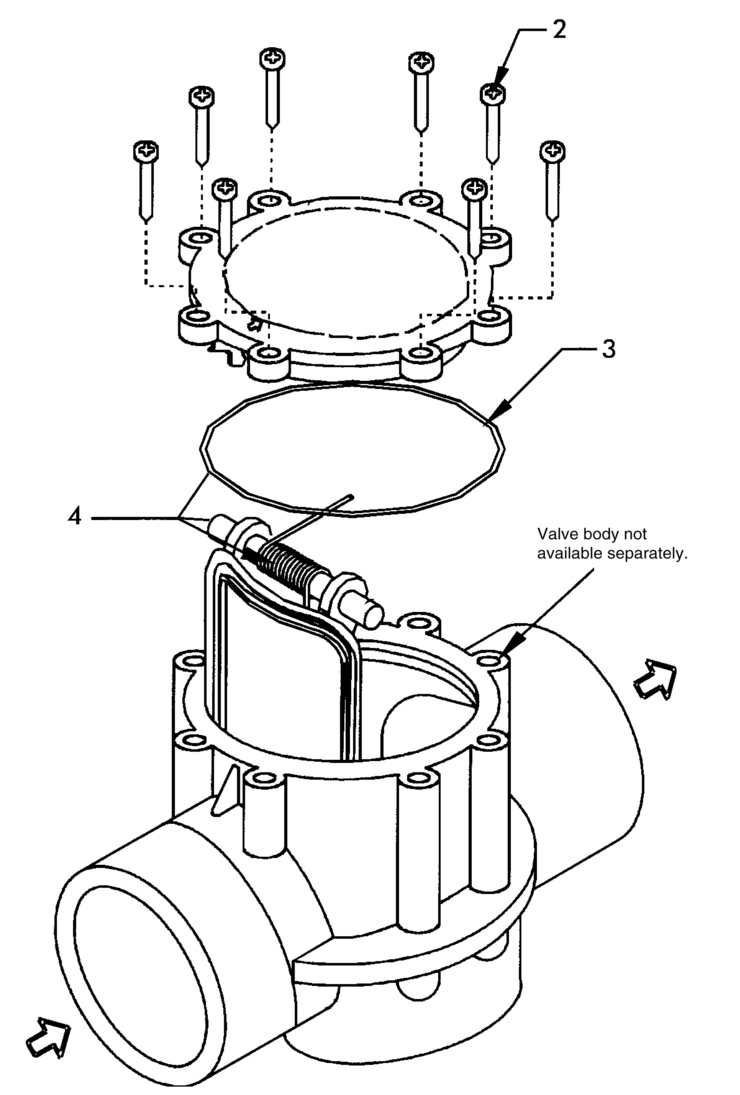

Jandy Check-Valve replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 1298 Screw, #14 x 3/4"", Valve Housing Yes 1 Day(s) $2.22

3

 1132 O-ring, -151, Valve Cover Yes 1 Day(s) $4.11

4

 7056 Cover w/Flapper Assembly, including Flapper Assembly, Pin, Cover Spring and O-ring Yes 1 Day(s) $35.84
