SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

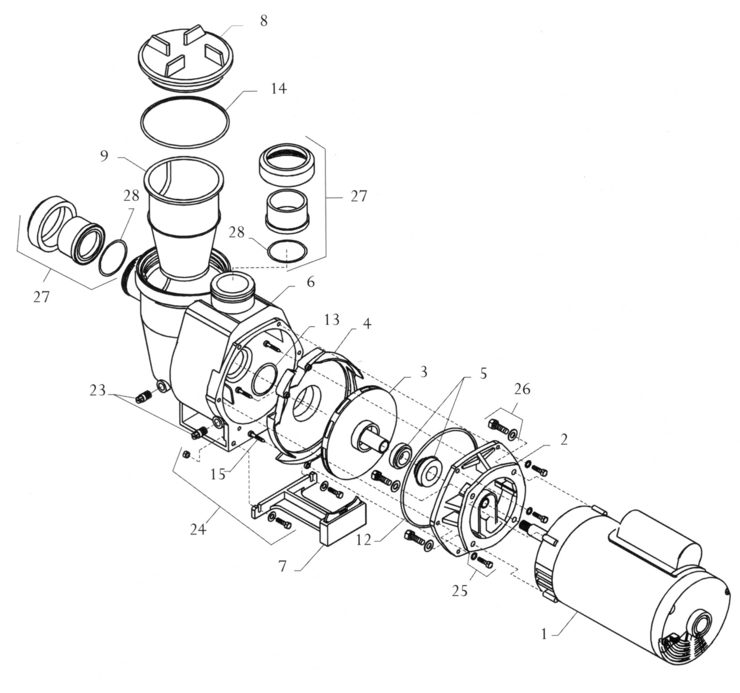

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Jandy
Model Name: HHP & HHPU Series

Jandy HHP-HHPU-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 R0341000 Hardware Set , Complete Yes 1 Day(s) $51.15

-

 R0340900 O-ring Set, Complete (6) Yes 1 Day(s) $44.03

1

 R0337701 Motor, single speed HHP/HHPU Yes 1 Day(s) $540.82

1

 R0337804 Motor, 2 speed HHP No N/A N/A N/A

1

 R0337803 Motor, 2 speed HHP Yes 1 Day(s) $819.98

1

 R0337705 Motor, single speed HHP/ Yes 1 Day(s) $976.99

1

 R0337704 Motor, single speed HHP/HHPU Yes 1 Day(s) $732.76

1

 R0337703 Motor, single speed HHP/HHPU Yes 1 Day(s) $662.99

1

 R0337702 Motor, single speed HHP/HHPU Yes 1 Day(s) $593.19

2

 R0337900 Mounting Bracket Yes 1 Day(s) $111.66

3

 R0338005 Impeller, HHP Yes 1 Day(s) $70.25

3

 R0338004 Impeller, HHP/HHPU Yes 1 Day(s) $64.12

3

 R0338003 Impeller, HHP/HHPU Yes 1 Day(s) $59.30

3

 R0338002 Impeller, HHP/HHPU No N/A N/A N/A

3

 R0338001 Impeller, HHP/HHPU Yes 1 Day(s) $49.73

4

 R0338101 Diffuser Yes 1 Day(s) $35.33

4

 R0338105 Diffuser Yes 1 Day(s) $40.99

5

 R0338200 Mechanical Seal Yes 1 Day(s) $19.21

6

 R0338305 Body, Pump Face Assembly HHP Yes 1 Day(s) $256.47

6

 R0338301 Body, Pump Face Assembly HHP Yes 1 Day(s) $205.57

7

 R0338400 Mounting Foot Assembly Yes 1 Day(s) $29.23

8

 R0338500 Pot Lid Yes 1 Day(s) $49.27

9

 R0338600 Pot Basket Yes 1 Day(s) $19.21

12

 R0338700 O-ring, -264, Body No N/A $15.29

13

 R0338801 O-ring, -330, Diffuser Yes 1 Day(s) $4.35

13

 R0338805 O-ring, -330, Diffuser Yes 1 Day(s) $5.23

14

 R0338900 O-ring, -359, Pot Lid Yes 1 Day(s) $13.96

15

 R0339000 Hardware Set (4), Diffuser Mntg. (a) Yes 1 Day(s) $20.93

23

 R0339100 Drain Plugs No N/A N/A N/A

24

 R0339200 Hardware Set (2), Foot Mntg. (a) Yes 1 Day(s) $5.66

25

 R0339300 Hardware Set (6), Bracket Mntg. (a) Yes 1 Day(s) $12.64

26

 R0339400 Hardware Set (4), Motor Mntg. (a) Yes 1 Day(s) $10.91

27

 R0339500 Coupling Nut Set Yes 1 Day(s) $42.97

28

 R0339600 O-ring, (2), Coupling Nut Yes 1 Day(s) $7.42
