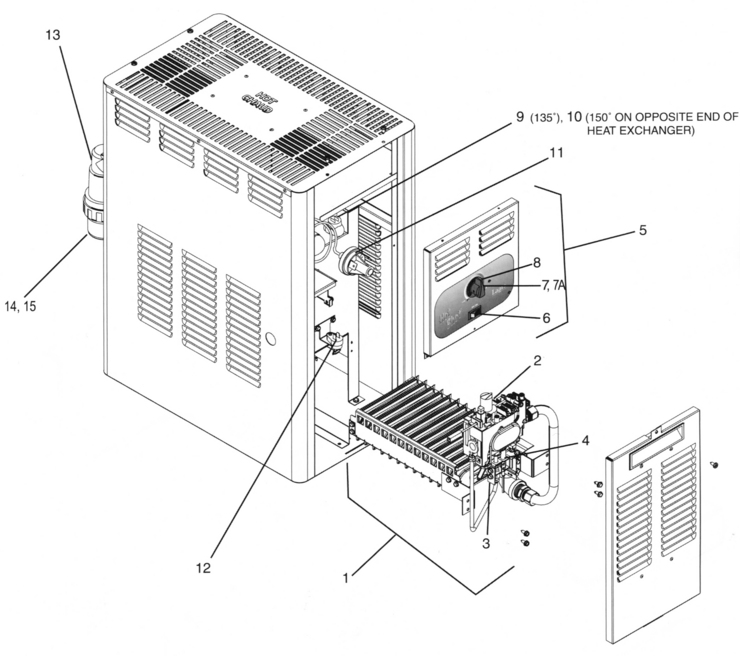

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Jandy

Model Name: Laars Hot Shot Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	R0335800	Touch-up Spray Paint, Pewter	Yes	1 Day(s)	$42.46
1	R0367800	Burner Tray Assembly, Natural Gas	Yes	1 Day(s)	$889.77
1	R0367900	Burner Tray Assembly, LP Gas	Yes	1 Day(s)	$889.77
2	R0368000	Gas Valve, Natural Gas	Yes	1 Day(s)	$212.84
2	R0368100	Gas Valve, LP Gas	Yes	1 Day(s)	$212.84
3	R0368200	Pilot Assembly, Natural Gas	Yes	1 Day(s)	$99.47
3	R0368300	Pilot Assembly, LP Gas	Yes	1 Day(s)	$99.47
4	W0036901	Pilot Generator	Yes	1 Day(s)	$59.30
5	R0367700	Thermostat Assembly	Yes	1 Day(s)	$263.46
6	R0099800	On/Off Switch	Yes	1 Day(s)	$19.62
7A	E0216200	Temperature Sensor	Yes	1 Day(s)	$54.72
7	R0010700	Temperature Control Knob	Yes	1 Day(s)	$4.35
8	10583100	Stop Plate, ""Temp-Lok""	Yes	1 Day(s)	$0.75
9	R0368400	High Limit Switch, 135°F	Yes	1 Day(s)	$44.03
10	R0368500	High Limit Switch, 150°F (Not Shown)	Yes	1 Day(s)	$40.99
11	R0013200	Pressure Switch, 2 PSI	Yes	1 Day(s)	$70.66
12	R0012200	Fusible Link	Yes	1 Day(s)	$7.86
13	R0368600	I/O Header Assy	Yes	1 Day(s)	$157.00
14	R0385900	Coupling Kit	Yes	1 Day(s)	$41.44
15	R0386100	O-Ring Kit	Yes	1 Day(s)	$14.95
